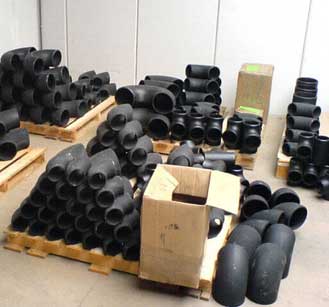

Carbon Steel Fittings

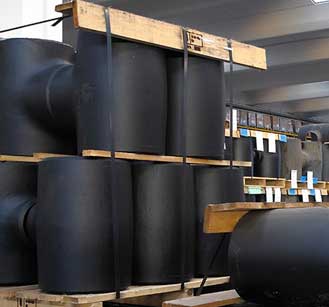

Carbon Steel Buttweld Fittings

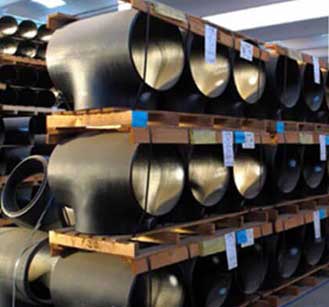

Killed CS Seamless Fitting
| Standard Specification : | Carbon Steel Fittings |
| Thickness: | View Our Thickness: Schedule 5S, SCH10, SCH20, SCH10, SCH20, SCH30, SCHTD, SCH40, SCH60, XS, SCH80, SCH100, SCH120, SCH140, SCH160. |
| Standard: | MSS-SP-43 Type B Fittings, ANSI B16.28 Fittings, JIS B2312 Fittings, JIS B2313 Fittings, ANSI B16.9 Fittings, MSS-SP-43 Type A Fittings, MSS-SP-43 Type b |
| Dimensions Class: | 2000#, 3000#, 6000#, 9000# |
| Coating Fitting Faces : | Cold and Hot Dip Galvanized, Zinc Plated, Yellow Transparent, Oil Black Paint, Anti-rust Paint |
| Carbon Steel Fittings Machining Equipment: | Press machine, electric bevelling machine, Bending machine, Pushing Machine, Sand-blasting machine etc |
| Rating Pressure: | Pressure Rating Of: 3000 LBS, 6000 LBS, 9000 LBS |
| Check Sizes: | (SMLS UPTO 24”) 1/2” TO 36” (Buttweld 8” TO 36” ) |
| Application: | Nuclear Power Plant Oil And Gas Industry Chemical Industry Natural Gas Industry Fabrication Industry Water Pipeline Industry |
| Element | Content (%) |
| Iron, Fe | Balance |
| Chromium, Cr | 18-20 |
| Nickel, Ni | 11-15 |
| Molybdenum, Mo | 3-4 |
| Manganese, Mn | 2 |
| Silicon, Si | 1 |
| Phosphorous, P | 0.045 |
| Carbon, C | 0.03 |
| Sulfur, S | 0.03 |
| Properties | Metric | Imperial |
| Tensile strength | 595 MPa | 86300 psi |
| Yield strength | 260 MPa | 37700 psi |
| Modulus of elasticity | 200 GPa | 29000 ksi |
| Poisson’s ratio | 0.27-0.30 | 0.27-0.30 |
| Elongation at break (in 50 mm) | 55% | 55% |
| Hardness, Rockwell B | 85 | 85 |
| Material | Fttg | ||||
| Carbon Steels | A234 Gr WPA | ||||
| A234 Gr WPB | |||||
| A234 Gr WPC | |||||
| Carbon Steels Alloy High-Temp |
A234 Gr WP1 | ||||
| A234 Gr WP11 | |||||
| A234 Gr WP12 | |||||
| A234 Gr WP22 | |||||
| A234 Gr WP5 | |||||
| A234 Gr WP9 | |||||
| Carbon Steels Alloy Low-Temp |
A420 Gr WPL6 | ||||
| A420 Gr WPL3 | |||||
| Material | Fttg | ||||

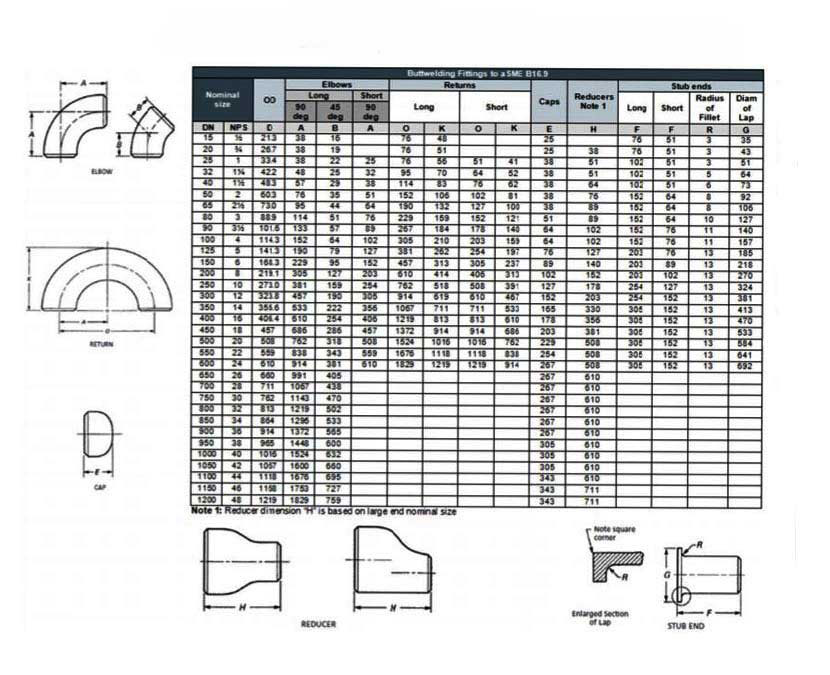

Check Carbon Fittings Size Chart
| Products | Size |
| Carbon Steel Cup | 1/2'' NB to 14'' NB |
| Carbon Steel Stub Ends | 1/2'' NB to 14'' NB |
| Carbon Steel Socket Weld | Upto 2'' NB |
| Carbon Steel Nipple | Upto 4'' |
| Carbon Steel Coupling | Upto 4''NB |
| Carbon Steel Elbow | 1/2'' NB to 14'' NB |
| Carbon Steel Reducer | 1'' NB to 14'' NB |
| Carbon Steel Tee | 1'' NB to 14'' NB |
