ASTM A234 WPB Elbow And 45 Deg Or 90 Degree Long Radius Pipe Bend Manufacturer In India

  • Home
  • ASTM A234 WPB Elbow

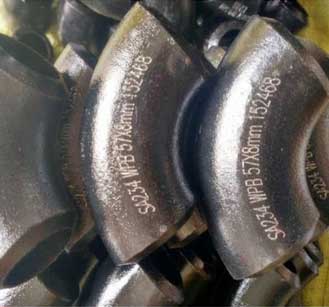

ASTM A234 WPB Elbow

ASTM A234 WPB Elbow

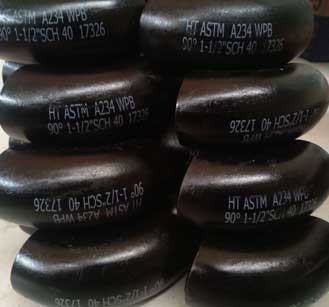

Carbon Steel A234 WPB SCH 80 Elbow

Carbon Steel A234 WPB SCH 80 Elbow

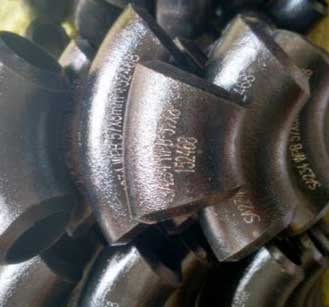

Buttweld SA234 WPB Elbow

Buttweld SA234 WPB Elbow



ASME B16.11 A234 Sr Elbow Equivalent


Pipe Pipe Elbow Fitting Flanges Valves Bolts & Nuts
A106 Gr A A234 Gr WPA elbow A105 A216 Gr WCB A193 Gr B7
A194 Gr 2H
A106 Gr B ASTM A234 gr WPB elbow A105 A216 Gr WCB
A106 Gr C SA234 WPB Elbow A105 A216 Gr WCB

SA234 Pipe Elbow Specification


Standard Specification : ASTM A234 WPB Elbow
Fitting Machining Equipment: Press machine, electric bevelling machine, Bending machine, Pushing Machine, Sand-blasting machine etc
Rating Pressure: Pressure Rating Of: 3000 LBS, 6000 LBS, 9000 LBS
Check Sizes: (SMLS UPTO 24”)
1/2” TO 36”
(Buttweld 8” TO 36” )
Thickness: View Our Thickness: Schedule 5S, Schedule10, Schedule20, Schedule10, SCH20, SCH30, SCHTD, SCH40, SCH60, XS, SCH80, SCH100, SCH120, SCH140, SCH160.
Standard: JIS B2313, ANSI B16.9, MSS-SP-43 Type A, MSS-SP-43 Type B, ANSI B16.28, JIS B2312, MSS-SP-43 Type b
Application: Natural Gas Industry
Oil And Gas Industry
Chemical Industry
Nuclear Power Plant
Fabrication Industry
Water Pipeline Industry
Dimensions Class: 2000#, 3000#, 6000#, 9000#
Coating Fitting Faces : Zinc Plated, Yellow Transparent, Oil Black Paint, Anti-rust Paint, Cold and Hot Dip Galvanized

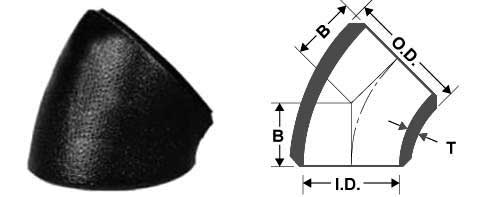

Carbon Steel A234 WPB SCH 80 Elbow Dimensions Chart


Carbon Steel A234 WPB SCH 80 Elbow Dimensions Chart

NPS Outside
Dia.		 Inside
Dia.		 Wall
Thick.		 Center
To End		 Pipe
Schedule		 Weight
Pounds
1/2 0.84 0.622 0.109 0.62 40 0.09
3/4 1.05 0.824 0.113 0.75 40 0.1
1 1.32 1.05 0.133 0.88 40 0.22
1 1/4 1.66 1.38 0.14 1 40 0.33
1 1/2 1.9 1.61 0.145 1.12 40 0.43
2 2.38 2.07 0.154 1.38 40 0.85
2 1/2 2.88 2.47 0.203 1.75 40 1.7
3 3.5 3.07 0.216 2 40 2.5
3 1/2 4 3.55 0.226 2.25 40 3.4
4 4.5 4.03 0.237 2.5 40 4.5
5 5.56 5.05 0.258 3.12 40 7.5
6 6.62 6.06 0.28 3.75 40 11.7
8 8.62 7.98 0.322 5 40 23.3
10 10.75 10.02 0.365 6.25 40 40.9
12 12.75 12 0.375 7.5 * 61.4
14 14 13.25 0.375 8.75 30 78.1
16 16 15.25 0.375 10 30 101
18 18 17.25 0.375 11.25 * 128
20 20 19.25 0.375 12.5 20 159
24 24 23.25 0.375 15 20 231
30 30 29.25 0.375 18.5 * 358
36 36 35.25 0.375 22.25 * 518
42 42 41.25 0.375 26 * 707
48 48 47.25 0.375 29.88 * 1,000


Types Of CS Buttweld SA234 WPB Elbow


A234 WPB Buttweld Elbow 45 Degree

A234 WPB Buttweld Elbow 45 Degree

Carbon Steel A234 90 Degree Pipe Elbow

Carbon Steel A234 90 Degree Pipe Elbow

CS A234 90 Deg Pipe Fittings Elbow

CS A234 90 Deg Pipe Fittings Elbow

A234 Buttweld Elbow 180 Degree

A234 Buttweld Elbow 180 Degree

SA234 WPB Elbow

SA234 WPB Elbow

Grade ASTM A234 WPB Elbow

Grade ASTM A234 WPB Elbow

Carbon Steel Grade sa234 wpb elbow

Carbon Steel Grade sa234 wpb elbow

ANSI B16.9 SA234 wpb elbow

ANSI B16.9 SA234 elbow

ASTM A234 gr WPB Elbow 45 degree Short Radius

ASTM A234 WPB gr Elbow 45 degree Short Radius

A234 Carbon Steel SMLS Elbow

A234 Carbon Steel SMLS Elbow

Carbon Steel ASTM A234 gr WPB 3D Elbow

Carbon Steel ASTM A234 gr WPB 3D Elbow

Black Steel A234 WPB Buttweld Elbow

Black Steel A234 WPB Buttweld Elbow


A234 WPB SCH 80 Long Radius Elbow Weight Chart


NPS OD Inside
Dia.		 Wall
Thick.		 Center
To End		 Pipe
Sch		 Weight
Pound
1/2 0.84 0.546 0.147 0.62 80 0.15
3/4 1.05 0.742 0.154 0.75 80 0.16
1 1.32 0.957 0.179 0.88 80 0.28
1 1/4 1.66 1.28 0.191 1 80 0.45
1 1/2 1.9 1.5 0.2 1.12 80 0.61
2 2.38 1.94 0.218 1.38 80 1.2
2 1/2 2.88 2.32 0.276 1.75 80 2
3 3.5 2.9 0.3 2 80 3.3
3 1/2 4 3.36 0.318 2.25 80 4.5
4 4.5 3.83 0.337 2.5 80 6.2
5 5.56 4.81 0.375 3.12 80 10.5
6 6.62 5.76 0.432 3.75 80 17
8 8.62 7.63 0.5 5 80 34.3
10 10.75 9.75 0.5 6.25 60 53.5
12 12.75 11.75 0.5 7.5 * 77.6
14 14 13 0.5 8.75 * 100
16 16 15 0.5 10 40 134
18 18 17 0.5 11.25 * 170
20 20 19 0.5 12.5 30 209
24 24 23 0.5 15 * 302
30 30 29 0.5 18.5 20 475.1
36 36 35 0.5 22.25 20 686.1
42 42 41 0.5 26 * 936.1
48 48 47 0.5 29.88 * 1250

Elbow 90 A234 WPB Chemical Composition


Grade C Mn P S Si Cr Mo Ni Cu V Nb
WPB 0.3 0.29-1.06 0.05 0.058 0.1min 0.4 0.15 0.4 0.4 0.08 0.02
WPC 0.35 0.29-1.06 0.05 0.058 0.1min 0.4 0.15 0.4 0.4 0.08 0.02
WP11 CL1 0.05-0.15 0.30-0.60 0.03 0.03 0.50-1.00 1.00-1.50 0.44-0.65 - - - -
WP11 CL2/3 0.05-0.20 0.30-0.80 0.04 0.04 0.50-1.00 1.00-1.50 0.44-0.65 - - - -

SA234 WPB Reducer Elbow Mechanical


Tensile Requirements WPB WPC, WP11CL2 WP11CL1 　WP11CL3
Tensile Strength, min, ksi[MPa] 60-85 70-95 60-85 　75-100
(0.2% offset or 0.5% extension-under-load) [415-585] [485-655] [415-585] 　[520-690]
Yield Strength, min, ksi[MPa] 32 40 30 45
[240] [275] [205] [310]
