| Standard Specification : | Alloy Steel Fittings |
| Thickness: | View Our Thickness: Schedule 5S, SCH10, SCH20, SCH10, SCH20, SCH30, SCHTD, SCH40, SCH60, XS, SCH80, SCH100, SCH120, SCH140, SCH160. |
| Standard: | JIS B2313 Fittings, ANSI B16.9 Fittings, MSS-SP-43 Type A Fittings, MSS-SP-43 Type b Fittings, MSS-SP-43 Type B Fittings, ANSI B16.28 Fittings, JIS B2312 Fittings |
| Dimensions Class: | 2000#, 3000#, 6000#, 9000# |
| Alloy Steel Fittings Coating Faces : | Yellow Transparent, Oil Black Paint, Anti-rust Paint, Cold and Hot Dip Galvanized, Zinc Plated |
| Fitting Machining Equipment: | Bending machine, Pushing Machine, Sand-blasting machine, Press machine, electric bevelling machine etc |
| Rating Pressure: | Pressure Rating Of: 3000 LBS, 6000 LBS, 9000 LBS |
| Check Sizes: | (SMLS UPTO 24”) 1/2” TO 36” (Buttweld 8” TO 36” ) |
| Application: | Water Pipeline Industry Chemical Industry Nuclear Power Plant Natural Gas Industry Fabrication Industry Oil And Gas Industry |
| Products | Size |

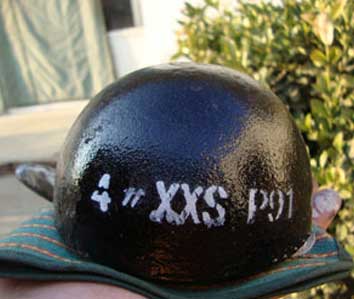

| Annealed Alloy Steel Cups | 1/2'' NB to 14'' NB |
| Normalized Alloy Steel Stub Ends | 1/2'' NB to 14'' NB |
| Scm420 Chromoly Alloy Steel Socket Weld | Upto 2'' NB |
| 4142 Chromoly Alloy Steel Nipple | Upto 4'' |
| 4140 Low Alloy Steel Coupling | Upto 4''NB |

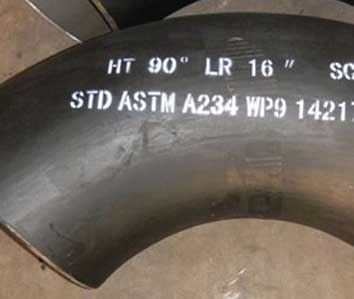

| Chromoly Alloy Steel Elbow | 1/2'' NB to 14'' NB |

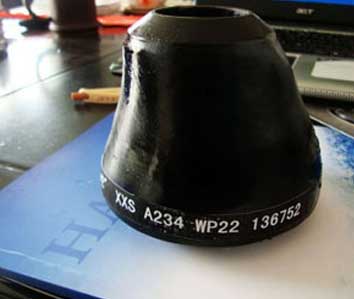

| Cast Alloy Steel Reducer | 1'' NB to 14'' NB |
| Chromium Alloy Steel Tee | 1'' NB to 14'' NB |
| NPS | AS 90 Deg Elbows | AS 45 Deg Elbows | AS 180 Deg Return Long Radius | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Long Radius | Short Radius | 3R | Long Radius | 3R | STD | XS | ||||||||
| STD | XS | SCH. 160 | XXS | STD | XS | STD | XS | STD | XS | STD | XS | |||
| ½ | .18 | .25 | * | * | * | * | * | * | .09 | .19 | * | * | .35 | * |
| ¾ | .19 | .25 | * | * | * | * | * | * | .09 | .19 | * | * | .40 | .65 |
| 1 | .40 | .50 | .60 | .75 | .25 | * | * | * | 0.25 | .31 | * | * | .75 | 1.00 |
| 1¼ | .60 | .90 | 1.00 | 1.38 | .4 | * | * | * | 0.38 | .50 | * | * | 1.25 | 1.75 |
| 1½ | .90 | 1.15 | 1.80 | 1.50 | .56 | .75 | * | * | .40 | .69 | * | * | 1.88 | 2.39 |
| 2 | 1.60 | 2.20 | 3.25 | 3.50 | 1.00 | 1.50 | 3.00 | 4.00 | .81 | 1.19 | 1.5 | 2.1 | 3.23 | 4.40 |
| 2½ | 3.25 | 4.00 | 5.13 | 7.00 | 2.13 | 2.80 | 6.00 | 8.00 | 1.75 | 2.13 | 3.00 | 4.00 | 6.50 | 8.00 |
| 3 | 5.00 | 6.50 | 8.50 | 11.0 | 3.00 | 4.25 | 10.0 | 13.0 | 2.63 | 3.50 | 5.00 | 7.00 | 10.25 | 13.00 |
| 3½ | 6.75 | 8.35 | * | 16.0 | 4.50 | 6.00 | 13.0 | 18.0 | 3.50 | 4.50 | 7.00 | 9.00 | 13.00 | 16.75 |
| 4 | 9.00 | 13.5 | 18.0 | 20.0 | 6.25 | 8.50 | 18.0 | 25.0 | 4.50 | 6.10 | 9.00 | 13.0 | 18.5 | 25.0 |
| 5 | 15.0 | 22.0 | 32.0 | 36.0 | 9.60 | 14.0 | 29.0 | 43.0 | 7.50 | 10.7 | 15.0 | 22.0 | 30.0 | 44.0 |
| 6 | 24.5 | 35.0 | 57.0 | 65.0 | 18.0 | 23.0 | 45.0 | 70.0 | 12.0 | 17.5 | 23.0 | 35.0 | 50.0 | 70.0 |
| 8 | 50.0 | 71.0 | 120 | 118 | 34.0 | 47.5 | 90.0 | 140 | 23.0 | 35.0 | 45.0 | 70.0 | 95.0 | 142 |
| 10 | 88.0 | 107 | 260 | * | 58.0 | 70.0 | 159 | 218 | 43.0 | 53.0 | 80.0 | 109 | 117 | 215 |
| 12 | 125 | 160 | 450 | * | 80.0 | 104 | 233 | 310 | 62.0 | 84.0 | 117 | 155 | 230 | 320 |
| 14 | 160 | 205 | 572 | * | 105 | 140 | 298 | 400 | 80.0 | 100 | 149 | 200 | 325 | 400 |
| 16 | 206 | 276 | * | * | 132 | 174 | 390 | 520 | 100 | 135 | 195 | 260 | 412 | 550 |
| 18 | 260 | 340 | * | * | 167 | 219 | 495 | 660 | 126 | 167 | 248 | 330 | 510 | 690 |
| 20 | 320 | 420 | * | * | 210 | 275 | 610 | 810 | 160 | 206 | 305 | 405 | 640 | 830 |
| 22 | 394 | 520 | * | * | * | * | 735 | 980 | 197 | 260 | 368 | 490 | 787 | 1040 |
| 24 | 460 | 600 | * | * | 298 | 392 | 875 | 1170 | 238 | 300 | 438 | 585 | 890 | 1200 |
| 26 | 550 | 729 | * | – | – | – | 1030 | 1370 | 275 | 365 | 515 | 685 | – | – |
| 30 | 734 | 975 | – | – | – | – | 1370 | 1830 | 367 | 488 | 685 | 915 | – | – |
| 36 | 1062 | 1412 | – | – | – | – | 1970 | 2630 | 531 | 706 | 985 | 1315 | – | – |
WPB B,C,D,E, |

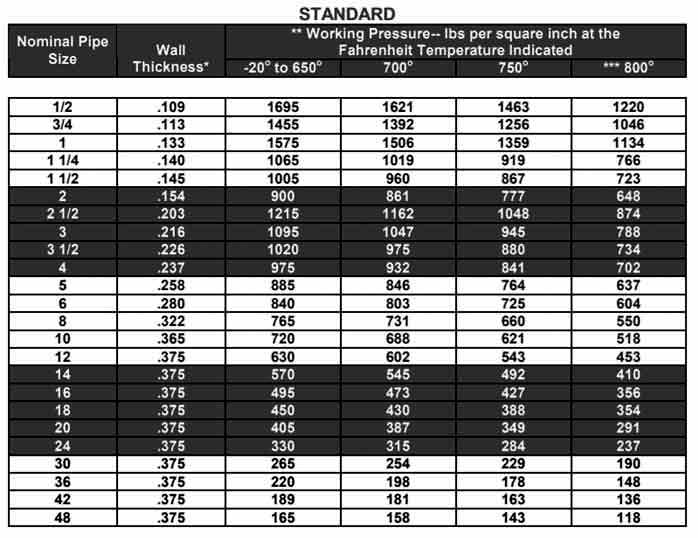

WPC C,D,E, | WP11 CL1 | WP11 CL2, | WP11 CL3 | WP22 CL1 | WP22 CL3 | WP5 CL1, | WP5 CL3 | |
|---|---|---|---|---|---|---|---|---|---|
| Carbon | 0.3 | 0.35 | 0.05–0.15 | 0.05–0.20 | 0.05–0.20 | 0.05–0.15 | 0.05–0.15 | 0.15 | 0.15 |
| Manganese | 0.29–1.06 | 0.29–1.06 | 0.30–0.60 | 0.30–0.80 | 0.30–0.80 | 0.30–0.60 | 0.30–0.60 | 0.30–0.60 | 0.30–0.60 |
| Phosporus | 0.05 | 0.05 | 0.03 | 0.04 | 0.04 | 0.04 | 0.04 | 0.04 | 0.04 |
| Sulfur | 0.058 | 0.058 | 0.03 | 0.04 | 0.04 | 0.04 | 0.04 | 0.03 | 0.03 |
| Silicon | 0.10 min | 0.10 min | 0.50–1.00 | 0.50–1.00 | 0.50–1.00 | 0.5 | 0.5 | 0.5 | 0.5 |
| Chromium | 0.4 | 0.4 | 1.00–1.50 | 1.00–1.50 | 1.00–1.50 | 1.90–2.60 | 1.90–2.60 | 4.0–6.0 | 4.0–6.0 |
| Molybdenum | 0.15 max | 0.15 max | 0.44–0.65 | 0.44–0.65 | 0.44–0.65 | 0.87–1.13 | 0.87–1.13 | 0.44–0.65 | 0.44–0.65 |
| Nickel | 0.4 | 0.4 | |||||||
| Copper | 0.4 | 0.4 | |||||||
| Others | Vanadium 0.08 | Vanadium 0.08 |
| Gr. | Tensile Strength, min. ksi[MPa] | Yield Strength, min. ksi[MPa] | Elongation, min. % | |
| Longitudinal | Transverse | |||
| WP1 | 55-80[380-550] | 30[205] | 20 | 13 |
| WP12 CL1 | 60[415] | 32[220] | 22 | 14 |
| WP12 CL2 | 70[485] | 40[275] | 22 | 14 |
| WP11 CL1 | 60[415] | 30[205] | 22 | 14 |
| WP11 CL2 | 70[485] | 40[275] | 22 | 14 |
| WP11 CL3 | 75[520] | 45[310] | 22 | 14 |
| WP22 CL1 | 60[415] | 30[205] | 22 | 14 |
| WP22 CL3 | 75[520] | 45[310] | 22 | 14 |
| WP24 | 85[585] | 60[415] | 20 | - |
| WP5 CL1 | 60[415] | 30[205] | 22 | 14 |
| WP5 CL3 | 75[520] | 45[310] | 22 | 14 |
| WP9 CL1 | 60[415] | 30[205] | 22 | 14 |
| WP9 CL3 | 75[520] | 45[310] | 22 | 14 |
| WPR | 63-99[435-605] | 46[315] | 20 | - |
| WP91 | 90[620] | 60[415] | 20 | 13 |
| WP911 | 90-120[620-840] | 64[440] | 20 | 13 |
| WP92 | 90-120[620-840] | 64[440] | 20 | 13 |
