ASME B16.9 End Cap Dimensions And Weight Chart

  • Home
  • ASME B16.9 End Cap
ASME B16.9 End Cap

ASME B16.9 End Cap

Stainless Steel Pipe Cap

Stainless Steel Pipe Cap

Pipe End Cap Fitting

Pipe End Cap Fitting


Check Buttweld Pipe End Cap Fitting Price List.


SR NO Description PRICE PAR PICE IN (USD$)
1 16 in. Schedule 10, BW, Cap, ASTM A234 WPB Carbon Steel ASME B16.9 / ANSI B16.9 $23.56
2 4 in, 8 in. Schedule 40 304L, Cap Buttweld, ASTM A403 F304 Stainless Steel ASME B16.9 / ANSI B16.9 $28.65

Stainless Steel Pipe Cap Specification


Specification : ASME B16.9 End Cap
Connection Type : Welding
Industries For Use : Nuclear Power Plant
Oil And Gas Industry
Petrochemical Industry
Size Chart : SLMS BW Cap : To 1/2″ – 10″
Weld Pipe Cap : To 1/2″ – 48″
Pipe End Cap Fitting Type : SMLS / Welded Fitting / BW / Fabricated Fittings / ERW
Manufacturers Process : Push, Press, forge, Cast, Marking, Packing In Boxes For Sale.
Bending Radius : Radius = 1D, 2D, 3D, 5D, 6D, 8D, 10D
Size Range : ½" NB to 24" NB in Schedule 10s, Schedule40s, Schedule 80s, Schedule 160s
Standard : ASME B16.9, BS10, ANSI B16.28, ASME B16.25, MSS SP-75 DIN2605, JISB2312, JISB2313, ASME B16.47, ASME B16.38, MSS-SP-43, JISB2311, BS4504, BS4504, BS1560, BS, GB, ISO, DIN
Origin And Mills : Russian, India, Japanese, USA
ASME B16.9 End Cap Thickness :: SCH10, 20, 30, STD 40, 60, XS, 80, 100, 120, 140

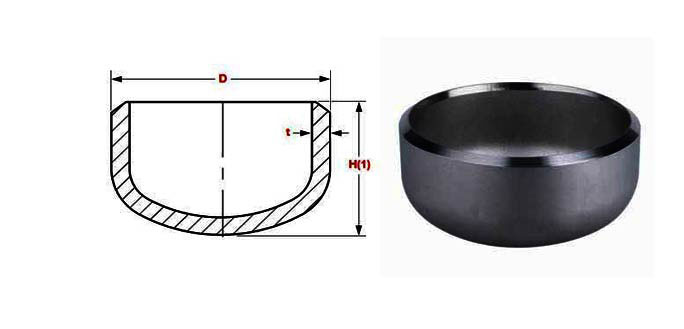

Exhaust Pipe End Cap Dimensions In MM


Exhaust Pipe End Cap Dimensions In MM

Normal Pie Size O.D.
D		 LENGTH
H		 LENGTH
H1
1/2 21.3 25 25
3/4 26.7 25 25
1 33.4 38 38
1.1/4 42.2 38 38
1.1/2 48.3 38 38
2 60.3 38 44
2.1/2 73 38 51
3 88.9 51 64
3.1/2 101.6 64 76
4 114.3 64 76
5 141.3 76 89
6 168.3 89 102
8 219.1 102 127
10 273 127 152
12 323.8 152 178
14 355.6 165 191
16 406.4 178 203
18 457 203 229
20 508 229 254
22 559 254 254
24 610 267 305
26 660 267 …
28 711 267 …
30 762 267 …
32 813 267 …
34 864 237 …
36 914 267 …
38 965 305 …
40 1016 305 …
42 1067 305 …
44 1118 343 …
46 1168 343 …
48 1219 343 …

Galvanized Pipe End Cap Weight Chart


Normal Pipes Size STD XS Schedule 160 XXS
1 0.09 0.14 0.18 0.23
1.1/4 0.14 0.18 0.23 0.34
1.1/2 0.18 0.23 0.27 0.41
2 0.27 0.34 0.57 0.68
2.1/2 0.41 0.45 0.79 1.13
3 0.68 0.79 1.32 1.81
3.1/2 0.91 1.13 – 2.72
4 1.13 1.36 2.68 3.4
5 2.04 2.49 4.54 5.44
6 2.95 4.08 6.8 8.16
8 5.44 7.26 14.06 13.61
10 9.07 11.34 25.85 –
12 13.61 16.33 43.09 –
14 16.33 20.41 – –
16 18.14 24.49 – –
18 24.49 32.66 – –
20 34.02 39.01 – –
22 42.64 56.7 – –
24 43.54 58.97 – –
26 53.98 72.12 – –
30 78.02 103.87 – –
NPS STD XS SCH 160 XXS

Available Types Of ANSI B16.9 Cap


1/2 inch. Sch 40 End Cap Aluminium

1/2 inch. Sch 40 End Cap Aluminium

1/2 inch. Brass Pipe End Cap

1/2 inch. Brass Pipes End Cap

2 inch. Weld Pipe End Cap Copper

2 inch. Weld Pipe End Cap Copper

ASTM A403 F304 Steel Pipe End Cap

ASTM A403 F304 Steel Pipe End Cap

ASME B16.9 BW 2/4 inch Pipe End Cap Fitting

ASME B16.9 BW 2/4 inch Pipes End Cap Fitting

6 inch Schedule 40 Exhaust Pipe End Cap

6 inch Schedule 40 Exhaust Pipe End Cap

Grade WPHY 52 Galvanized Pipe End Cap

Grade WPHY 52 Galvanized Pipe End Cap

8 in. Sch 80 CS Galvanised Pipe End Cap

8 in. Sch 80 CS Galvanised Pipes End Cap

ASME B16.9 Buttweld End Cap

ASME B16.9 Buttweld End Cap

4 in. Sch 20 ASTM A105 Carbon Steel End Cap

4 in. Sch 20 ASTM A105 Carbon Steel End Cap

2-1/2 in. Straight Standard Stainless Steel Pipe Cap

2-1/2 in. Straight Standard Stainless Steel Pipe Cap

Sch 20 * Sch 40 Inch Seamless Pipe End Cap

Sch 20 * Sch 40 Inch Seamless Pipes End Cap


View Dimensional Tolerances Of Brass Pipe End Cap



NPD		 Outside Diameter
End to End
D1*D2
DN Normail Pipes Size Series A Series B H
20*15 3/4*1/2 26.9*21.3 25*18 38
20*10 3/4*3/8 26.9*17.3 25*14 38
25*20 1*3/4 33.7*26.9 32*25 51
25*15 1*1/2 33.7*21.3 32*18 51
32*25 1.1/4*1 42.4*33.7 38*32 51
32*20 1.1/4*3/4 42.4*26.9 38*25 51
32*15 1.1/4*1/2 42.4*21.3 38*18 51
40*32 1.1/2*1.1/4 48.3*42.4 45*38 64
40*25 1.1/2*1 48.3*33.7 45*32 64
40*20 1.1/2*3/4 48.3*26.9 45*25 64
40*15 1.1/2*1/2 48.3*21.3 45*18 64
50*40 2*1.1/2 60.3*48.3 57*45 76
50*32 2*1.1/4 60.3*42.4 57*38 76
50*25 2*1 60.3*33.7 57*32 76
50*20 2*3/4 60.3*26.9 57*25 76
65*50 2.1/2*2 73.0*60.3 76*57 89
65*40 2.1/2*1.1/2 73.0*48.3 76*45 89
65*32 2.1/2*1.1/4 73.0*42.4 76*38 89
65*25 2.1/2*1 73.0*33.7 76*32 89
80*65 3*2.1/2 88.9*73.0 89*76 89
80*50 3*2 88.9*60.3 89*57 89
80*40 3*1.1/2 88.9*48.3 89*45 89
80*32 3*1.1/4 88.9*42.4 89*38 89
90*80 3.1/2*3 101.6*88.9 - 102
90*65 3.1/2*2.1/2 101.6*73.0 - 102
90*50 3.1/2*2 101.6*60.3 - 102
90*40 3.1/2*1.1/2 101.6*48.3 - 102
90*32 3.1/2*1.1/4 101.6*42.4 - 102
100*90 4*3.1/2 114.3*101.6 - 102
100*80 4*3 114.3*88.9 108*89 102
100*65 4*2.1/2 114.3*73.0 108*76 102
100*50 4*2 114.3*60.3 108*57 102
100*40 4*1.1/2 114.3*48.3 108*45 102
125*100 5*4 141.3*114.3 133*108 127
125*90 5*3.1/2 141.3*101.6 - 127
125*80 5*3 141.3*88.9 133*89 127
125*65 5*2.1/2 141.3*73.0 133*76 127
125*50 5*2 141.3*60.3 133*57 127
150*125 6*5 168.3*141.3 159*133 140
150*100 6*5 168.3*114.3 159*108 140
150*90 6*3.1/2 168.3*101.6 - 140
150*80 6*3 168.3*88.9 159*89 140
150*65 6*2.1/2 168.3*73.0 159*76 140
200*150 8*6 219.1*168.3 219*159 152
200*125 8*5 219.1*141.3 219*133 152
200*100 8*4 219.1*114.3 219*108 152
200*90 8*3.1/2 219.1*101.6 - 152
250*200 10*8 273.0*219.1 273*219 178
250*150 10*6 273.0*168.3 273*159 178
250*125 10*5 273.0*141.3 273*133 178
250*100 10*4 273.0*114.3 273*108 178
300*250 12*10 323.9*273.1 325*273 203
300*200 12*8 323.9*219.1 325*219 203
300*150 12*6 323.9*168.3 325*159 203
300*125 12*5 323.9*141.3 325*133 203
350*300 14*12 355.6*323.9 377*325 330
350*250 14*10 355.6*273.0 377*273 330
350*200 14*8 355.6*219.1 377*219 330
350*150 14*6 355.6*168.3 377*159 330
400*350 16*14 406.4*355.6 426*377 356
400*300 16*12 406.4*323.9 426*325 356
400*250 16*10 406.4*273.0 426*273 356
400*200 16*8 406.4*219.1 426*219 356
450*400 18*16 457*406.4 478*426 381
450*350 18*14 457*355.6 478*377 381
450*300 18*12 457*323.9 478*325 381
450*250 18*10 457*273.0 478*273 381
500*450 20*18 508*457 529*478 508
500*400 20*16 508*406.4 529*426 508
500*350 20*14 508*355.6 529*377 508
500*300 20*12 508*323.9 529*325 508
550*500 22*20 559*508 - 508
550*450 22*18 559*457 - 508
550*400 22*16 559×406.4 - 508
550*350 22*14 559*355.6 - 508
600*550 24*22 610*559 - 508
600*500 24*20 610*508 630*529 508
600*450 24*18 610*457 630*478 508
600*400 24*22 610*406.4 630*426 508
650*600 26*24 660*610 - 610
650*550 26*22 660*559 - 610
650*500 26*20 660*508 - 610
650*450 26*18 660*457 - 610
700*650 28*26 711*660 - 610
700*600 28*24 711*610 720*630 610
700*550 28*22 711*559 - 610
700*500 28*20 711*508 720*530 610
750*700 30*28 762*711 - 610
750*650 30*26 762*660 - 610
750*600 30*24 762*610 - 610
750*550 30*22 762*559 - 610
800*750 32*30 813*762 - 610
800*700 32*28 813*711 820*720 610
800*650 32*26 813*660 - 610
800*600 32*24 813*610 820*630 610
850*800 34*32 864*813 - 610
850*750 34*30 864*762 - 610
850*700 34*28 864*711 - 610
850*650 34*26 864*660 - 610
900*850 36*34 914*864 - 610
900*800 36*32 914*813 920*820 610
900*750 36*30 914*762 - 610
900*700 36*28 914*711 920*720 610
950*900 38*36 965*914 - 610
950*850 38*34 965*864 - 610
950*800 38*32 965*813 - 610
950*750 38*30 965*762 - 610
1000*950 40*38 1016*965 - 610
1000*900 40*36 1016*914 1020*920 610
1000*850 40*34 1016*864 - 610
1000*800 40*32 1016*813 1020*820 610
1050*1000 42*40 1067*1016 - 610
1050*950 42*38 1067*965 - 610
1050*900 42*36 1067*914 - 610
1050*850 42*34 1067*864 - 610
1100*1050 44*42 1118*1067 - 610
1100*1000 44*40 1118*1016 1120*1020 610
1100*950 44*38 1118*965 - 610
1100*900 44*36 1118*914 1220*920 610
1150*1100 46*44 1168*1118 - 711
1150*1050 46*42 1168*1067 - 711
1150*1000 46*40 1168*1016 - 711
1150*950 46*38 1168*965 - 711
1200*1150 48*46 1220*1168 - 711
1200*1100 48*44 1220*1118 1220*1120 711
1200*1050 48*42 1220*1067 - 711
1200*1000 48*40 1220*1016 1220*1020 711
