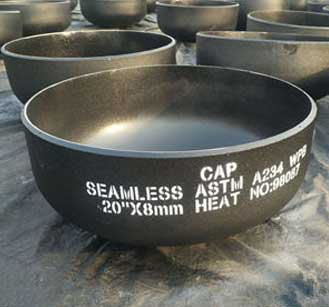

ASTM A234 WPB Cap

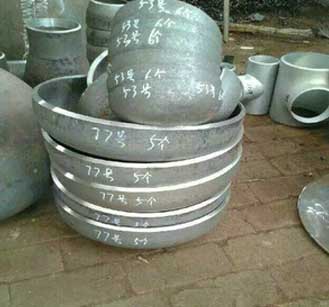

SA234 WPB Pipe Caps

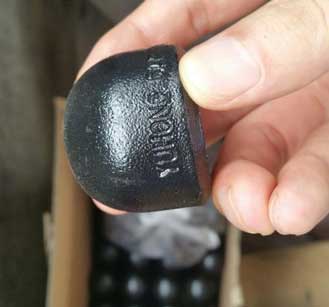

Buttweld A234 WPB End Cap
Normal Pipe Sizes (NPS) | O.D. (Outside Daimeter) | I.D. (Inside Daimeter) | Wall Thickness |
Length | Pipe schedule |
Weight In Pound |
1/2 | 0.84 | 0.622 | 0.109 | 1 | 40 | 0.08 |
3/4 | 1.05 | 0.824 | 0.113 | 1.25 | 40 | 0.14 |
1 | 1.32 | 1.049 | 0.133 | 1.5 | 40 | 0.21 |
1 1/4 | 1.66 | 1.38 | 0.14 | 1.5 | 40 | 0.33 |
1 1/2 | 1.9 | 1.61 | 0.145 | 1.5 | 40 | 0.54 |
2 | 2.38 | 2.067 | 0.154 | 1.5 | 40 | 0.8 |
2 1/2 | 2.88 | 2.469 | 0.203 | 1.5 | 40 | 1 |
3 | 3.5 | 3.068 | 0.216 | 2 | 40 | 1.7 |
3 1/2 | 4 | 3.548 | 0.226 | 2.5 | 40 | 2.3 |
4 | 4.5 | 4.026 | 0.237 | 2.5 | 40 | 2.8 |
5 | 5.56 | 5.047 | 0.258 | 3 | 40 | 4.6 |
6 | 6.62 | 6.065 | 0.28 | 3.5 | 40 | 6.9 |
8 | 8.62 | 7.981 | 0.322 | 4 | 40 | 11.8 |
10 | 10.75 | 10.02 | 0.365 | 5 | 40 | 20.8 |
12 | 12.75 | 12 | 0.375 | 6 | * | 30.3 |
14 | 14 | 13.25 | 0.375 | 6.5 | 30 | 36.5 |
16 | 16 | 15.25 | 0.375 | 7 | 30 | 43.5 |
18 | 18 | 17.25 | 0.375 | 8 | * | 57 |
20 | 20 | 19.25 | 0.375 | 9 | 20 | 75.7 |
24 | 24 | 23.25 | 0.375 | 10.5 | 20 | 101 |
30 | 30 | 29.24 | 0.38 | 10.5 | * | 137 |
36 | 36 | 35.24 | 0.38 | 10.5 | * | 175 |
42 | 42 | 41.24 | 0.38 | 12 | * | 229 |
48 | 48 | 47.24 | 0.38 | 13.5 | * | 350 |
Standard Specification : | ASTM A234 WPB Cap |
Standard: | JIS B2312, ANSI B16.28, JIS B2313, ANSI B16.9, MSS-SP-43 Type b, MSS-SP-43 Type A, MSS-SP-43 Type B |
Coating Fitting Faces : | Oil Black Paint, Anti-rust Paint, Cold and Hot Dip Galvanized, Zinc Plated, Yellow Transparent |
Fitting Machining Equipment: | Bending machine, Pushing Machine, Sand-blasting machine,Electric bevelling machine, Press machine etc |
Check Sizes: | (SMLS UPTO 24”) 1/2” TO 36” (Buttweld 8” TO 36” ) |
Rating Pressure: | Pressure Rating Of: 3000 LBS, 6000 LBS, 9000 LBS |
Dimensions Class: | 2000#, 3000#, 6000#, 9000# |
Thickness: | View Our Thickness: SCH 5S, SCH10, SCH20, SCH10, SCH20, SCH30, SCHTD, SCH40, SCH60, XS, SCH80, SCH100, SCH120, SCH140, SCH160. |
Application: | Nuclear Power Plant Oil And Gas Industry Chemical Industry Fabrication Industry Natural Gas Industry Water Pipeline Industry |
SA234 WPB Pipe Caps
Pipe Cap A234 WPB
Cap STD WT STL A234
Carbon Steel ASTM A234 Pipe Cap
Carbon Steel A234 WPB End Cap
ANSI B16.9 Pipe Cap A234
ASTM A234 WPB Cap
ASME SA234 WPB Carbon Steel Buttweld End Cap
ASME B16.9 Carbon WPB End Cap
Carbon Steel WPB Pipe End Cap
Grade Carbon Steel ASTM A234 End Cap
BW A234 Pipe Cap
Normal Size Of Pipe (NPS) | STD | XS | SCH 160 | XXS |
1 | 0.09 | 0.14 | 0.18 | 0.23 |
1.1/4 | 0.14 | 0.18 | 0.23 | 0.34 |
1.1/2 | 0.18 | 0.23 | 0.27 | 0.41 |
2 | 0.27 | 0.34 | 0.57 | 0.68 |
2.1/2 | 0.41 | 0.45 | 0.79 | 1.13 |
3 | 0.68 | 0.79 | 1.32 | 1.81 |
3.1/2 | 0.91 | 1.13 | – | 2.72 |
4 | 1.13 | 1.36 | 2.68 | 3.4 |
5 | 2.04 | 2.49 | 4.54 | 5.44 |
6 | 2.95 | 4.08 | 6.8 | 8.16 |
8 | 5.44 | 7.26 | 14.06 | 13.61 |
10 | 9.07 | 11.34 | 25.85 | – |
12 | 13.61 | 16.33 | 43.09 | – |
14 | 16.33 | 20.41 | – | – |
16 | 18.14 | 24.49 | – | – |
18 | 24.49 | 32.66 | – | – |
20 | 34.02 | 39.01 | – | – |
22 | 42.64 | 56.7 | – | – |
24 | 43.54 | 58.97 | – | – |
26 | 53.98 | 72.12 | – | – |
30 | 78.02 | 103.87 | – | – |
Size And schedule | Price In INR (Per Piece) |
1/2 Inch X Schedule 16 | 175.25 |
3/4 Inch X Schedule 160 | 250.00 |
1 Inch X Schedule 160 | 300.00 |
1 1/4 Inch X Schedule 40 | 350.00 |
1 1/2 Inch X Schedule 80 | 390.97 |

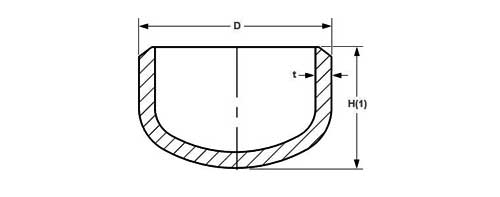

Normal Size Of Pipes (NPS) | (O.D.) D |
Length H |
Length H1 |
1/2 | 21.3 | 25 | 25 |
3/4 | 26.7 | 25 | 25 |
1 | 33.4 | 38 | 38 |
1¼ | 42.2 | 38 | 38 |
1½ | 48.3 | 38 | 38 |
2 | 60.3 | 38 | 44 |
2½ | 73 | 38 | 51 |
3 | 88.9 | 51 | 64 |
3½ | 101.6 | 64 | 76 |
4 | 114.3 | 64 | 76 |
5 | 141.3 | 76 | 89 |
6 | 168.3 | 89 | 102 |
8 | 219.1 | 102 | 127 |
10 | 273 | 127 | 152 |
12 | 323.8 | 152 | 178 |
14 | 355.6 | 165 | 191 |
16 | 406.4 | 178 | 203 |
ASME B16.9 End Cap Tolerances | ||||
All fittings | Pipe Caps | |||
(Normal Size Of Pipe) NPS | Outside Daimeter Ø at Bevel | Inside Daimeter Ø at End | Wall Thickness t / t1 |
Overall Length E |
1/2 a 2 1/2 | 1 | 0,8 | Not | 4 |
3 a 3 1/2 | 1 | 1,6 | less | 4 |
4 | +2 -1 | 1,6 | than | 4 |
5 a 6 | +3 -1 | 1,6 | 87,50% | 7 |
8 | 2 | 1,6 | of nominal | 7 |
10 | +4 -3 | 3,2 | tickness | 7 |
12 a 18 | +4 -3 | 3,2 | 7 | |
20 a 24 | +6 -5 | 4,8 | 7 | |
26 a 30 | +7 -5 | 4,8 | 10 | |
32 a 48 | +7 -5 | 4,8 | 10 |
ASTM A234 WPB Cap Pressure Ratings (psig) | |||||
---|---|---|---|---|---|
Temperature Ratings | Pressure Class | ||||
Class 150 | Class 300 | ||||
1/4 - 1 Inches | 1 1/4 - 2 Inches | 2 1/2 - 3 Inches | |||
(oF) | (oC) | ||||
-20 to 150 | -29 to 66 | 300 | 2000 | 1500 | 1000 |
200 | 93 | 265 | 1785 | 1350 | 910 |
250 | 121 | 225 | 1575 | 1200 | 825 |
300 | 149 | 185 | 1360 | 1050 | 735 |
350 | 177 | 150 | 1150 | 900 | 650 |
400 | 204 | - | 935 | 750 | 560 |
450 | 232 | - | 725 | 600 | 475 |
500 | 260 | - | 510 | 450 | 385 |
550 | 288 | - | 300 | 300 | 300 |
