| Stainless Steel | Tradename | UNS no. | Werkstoff No. | Density (g/cm3) |
| A403 WP304L Fittings | 304L Stainless | S30403 | 1.4307 | 8.0 |
| Standard Specification : | Stainless Steel 304L Pipe Fittings |
| Standard: | ANSI B16.9 Fittings, MSS-SP-43 Type A Fittings, MSS-SP-43 Type b Fittings, MSS-SP-43 Type B Fittings, ANSI B16.28 Fittings, JIS B2312 Fittings, JIS B2313 Fittings |
| Coating Flange Faces : | Yellow Transparent, Oil Black Paint, Zinc Plated, Anti-rust Paint, Cold and Hot Dip Galvanized |
| Application: | Oil And Gas Industry Water Pipeline Industry Chemical Industry Natural Gas Industry Fabrication Industry Nuclear Power Plant |
| Check Sizes: | (SMLS UPTO 24”) 1/2” TO 36” (Buttweld 8” TO 36” ) |
| Fitting Machining Equipment: | Sand-blasting machine, Press machine, Bending machine, Pushing Machine, electric bevelling machine etc |
| Stainless Steel 304L Pipe Fittings Dimensions Class: | Class 2000, Class 3000, Class 6000, Class 9000 |
| Rating Pressure: | Check Pressure Rating Of: 3000#, 6000#, 9000# |
| Thickness: | View Our Thickness: Schedule 5S, SCH10, SCH20, SCH10, SCH20, SCH30, SCHTD, SCH40, SCH60, XS, SCH80, SCH100, SCH120, SCH140, SCH160. |

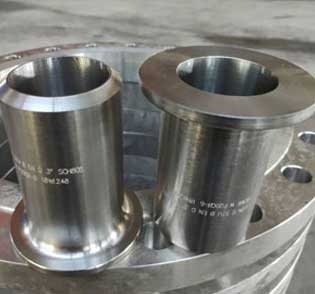

304L Stainless Steel Stub End

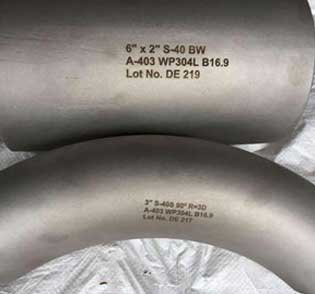

SS 304L Short Radius Elbow
304L Pipe U Bend Fittings
Stainless Steel 304L End Cap
ASTM A403 WP304L BW 45 Deg Elbow
ASTM A403 Gr WP304L 90 Degree Elbow
ASTM A403 Gr WP304L 180 Degree Elbow
Buttweld 304L Pipe Long Radius Elbow

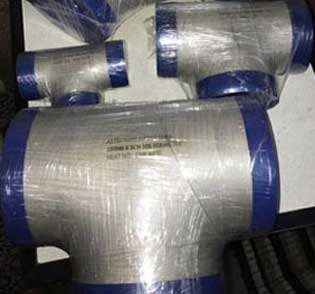

Stainless Steel 304L BW Tee Fittings
Stainless Steel 304L Pipe Fittings
Stainless Steel 304L Forged Concentric Reducers
Stainless Steel 304L Buttweld Eccentric Reducers

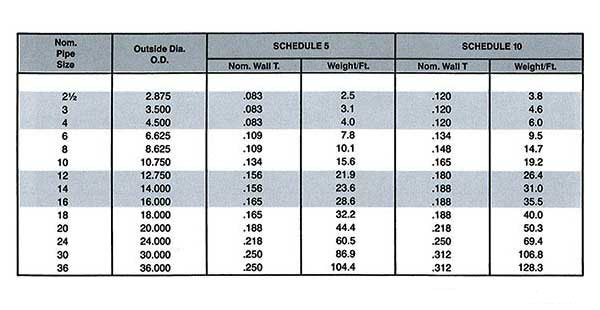

| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| Stainless Steel 304L Pipe Fittings | minimum- miximum | - 0.030 | - 2.0 | - 0.75 | - 0.045 | - 0.030 | 18.0 20.0 | - | 8.0 12.0 | - 0.10 |
| Gr. | Tensile Strength (MPa) minimum | Yield Strength 0.2% Proof (MPa) minimum | Elongation (% in 50 millimeter) minimum | Hardness | |
| Rockwell B (HR B) Maximum | Brinell (HB) Maximum | ||||
| 304L | 485 | 170 | 40 | 92 | 201 |
| Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (m/m/0C) | Thermal Conductivity(W/m.K) | Specific Heat 0-1000C(J/kg.K) | Electrical Resistivity (n.m) | |||
|---|---|---|---|---|---|---|---|---|---|
| 0-1000C | 0-3150C | 0-5380C | at 1000C | at 5000C | |||||
| ASTM A403 WP304L | 8000 | 193 | 17.2 | 17.8 | 18.4 | 16.2 | 21.5 | 500 | 720 |
| NPS | 90 Degree Elbows | 45 Degree Elbows | 180 Degree Return Bends | Tees | Lap Joint Stub Ends | Caps | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LR | SR | 3R | LR | 3R | LR | LR | C | M | F | G | R | E | |||
| A | A | A | B | B | O | K | O | K | |||||||
| ½ | 1.50 | - | - | 0.62 | - | 3.00 | 1.88 | - | - | 1.00 | 1.00 | 3.00 | 1.38 | 0.12 | 1.00 |
| ¾ | 1.50 | - | - | 0.75 | - | 3.00 | 2.00 | - | - | 1.12 | 1.12 | 3.00 | 1.69 | 0.12 | 1.00 |
| 1 | 1.50 | 1.00 | - | 0.88 | - | 3.00 | 2.19 | 2.00 | 1.62 | 1.50 | 1.50 | 4.00 | 2.00 | 0.12 | 1.50 |
| 1¼ | 1.88 | 1.25 | - | 1.00 | - | 3.75 | 2.75 | 2.50 | 2.06 | 1.88 | 1.88 | 4.00 | 2.50 | 0.19 | 1.50 |
| 1½ | 2.25 | 1.50 | - | 1.12 | - | 4.50 | 3.25 | 3.00 | 2.44 | 2.25 | 2.25 | 4.00 | 2.88 | 0.25 | 1.50 |
| 2 | 3.00 | 2.00 | 6.00 | 1.38 | 2.50 | 6.00 | 4.19 | 4.00 | 3.19 | 2.50 | 2.50 | 6.00 | 3.62 | 0.31 | 1.50 |
| 2½ | 3.75 | 2.50 | 7.50 | 1.75 | 3.12 | 7.50 | 5.19 | 5.00 | 3.94 | 3.00 | 3.00 | 6.00 | 4.12 | 0.31 | 1.50 |
| 3 | 4.50 | 3.00 | 9.00 | 2.00 | 3.75 | 9.00 | 6.25 | 6.00 | 4.75 | 3.38 | 3.38 | 6.00 | 5.00 | 0.38 | 2.00 |
| 3½ | 5.25 | 3.50 | 10.50 | 2.25 | - | 10.50 | 7.25 | 7.00 | 5.50 | 3.75 | 3.75 | 6.00 | 5.50 | 0.38 | 2.50 |
| 4 | 6.00 | 4.00 | 12.00 | 2.50 | 5.00 | 12.00 | 8.25 | 8.00 | 6.25 | 4.12 | 4.12 | 6.00 | 6.19 | 0.44 | 2.50 |
| 5 | 7.50 | 5.00 | 15.00 | 3.12 | - | 15.00 | 10.31 | 10.00 | 7.75 | 4.88 | 4.88 | 8.00 | 7.31 | 0.44 | 3.00 |
| 6 | 9.00 | 6.00 | 18.00 | 3.75 | 7.44 | 18.00 | 12.31 | 12.00 | 9.31 | 5.62 | 5.62 | 8.00 | 8.50 | 0.50 | 3.50 |
| 8 | 12.00 | 8.00 | 24.00 | 5.00 | 9.94 | 24.00 | 16.31 | 16.00 | 12.31 | 7.00 | 7.00 | 8.00 | 10.62 | 0.50 | 4.00 |
| 10 | 15.00 | 10.00 | 30.00 | 6.25 | 12.44 | 30.00 | 20.38 | 20.00 | 15.38 | 8.50 | 8.50 | 10.00 | 12.75 | 0.50 | 5.00 |
| 12 | 18.00 | 12.00 | 36.00 | 7.50 | 14.88 | 36.00 | 24.38 | 24.00 | 18.38 | 10.00 | 10.00 | 10.00 | 15.00 | 0.50 | 6.00 |
| 14 | 21.00 | 14.00 | 42.00 | 8.75 | 17.38 | 42.00 | 28.00 | 28.00 | 21.00 | 11.00 | 11.00 | 12.00 | 16.25 | 0.50 | 6.50 |
| 16 | 24.00 | 16.00 | 48.00 | 10.00 | 19.88 | 48.00 | 32.00 | 32.00 | 24.00 | 12.00 | 12.00 | 12.00 | 18.50 | 0.50 | 7.00 |
| 18 | 27.00 | 18.00 | 54.00 | 11.25 | 22.38 | 54.00 | 36.00 | 36.00 | 27.00 | 13.50 | 13.50 | 12.00 | 21.00 | 0.5 | 8.00 |
| 20 | 30.00 | 20.00 | 60.00 | 12.50 | 24.88 | 60.00 | 40.00 | 40.00 | 30.00 | 15.00 | 15.00 | 12.00 | 23.00 | 0.50 | 9.00 |
| 22 | 33.00 | 22.00 | 66.00 | 13.50 | 27.31 | 66.00 | 44.00 | 44.00 | 33.00 | 16.50 | 16.50 | 12.00 | 25.25 | 0.50 | 10.00 |
| 24 | 36.00 | 24.00 | 72.00 | 15.00 | 29.81 | 72.00 | 48.00 | 48.00 | 36.00 | 17.00 | 17.00 | 12.00 | 27.25 | 0.50 | 10.50 |
| 26 | 39.00 | - | 78.00 | 16.00 | 32.31 | - | - | - | - | 19.50 | 19.50 | - | - | - | 10.50 |
| 28 | 42.00 | - | 84.00 | 17.25 | 34.75 | - | - | - | - | 20.50 | 20.50 | - | - | - | 10.50 |
| 30 | 45.00 | - | 90.00 | 18.50 | 37.25 | - | - | - | - | 22.00 | 22.00 | - | - | - | 10.50 |
| 32 | 48.00 | - | - | 19.75 | - | - | - | - | - | 23.50 | 23.50 | - | - | - | 10.50 |
| 34 | 51.00 | - | 102.00 | 21.00 | 42.25 | - | - | - | - | 25.00 | 25.00 | - | - | - | 10.50 |
| 36 | 54.00 | - | 108.00 | 22.25 | 44.69 | - | - | - | - | 26.50 | 26.50 | - | - | - | 10.50 |
| 38 | 57.00 | - | 114.00 | 23.62 | 47.25 | - | - | - | - | 28.00 | 28.00 | - | - | - | 12.00 |
| 40 | 60.00 | - | 120.00 | 24.88 | 49.75 | - | - | - | - | 29.50 | 29.50 | - | - | - | 12.00 |
| 42 | 63.00 | - | 126.00 | 26.00 | 52.19 | - | - | - | - | 30.00 | 28.00 | - | - | - | 12.00 |
| 44 | 66.00 | - | 132.00 | 27.38 | 54.69 | - | - | - | - | 32.00 | 30.00 | - | - | - | 13.50 |
| 46 | 69.00 | - | 138.00 | 28.62 | 57.19 | - | - | - | - | 33.50 | 31.50 | - | - | - | 13.50 |
| 48 | 72.00 | - | 144.00 | 29.88 | 59.69 | - | - | - | - | 35.00 | 33.00 | - | - | - | 13.50 |
