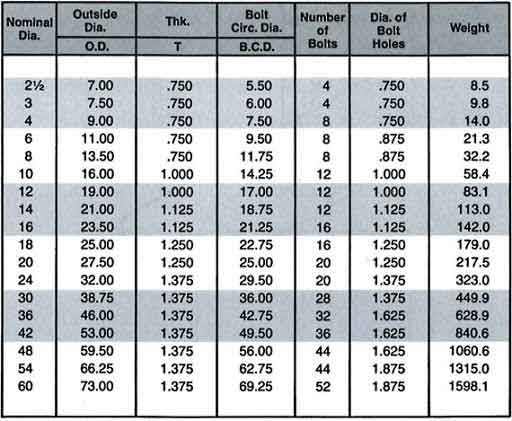

| NPS (in.) |
Outer Diameter (in.) |
B.C. (in.) |
T (in.) |
Bolt Hole Diameter (in.) |
Bolts | |
|---|---|---|---|---|---|---|
| No. Per Joint |
Size (inch) |
|||||
| 3 | 7.50 | 6.00 | 0.75 | 3/4 | 4 | 5/8 × 2 1/2 |
| 4 | 9.00 | 7.50 | 0.94 | 3/4 | 8 | 5/8 × 3 |
| 6 | 11.00 | 9.50 | 1.00 | 7/8 | 8 | 3/4 × 3 1/2 |
| 8 | 13.50 | 11.75 | 1.12 | 7/8 | 8 | 3/4 × 3 1/2 |
| 10 | 16.00 | 14.25 | 1.19 | 1 | 12 | 7/8 × 4 |
| 12 | 19.00 | 17.00 | 1.25 | 1 | 12 | 7/8 × 4 |
| 14 | 21.00 | 18.75 | 1.38 | 1 1/8 | 12 | 1 × 4 1/2 |
| 16 | 23.50 | 21.25 | 1.44 | 1 1/8 | 16 | 1 × 4 1/2 |
| 18 | 25.00 | 22.75 | 1.56 | 1 1/4 | 16 | 1 1/8 × 5 |
| 20 | 27.50 | 25.00 | 1.69 | 1 1/4 | 20 | 1 1/8 × 5 |
| 24 | 32.00 | 29.50 | 1.88 | 1 3/8 | 20 | 1 1/4 × 5 1/2 |
| 30 | 38.75 | 36.00 | 2.12 | 1 3/8 | 28 | 1 1/4 × 6 1/2 |
| 36 | 46.00 | 42.75 | 2.38 | 1 5/8 | 32 | 1 1/2 × 7 |
| 42 | 53.00 | 49.50 | 2.62 | 1 5/8 | 36 | 1 1/2 × 7 1/2 |
| 48 | 59.50 | 56.00 | 2.75 | 1 5/8 | 44 | 1 1/2 × 8 |
| 54 | 66.25 | 62.75 | 3.00 | 2 | 44 | 1 3/4 × 8 1/2 |
| 60 | 73.00 | 69.25 | 3.12 | 2 | 52 | 1 3/4 × 9 |
| 641 | 80.00 | 76.00 | 3.38 | 2 | 52 | 1 3/4 × 9 |
| Standard Specification : | Ductile Iron Pipe Fittings |
| Standard: | MSS-SP-43 Type A Fittings, MSS-SP-43 Type B Fittings, JIS B2313 Fittings, ANSI B16.9 Fittings, ANSI B16.28 Fittings, JIS B2312 Fittings, MSS-SP-43 Type b Fittings |
| Dimensions Class: | 2000#, 3000#, 6000#, 9000# |
| Application: | Natural Gas Industry Fabrication Industry Chemical Industry Water Pipeline Industry Nuclear Power Plant Oil And Gas Industry |
| Coating Fitting Faces : | Cold and Hot Dip Galvanized, Yellow Transparent, Oil Black Paint, Zinc Plated, Anti-rust Paint |
| Fitting Machining Equipment: | Press machine, electric bevelling machine, Bending machine, Pushing Machine, Sand-blasting machine etc |
| Rating Pressure: | Pressure Rating Of: 3000 LBS, 6000 LBS, 9000 LBS |
| Check Sizes: | (SMLS UPTO 24”) 1/2” TO 36” (Buttweld 8” TO 36” ) |
| Thickness: | View Our Thickness: Schedule 5S, SCH10, SCH20, SCH10, SCH20, SCH30, SCHTD, SCH40, SCH60, XS, SCH80, SCH100, SCH120, SCH140, SCH160. |

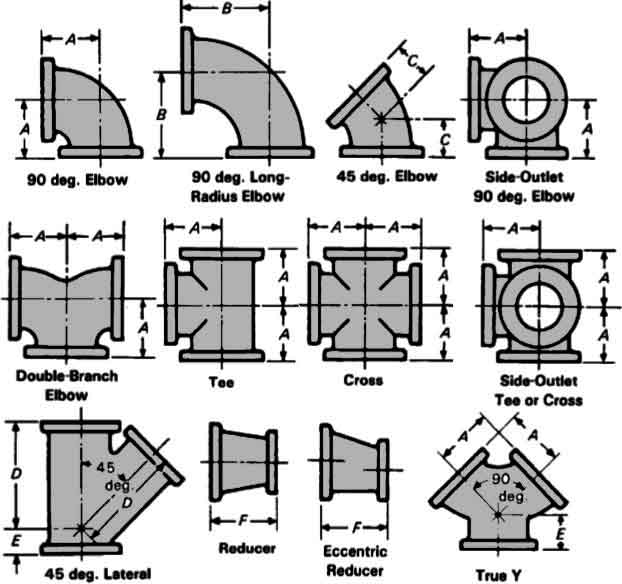

| NPS | OD | 90 Deg Elbow | 45 Deg Elbow | 180 Deg Returns | ||||
|---|---|---|---|---|---|---|---|---|
|
(in.)
|
LR
|
SR
|
LR
|
LR
|
||||
|
(millimeter)
|
(in.)
|
Center to Face
(in.) |
Center to Face
(in.) |
Center to Face
(in.) |
Radius
(in.) |
Center to Center
(in.) |
Back to face
(in.) |
|
|
1/2
|
21.3
|
0.840
|
1 1/2
|
–
|
5/8
|
2
|
1 7/8
|
|
|
3/4
|
26.7
|
1.050
|
1 1/8
|
–
|
7/16
|
2 1/4
|
1 11/16
|
|
|
1
|
33.4
|
1.315
|
1 1/2
|
1
|
7/8
|
3
|
2 3/16
|
|
|
1 1/4
|
42.2
|
1.660
|
1 7/8
|
1 1/4
|
1
|
3 3/4
|
2 3/4
|
|
|
1 1/2
|
48.3
|
1.900
|
2 1/4
|
1 1/2
|
1 1/8
|
3
|
4 1/2
|
3 1/4
|
|
2
|
60.3
|
2.375
|
3
|
2
|
1 3/8
|
4
|
6
|
4 3/16
|
|
2 1/2
|
73.0
|
2.875
|
3 3/4
|
2 1/2
|
1 3/4
|
5
|
7 1/2
|
5 3/16
|
|
3
|
88.9
|
3.500
|
4 1/2
|
3
|
2
|
6
|
9
|
6 1/4
|
|
3 1/2
|
101.6
|
4.000
|
5 1/4
|
3 1/2
|
2 1/4
|
7
|
10 1/2
|
7 1/4
|
|
4
|
114.3
|
4.500
|
6
|
4
|
2 1/2
|
8
|
12
|
8 1/4
|
|
5
|
141.3
|
5.563
|
7 1/2
|
5
|
3 1/8
|
10
|
15
|
10 5/16
|
|
6
|
168.3
|
6.625
|
9
|
6
|
3 3/4
|
12
|
18
|
12 5/16
|
|
8
|
219.1
|
8.625
|
12
|
8
|
5
|
12
|
24
|
16 5/16
|
|
10
|
273.1
|
10.750
|
15
|
10
|
6 1/4
|
15
|
30
|
20 3/8
|
|
12
|
323.9
|
12.750
|
18
|
12
|
7 1/2
|
18
|
36
|
24 3/8
|
Ductile Iron U Bend
Ductile Iron Lateral Tee
Ductile Iron Socket Weld Union
Ductile Iron Cross
Ductile Iron Reducer
Ductile Iron Elbow

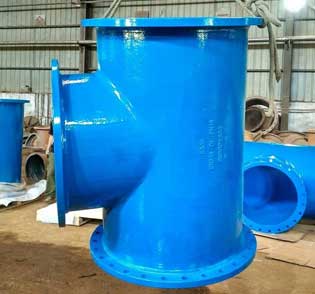

Ductile Iron Tee
Ductile Iron End Cap
Ductile Iron Stub End
Ductile Iron Threaded Plug
| Pressure Rating (psig) | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NPS (inch) |
Pipe Sch. | OD (inch) |
Wall Thick. (in) |
Temperature (oF) | ||||||||
| 100 | 200 | 300 | 400 | 500 | 600 | |||||||
| Allowable Stress (Pressure Rating) | ||||||||||||
| 16700 | 16700 | 16700 | 15500 | 14400 | 13500 | |||||||
| 1" | 40 | 1.315 | 0.133 | 2205 | 2205 | 2205 | 2047 | 1902 | 1783 | |||
| 80 | 1.315 | 0.179 | 3061 | 3061 | 3061 | 2841 | 2640 | 2475 | ||||
| 160 | 1.315 | 0.250 | 4493 | 4493 | 4493 | 4170 | 3874 | 3632 | ||||
| 1 1/2" | 40 | 1.900 | 0.145 | 1629 | 1629 | 1629 | 1512 | 1404 | 1317 | |||
| 80 | 1.900 | 0.200 | 2303 | 2303 | 2303 | 2138 | 1986 | 1862 | ||||
| 160 | 1.900 | 0.281 | 3362 | 3362 | 3362 | 3120 | 2899 | 2717 | ||||
| 2" | 40 | 2.375 | 0.154 | 1371 | 1371 | 1371 | 1272 | 1182 | 1108 | |||
| 80 | 2.375 | 0.218 | 1985 | 1985 | 1985 | 1843 | 1712 | 1605 | ||||
| 160 | 2.375 | 0.344 | 3283 | 3283 | 3283 | 3047 | 2831 | 2654 | ||||
| 3" | 40 | 3.500 | 0.216 | 1301 | 1301 | 1301 | 1208 | 1122 | 1052 | |||
| 80 | 3.500 | 0.300 | 1844 | 1844 | 1844 | 1712 | 1590 | 1491 | ||||
| 160 | 3.500 | 0.438 | 2787 | 2787 | 2787 | 2587 | 2403 | 2253 | ||||
| 4" | 40 | 4.500 | 0.237 | 1102 | 1102 | 1102 | 1023 | 950 | 891 | |||
| 80 | 4.500 | 0.337 | 1596 | 1596 | 1596 | 1482 | 1377 | 1291 | ||||
| 160 | 4.500 | 0.531 | 2611 | 2611 | 2611 | 2424 | 2552 | 2111 | ||||
| 5" | 40 | 5.563 | 0.258 | 965 | 965 | 965 | 896 | 832 | 780 | |||
| 80 | 5.563 | 0.375 | 1428 | 1428 | 1428 | 1325 | 1231 | 1154 | ||||
| 160 | 5.563 | 0.625 | 2474 | 2474 | 2474 | 2296 | 2133 | 2000 | ||||
| 6" | 40 | 6.625 | 0.280 | 877 | 877 | 877 | 814 | 756 | 709 | |||
| 80 | 6.625 | 0.432 | 1379 | 1379 | 1379 | 1280 | 1189 | 1115 | ||||
| 160 | 6.625 | 0.719 | 2382 | 2382 | 2382 | 2211 | 2054 | 1925 | ||||
| 8" | 40 | 8.625 | 0.322 | 771 | 771 | 771 | 716 | 665 | 623 | |||
| 80 | 8.625 | 0.500 | 1218 | 1218 | 1218 | 1131 | 1050 | 985 | ||||
| 160 | 8.625 | 0.906 | 2298 | 2298 | 2298 | 2133 | 1982 | 1858 | ||||
| 10" | 40 | 10.750 | 0.365 | 699 | 699 | 699 | 649 | 603 | 565 | |||
| 80 | 10.750 | 0.594 | 1159 | 1159 | 1159 | 1075 | 999 | 937 | ||||
| 160 | 10.750 | 1.125 | 2289 | 2289 | 2289 | 2124 | 1974 | 1850 | ||||
