ASTM A860 WPHY 65 Fittings | MSS SP-75 65 Pipe Tee / End Cap / Elbow

ASTM A860 WPHY 65 Fittings

Carbon Steel Gr A860 WPHY 65 Elbow

Buttweld A860 WPHY 65 Reducer

WPHY 65 Welded Pipe Fittings Specification

Standard Specification :	ASTM A860 WPHY 65 Fittings
Rating Pressure:	Pressure Rating Of: 3000 LBS, 6000 LBS, 9000 LBS
Check Sizes:	(SMLS UPTO 24”) 1/2” TO 36” (Buttweld 8” TO 36” )
Standard:	ANSI B16.28 Fittings, JIS B2313 Fittings, ANSI B16.9 Fittings, MSS-SP-43 Type b Fittings, MSS-SP-43 Type A Fittings, JIS B2312 Fittings, MSS-SP-43 Type B Fittings
Fitting Machining Equipment:	Electric bevelling machine, Sand-blasting machine, Press machine, Bending machine, Pushing Machine etc
Dimensions Class:	2000#, 3000#, 6000#, 9000#
Thickness:	View Our Thickness: Sch5S, Sch10, Sch20, Sch10, Sch20, Sch30, SchTD, Sch40, Sch60, XS, Sch80, Sch100, Sch120, Sch140, Sch160.
Coating Fitting Faces :	Cold and Hot Dip Galvanized, Anti-rust Paint, Zinc Plated, Oil Black Paint, Yellow Transparent
Application:	Water Pipeline Industry Natural Gas Industry Oil And Gas Industry Fabrication Industry Nuclear Power Plant Chemical Industry

Carbon Steel Buttweld A860 Grade WPHY 65 Pipe Cap Weight Chart

A860 WPHY 65 Elbow Chemical Composition

Grade	C	Mn	S	P	Si	Ni	Cr	Mo	Cu	Ti	V	Cb	Al
ASTM A860 WPHY 65	0.20	1.00-1.45	0.03	0.01	0.15-0.40	0.50	0.30	0.25	0.35	0.05	0.10	0.06

A860 WPHY 65 Reducer Mechanical Properties

Element	Elongation	Tensile Strength	Yield Strength (0.2%Offset)
a860 WPHY 65	28 %	515-690	415

ASTM A860 MSS SP 75 WPHY 65 Fittings Type

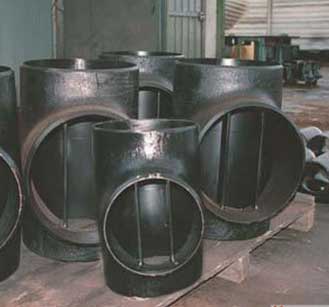

A860 Carbon Steel-65 Equal Tee

A860 Gr WPHY 65 180 Deg Elbow

A860 Gr 65 BW Cross Fitting

MSS SP 75 WPHY 65 Material

Carbon Steel A860 WPHY 65 Weld Lateral Tee

Carbon Steel A860 65 Weld Lateral Tee

High Yield Carbon Steel A860 WPHY 65 End Cap

High Yield Carbon Steel A860 65 End Cap

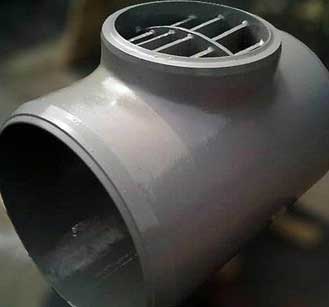

ASTM A860 Carbon Steel WPHY 65 Reducing Tee

ASTM A860 High Yield Gr WPHY 65 Stub Ends

ASTM A860 High Yield Gr 65 Stub Ends

Buttweld WPHY-65 Concentric Reducer

MSS SP 75 WPHY 65 Eccentric Reducer

ASTM A860 Gr 65 45 Degree Elbow

Carbon Steel MSS SP75 WPHY 65 90 Deg Elbow

Carbon Steel MSS SP75 65 90 Deg Elbow

ASTM A865 MSS SP 75 WPHY 65 Pipe Fittings Pressure Rating

ASTM A860 WPHY 65 Reducer

3.ASTM A860 MSS SP 75 65 Reducer

WT: sch40/ std/ sch80/ thick-wall

Carbon Steel Grade WPHY 65 Pipe Concentric

A860 WPHY 65 Eccentric Reducer

MSS SP 75 A860 WPHY 65 Con/ Ecc Reducer

A860 Gr WPHY 65 CAP

4. Buttweld-WPHY 65 SMLS CAP

MSS SP 75 WPHY 65 cap

Cap Pipe fittings

Carbon Steel MSS SP75 WPHY 65 Cap Wall thickness : Sch5~Sch160\ XXS
CS A860 WPHY 65 Weld Cap Fittings Material : A600 Gr WPL6/ WPL3
High Yield Carbon Steel A860 WPHY 65 End Pipe Cap Standard : ANSI, ASTM, ASME, JIS, BS, MSS, DIN etc.
ASTM A860 Carbon Steel WPHY 65 Cap Size : 1/2’’~48’’(SMLS);16’’~72’’(Welded)

ASTM A860 High Yield Gr WPHY 65 Stubend

5. A860 Carbon Steel-WPHY 65 Stubend

A860 Gr WPHY 65 60 Stubend
these Material ASTM A860 Buttweld are known for accurate dimension, corrosion resistance and durability.
A860 Gr WPHY 65 Short Stubend
A860 Gr WPHY 65 BW Long Stubend

Elbow WPHY 65

ASTM A860 API 5L X65 elbow manufacturer

ASTM A860 WPHY 65 elbow size : Seamless:1/2"-30"
Buttweld-WPHY 65 Fittings standard : ASME B16.9, MSS SP-75
MSS SP 75 WPHY 65 elbow thick. : Sch 10S, SCH 20, SCH 30, SCH 40
ASTM A860 Gr WPHY 65 elbow deg : 22.5 degree, 30 degree,45 degree, 90 degree, 180 degree, 1.0D, 1.5D
