ASME B16.9 Tee
Equal Tee Pipe Fitting
Buttweld Reducing Tee
| Normal Pipe Size | LBS | Kilogram |
| 1/2 | 0.35 | 0.16 |
| 3/4 | 0.45 | 0.2 |
| 1 | 0.75 | 0.34 |
| 1.1/4 | 1.3 | 0.59 |
| 1.1/2 | 2 | 0.91 |
| 2 | 3.5 | 1.59 |
| 2.1/2 | 6 | 2.72 |
| 3 | 7 | 3.18 |
| 3.1/2 | 9 | 4.08 |
| 4 | 12 | 5.44 |
| 5 | 21 | 9.53 |
| 6 | 34 | 15.42 |
| 8 | 55 | 24.95 |
| 10 | 85 | 38.56 |
| 12 | 120 | 54.43 |
| 14 | 165 | 74.84 |
| 16 | 195 | 88.45 |
| 18 | 249 | 112.94 |
| 20 | 342 | 155.13 |
| 22 | 414 | 187.79 |
| 24 | 528 | 239.5 |
| 26 | 770 | 349.27 |
| 30 | 1060 | 480.81 |
| 36 | 1490 | 675.85 |
| NPS | LBS | KG |

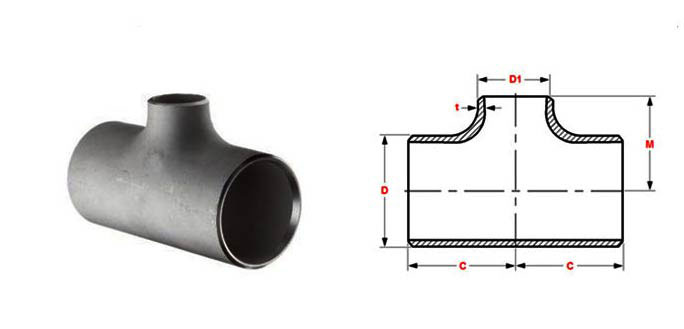

| NPS | Outside diameter Of ASME B16.9 Tee at bevel |
Center-to-End | |
|---|---|---|---|
| Run (C) | Outlet(M) | ||
| 1/2" | 21.3 | 25 | 25 |
| 3/4" | 26.7 | 29 | 29 |
| 1" | 33.4 | 38 | 38 |
| 1 1/4" | 42.2 | 48 | 48 |
| 1 1/2" | 48.3 | 57 | 57 |
| 2" | 60.3 | 64 | 64 |
| 2 1/2" | 73.0 | 76 | 76 |
| 3" | 88.9 | 86 | 86 |
| 3 1/2" | 101.6 | 95 | 95 |
| 4" | 114.3 | 105 | 105 |
| 5" | 141.3 | 124 | 124 |
| 6" | 168.3 | 143 | 143 |
| 8" | 219.1 | 178 | 178 |
| 10" | 273.0 | 216 | 216 |
| 12" | 323.8 | 254 | 254 |
| 14" | 355.6 | 279 | 279 |
| 16" | 406.4 | 305 | 305 |
| 18" | 457.0 | 343 | 343 |
| 20" | 508.0 | 381 | 381 |
| 22" | 559.0 | 419 | 419 |
| 24" | 610.0 | 432 | 432 |
| SR NO | Description | PRICE PAR PICE IN (USD$) |
| 1 | Stainless Steel A403, Carbon Steel A234, Seamless, SCh40 * SCh80, Equal Tee: Buttweld, ASME B16 9 / ASME B16.9 | $19.56 |
| 2 | Equal Tee : SCh80 * SCh120, 1-1/2 x 1-1/2 x 1 in. Weld, Buttweld, ASME B16 9 / ASME B16.9, Stainless Steel A403, Carbon Steel A234, Seamless. | $20.98 |
| 3 | 2 x 2 x 1-1/2 Inch. Schedule 10 * Schedule 40, Reducing Tee, Seamless, 4 x 2 NPS, Stainless Steel A403, ASME B16.9 / ASME B16.9 Buttweld | $32.67 |
| 4 | 4 x 2 Inch. ASME B16.9 / ASME B16.9 ButtWeld, Carbon Steel Reducing Tee A234, Schedule 10 * Schedule 40. | $34.02 |
| 5 | Lateral Tee: 10 X 8 NPS, ASTM WPB, Seamless, Be, Nace Mr-0175 Sch20 X Sch20, Sch40 X Sch40, ASME B16.9 / ASME B16 9 Buttweld | $22.98 |
| Chek Specifications Of: | ASME B16.9 Tee |
| Check Standard Of Stainless Steel Tee: | ASME B16.9, JISB2311, BS4504, BS4504, BS1560, BS10, JISB2312, JISB2313, ASME B16.47, ASME B16.38, MSS-SP-43, ANSI B16.28, BS, GB, ISO, DIN, ASME B16.25, MSS SP-75 DIN2605 |
| Bending Radius : | Radius=1D, 2D, 3D, 5D, 6D, 8D, 10D |
| Manufacturers Process Of ASME B16.9 Tee: | Push, Press, forge, Cast, Marking, Packing In Boxes For Sale. |
| Standard Size Of: | SLMS Buttweld Unequal Tee : To 1/2″ – 10″ Weld Reducing Tee: To 1/2″ – 48″ |
| Types Of Elbow 90 Sch 40 | SMLS / Fabricated Fittings / ERW / Welded Fitting / BW |
| Thickness Chart: | SCH10, 20, 30, STD 40, 60, XS, 80, 100, 120, 140 |
| Size Range : | ½" NB to 24" NB in Sch10s, Sch40s, Sch80s, Sch160s |
| Mills And Origin Of Stainless Steel lateral Wye: | Russian, India, Japanese, USA |
| Industries For Use : | Petrochemical Industry Oil And Gas Industry Nuclear Power Plant |
ASME B16.9 Equal Tee Pipe Fitting 1 in. Schedule 40
1/2 in. Buttweld Sch 10 304L Bw Equal Tee ASME B16.9
3 inch. 316L Sch 10 * 60 Seamless Equal Tee
16 in. Schedule 20 Stainless Steel Tee Fittings
ANSI B16.9 Pipe Reducing Tee Fittings
4 X 3 Inch Black Pipe Reducing Tee
ASTM A860 WPHY42 BW Reducing Tee En 10253
BW, SMLS, DN450 x DN200 Galvanised Reducing Tee
1 in. Sch40 304 Lateral Tee Pipe Fitting
1-1/2 x 1-1/2 x 1/2 in. Seamless Lateral Tee B16.9
1 x 1 x 1/2 in. Weld Sch 10 316L Lateral Wye Fitting
Schedule 40 A105 Carbon Steel Lateral Wye

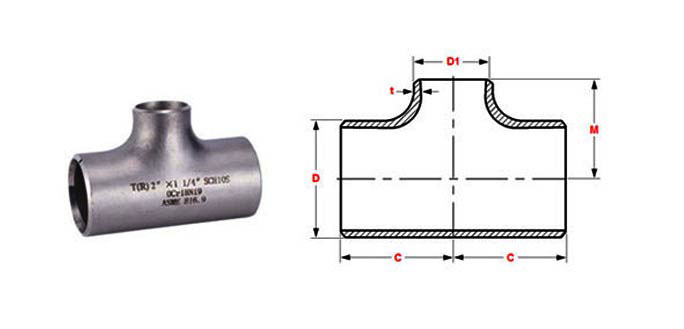

| NPS | Outside diameter Of ASME B16.9 Reducing Tee at bevel |
Center-to-End | |||
|---|---|---|---|---|---|
| Run | Outlet | Run | Outlet | Run (C) | Outlet (M) |
| 1/2" | 1/4" 3/8" |
21.3 | 13.7 17.3 |
25 | 25 |
| 3/4" | 3/8" 1/2" |
26.7 | 17.3 21.3 |
29 | 29 |
| 1" | 1/2" 3/4" |
33.4 | 21.3 26.7 |
38 | 38 |
| 1 1/4" | 1/2" 3/4" 1" |
42.2 | 21.3 26.7 33.4 |
48 | 48 |
| 1 1/2" | 1/2" 3/4" 1" 1 1/4" |
48.3 | 21.3 26.7 33.4 42.2 |
57 | 57 |
| 2" | 3/4" 1" 1 1/4" 1 1/2" |
60.3 | 26.7 33.4 42.2 48.3 |
64 | 44 51 57 60 |
| 2 1/2" | 1" 1 1/4" 1 1/2" 2" |
73.0 | 33.4 42.2 48.3 60.3 |
76 | 57 64 67 70 |
| 3" | 1 1/4" 1 1/2" 2" 2 1/2" |
88.9 | 42.2 48.3 60.3 73.0 |
86 | 70 73 76 83 |
| 3 1/2" | 1 1/2" 2" 2 1/2" 3" |
101.6 | 48.3 60.3 73.0 88.9 |
95 | 79 83 89 92 |
| 4" | 1 1/2" 2" 2 1/2" 3" 3 1/2" |
114.3 | 48.3 60.3 73.0 88.9 101.6 |
105 | 86 89 95 98 102 |
| 5" | 2" 2 1/2" 3" 3 1/2" 4" |
141.3 | 60.3 73.0 88.9 101.6 114.3 |
124 | 105 108 111 114 117 |
| 6" | 2 1/2" 3" 3 1/2" 4" 5 |
168.3 | 73.0 88.9 101.6 114.3 141.3 |
143 | 121 124 127 130 137 |
| 8" | 3 1/2" 4" 5" 6" |
219.1 | 101.6 114.3 141.3 168.3 |
178 | 152 156 162 168 |
| 10" | 4" 5" 6" 8" |
273.0 | 114.3 141.3 168.3 219.1 |
216 | 184 191 194 203 |
| 12" | 5" 6" 8" 10" |
323.8 | 141.3 168.3 219.1 273.0 |
254 | 216 219 229 241 |
| 14" | 6" 8" 10" 12" |
355.6 | 168.3 219.1 273.0 323.8 |
279 | 238 248 257 270 |
| 16" | 6" 8" 10" 12" 14" |
406.4 | 168.3 219.1 273.0 323.8 355.6 |
305 | 264 273 283 295 305 |
| 18" | 8" 10" 12" 14" 16" |
457.0 | 219.1 273.0 323.8 355.6 406.4 |
343 | 298 308 321 330 330 |
| 20" | 8" 10" 12" 14" 16" 18" |
508.0 | 219.1 273.0 323.8 355.6 406.4 457.0 |
381 | 324 333 346 356 356 368 |
| 22" | 10" 12" 14" 16" 18" 20" |
559.0 | 273.0 323.8 355.6 406.4 457.0 508.0 |
419 | 359 371 381 381 394 406 |
| 24" | 10" 12" 14" 16" 18" 20" 22" |
610.0 | 273.0 323.8 355.6 406.4 457.0 508.0 559.0 |
432 | 384 397 406 406 419 432 432 |

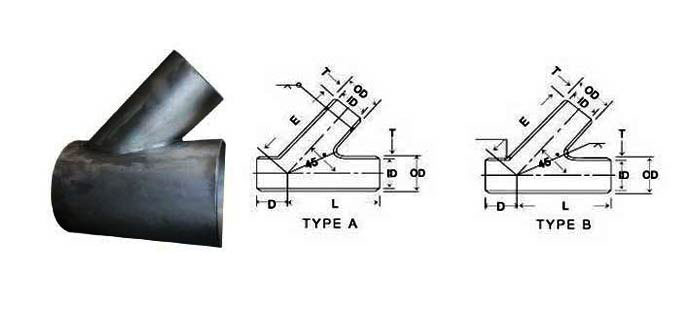

| NPS | TYPE | Outside Diameter OD |
STD | X – S | Nominal Pipe Size | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| E & L | D | T | ID | E & L | D | T | ID | ||||
| 1 1¼ 1½ |
B B B |
1.315 1.660 1.900 |
5.75 6.25 7.00 |
1.75 1.75 2.00 |
0.133 0.140 0.145 |
1.049 1.380 1.610 |
6.50 7.25 8.50 |
2.00 2.25 2.50 |
0.179 0.191 0.200 |
0.957 1.278 1.500 |
1 1¼ 1½ |
| 2 2½ 3 |
A/B B B |
2.375 2.875 3.500 |
8.00 9.50 10.00 |
2.50 2.50 3.00 |
0.154 0.203 0.216 |
2.067 2.469 3.068 |
*8.00 **9.00 10.50 11.00 |
2.50 2.50 3.00 |
0.128 0.276 0.300 |
1.939 2.323 2.900 |
2 2½ 3 |
| 3½ 4 5 |
B A/B B |
4.000 4.500 5.562 |
11.50 12.00 13.50 |
3.00 3.00 3.50 |
0.226 0.237 0.258 |
3.548 4.026 5.047 |
12.50 *12.00 **13.50 15.00 |
3.00 3.00 3.50 |
0.318 0.337 0.375 |
3.364 3.826 4.813 |
3½ 4 5 |
| 6 8 10 |
A/B B B |
6.625 8.625 10.750 |
14.50 17.50 20.50 |
3.50 4.50 5.00 |
0.280 0.322 0.365 |
6.065 7.981 10.020 |
*14.50 **17.50 20.50 24.00 |
*3.50 **4.00 5.00 5.50 |
0.432 0.500 0.500 |
5.761 7.625 9.750 |
6 8 10 |
| 12 14 16 |
B B B |
12.750 14.000 16.000 |
24.50 27.00 30.00 |
5.50 6.00 6.50 |
0.375 0.375 0.375 |
12.000 13.250 15.250 |
27.50 31.00 34.50 |
6.00 6.50 7.50 |
0.500 0.500 0.500 |
11.750 13.000 15.000 |
12 14 16 |
| 18 20 24 |
B B B |
18.000 20.000 24.000 |
32.00 35.00 40.50 |
7.00 8.00 9.00 |
0.375 0.375 0.375 |
17.250 19.250 23.250 |
37.50 40.50 47.50 |
8.00 8.50 10.00 |
0.500 0.500 0.500 |
17.000 19.000 23.000 |
18 20 24 |
