| Standard Specification : | Super Duplex Fittings |
| Coating Fitting Faces : | Cold and Hot Dip Galvanized, Zinc Plated, Yellow Transparent, Oil Black Paint, Anti-rust Paint |
| Thickness: | View Our Thickness: Schedule 5S, SCH10, SCH20, SCH10, SCH20, SCH30, SCHTD, SCH40, SCH60, XS, SCH80, SCH100, SCH120, SCH140, SCH160. |
| Rating Pressure: | Pressure Rating Of: 3000 LBS, 6000 LBS, 9000 LBS |
| Check Sizes: | (SMLS UPTO 24”) 1/2” TO 36” (Buttweld 8” TO 36” ) |
| Standard: | MSS-SP-43 Type B Fittings, ANSI B16.28 Fittings, JIS B2312 Fittings, JIS B2313 Fittings, ANSI B16.9 Fittings, MSS-SP-43 Type A Fittings, MSS-SP-43 Type b Fittings |
| Dimensions Class: | 2000#, 3000#, 6000#, 9000# |
| Application: | Chemical Industry Water Pipeline Industry Nuclear Power Plant Natural Gas Industry Fabrication Industry Oil And Gas Industry |
| Fitting Machining Equipment: | Press machine, electric bevelling machine, Bending machine, Pushing Machine, Sand-blasting machine etc |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
|---|---|---|---|---|---|---|---|---|---|---|
| S32750 | 0.030 maximum | 2.00 maximum | 1.00 maximum | 0.030 maximum | 0.020 maximum | 22.0 – 23.0 | 3.0 – 3.5 | 4.50 – 6.50 | 0.14 – 0.20 | 63.72 min |
| Grades | Density (g/cm 3) | Density (lb/in 3) | Melting Point (°C) | Melting Point (°F) |
|---|---|---|---|---|
| S32750 | 7.805 | 0.285 | 1420 – 1465 | 2588 – 2669 |
Supers Duplex Elbow

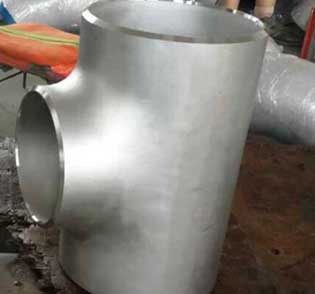

Supers Duplex Tee
Supers Duplex Reducer
Supers Duplex End Cap
Supers Duplex Stub End
Supers Duplex Threaded Plug
Supers Duplex Socket Weld Union
Supers Duplex Cross
Supers Duplex U Bend
Supers Duplex Lateral Tee
| STANDARD | WERKSTOFF NR. | UNS |
|---|---|---|
| Super Duplex 2507 | 1.4410 | S32750 / S32760 |
| NPS | All Fiting | All Fiting | Elbow And Tee | 180 Degree Reture Bends | 180 Degree Reture Bends | 180 Degree Reture Bends | REDUCERS | CAPS |
|---|---|---|---|---|---|---|---|---|
| Normal Pipe Size | O.D. at Bevel (1), (2) | I.D. at End (1), (3), (4) |
Centre -to- End Dimension A, B, C, M | Centre-to- Centre O | Back-to- Face K | Alignment of Ends U | Overall Length H | Overall Length E |
| ½ to 2½ | 0.06 -0.03 |
0.03 | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 3 to 3 ½ | 0.06 | 0.06 | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 4 | 0.06 | 0.06 | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 5 to 8 | 0.09 -0.06 |
0.06 | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.25 |
| 10 to 18 | 0.16 -0.12 |
0.12 | 0.09 | 0.38 | 0.25 | 0.06 | 0.09 | 0.25 |
| 20 to 24 | 0.25 -0.19 |
0.19 | 0.09 | 0.38 | 0.25 | 0.06 | 0.09 | 0.25 |
| 26 to 30 | 0.25 -0.19 |
0.19 | 0.12 | … | … | … | 0.19 | 0.38 |
| 32 to 48 | 0.25 -0.19 |
0.19 | 0.19 | … | … | … | 0.19 | 0.38 |
