EIL Approved Pipe Fittings And EIL Approved Flanges Manufacturer In India

  • Home
  • EIL Approved Fittings

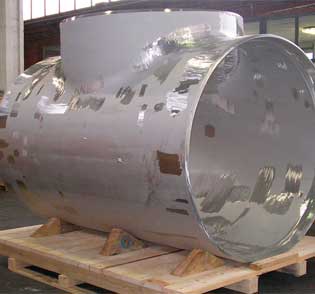

EIL Approved Fittings
EIL Approved Fittings

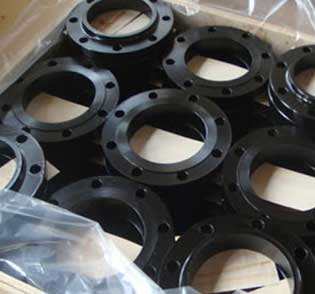

EIL Approved Flange
EIL Approved Flange

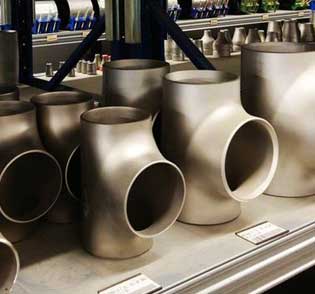

Eil Approved Elbow
Eil Approved Elbow

Specification Of EIL Approved Flange


Standard Specification : EIL Approved Fittings
Thickness: View Our Thickness: Schedule 5S, SCH10, SCH20, SCH10, SCH20, SCH30, SCHTD, SCH40, SCH60, XS, SCH80, SCH100, SCH120, SCH140, SCH160.
Standard: MSS-SP-43 Type b Fittings, JIS B2313 Fittings, ANSI B16.9 Fittings, ANSI B16.28 Fittings, JIS B2312 Fittings, MSS-SP-43 Type A Fittings
Dimensions Class: 2000#, 3000#, 6000#, 9000#
Fitting Machining Equipment: Pushing Machine, Press machine, Bending machine, Electric bevelling machine, Sand-blasting machine etc
Rating Pressure: Pressure Rating Of: 150 LBS Fittings, 300 LBS Fittings, 600 LBS Fittings, 900 LBS Fittings
Application: Water Pipeline Industry
Fabrication Industry
Chemical Industry
Nuclear Power Plant
Natural Gas Industry
Oil And Gas Industry
Coating Fitting Faces : Zinc Plated, Anti-rust Paint, Oil Black Paint, Cold and Hot Dip Galvanized, Yellow Transparent
Check Sizes: (SMLS UPTO 24”)
1/2” TO 36”
(Buttweld 8” TO 36” )

Available Type Of Eil Approved Fittings And Flanges


EIL Approved Reducer

Eil Approved Reducer

EIL Approved Elbow

Eil Approved Elbow

EIL Approved Pipe Tee

Eil Approved Pipe Tee

EIL Approved End Cap

EIL Approved End Cap

EIL Approved U Bend

Eil Approved U Bend

EIL Approved Lateral Tee

Eil Approved Lateral Tee

EIL Approved Socket Weld Flange

Eil Approved Socket Weld Flanges

EIL Approved Slip On Flange

Eil Approved Approved Slip On Flanges

EIL Approved Blind Flanges Flange

EIL Approved RTJ Flanges

EIL Approved Raised Face Flange

EIL Approved Raised Face Flanges


Eil Approved Slip On Flange Dimension


CLASS NPS Eil Approved SORF Flanges Eil Approved NPT Flanges Eil Approved SW Flanges Eil Approved Loose Flanges Eil Approved BLRF Flanges Eil Approved WN Flanges
150# ½ 1 1 2 1 2 2
¾ 2 2 2 2 2 2
1 2 2 2 2 2 3
1¼ 3 3 3 3 3 3
1½ 3 3 3 3 4 4
2 5 5 5 5 5 6
2½ 8 8 8 8 7 10
3 9 9 9 9 9 11.5
3½ 11 12 11 11 13 12
4 13 13 13 13 17 16.5
5 15 15 15 15 20 21
6 19 19 19 19 27 26
8 30 30 30 30 47 42
10 43 43 43 43 70 54
12 64 64 64 64 123 88
14 90 90 90 105 140 114
16 106 98 98 140 180 140
18 130 130 130 160 220 165
20 165 165 165 195 285 197
22 185 185 185 245 355 225
24 220 220 220 275 430 268
CLASS NPS SORF NPT Flanges SW Loose BLRF WN
300# ½ 2 2 3 2 2 2
¾ 3 3 3 3 3 3
1 3 3 3 3 4 4
1¼ 4.5 4.5 4 4.5 6 5
1½ 6.5 6.5 6 6.5 7 7
2 7 7 7 7 8 9
2½ 10 10 10 10 12 12
3 13 14 13 14.5 16 18
3½ 17 17 17 17 21 20
4 23.5 24 22 24 28 26.5
5 29 31 28 28 37 36
6 39 39 39 39 50 45
8 58 58 58 58 81 69
10 81 81 81 91 124 100
12 115 115 115 140 185 142
14 165 165 165 190 250 206
16 210 220 190 234 315 250
18 253 280 250 305 414 320
20 315 325 315 375 515 400
22 370 370 370 435 640 465
24 490 490 475 550 800 580
CLASS NPS SORF NPT Flanges SW Loose BLRF WN
600# ½ 2 2 2 2 3 3
¾ 3 3 3 3 4 4
1 4 4 4 4 4 4
1¼ 5 5 5 5 6 6
1½ 7 7 7 7 8 8
2 9 9 9 9 10 12
2½ 13 13 13 12 15 18
3 16 16 16 15 20 23
3½ 21 21 21 20 29 26
4 37 37 37 36 41 42
5 63 63 63 63 68 68
6 80 80 80 78 86 81
8 115 15 15 112 140 120
10 177 177 177 195 231 190
12 215 215 215 240 295 226
14 259 259 259 290 378 347
16 366 366 366 400 527 481
18 476 476 476 469 665 555
20 612 612 612 604 855 690
22 590 590 590 670 1000 720
24 876 876 876 866 1250 977

Stainless Steel Eil Approved Fittings Weight Chart


Stainless Steel Eil Approved Fittings Weight Chart


EIL Approved Pipe Fittings Size Chrt

Forms of Fttings Fitting Size Range Sch. of Buttweld fittings Dimension Standards
SMLS Pipe Fittings Welded Fittings
EIL Approved Return Bends 1/8” NB to 8" NB SCH 5, SCH 5S, SCH 10, SCH 10S, SCH 20, SCH 30, SCH 40S, SCH 40, SCH STD, SCH 60, SCH 80s, SCH 100, SCH 120, SCH XS, SCH XXS, SCH 160, upto 50mm in case of Welded Fittings ANSI B16.25, ASME B16.9, ASME B16.28, ANSI B16.28, ANSI B16.9, MS SP 75
EIL Approved Tees 1/8” NB to 24" NB Upto 42" NB
EIL Approved Reducers 1/8” NB to 24" NB Upto 42" NB
EIL Approved End Caps 1/8” NB to 24" NB Upto 42" NB
EIL Approved Swage Nipple 2 1/16” to 30”
EIL Approved Elbows — 45, 90 & 180 Degree 1/8” NB to 24" NB Upto 42" NB
EIL Approved Cross 1/8” NB to 8" NB

Eil Approved Pipe Fittings Pressure Rating


EIL Approved Fittings Pressure Rating
NPS
(inch)		 Pipe Sch. OD
(inch)
 Wall
Thick.
(in)
 Temperature (oF)
100 200 300 400 500 600
(Pressure Rating)
16700 16700 16700 15500 14400 13500
1" 40 1.315 0.133 2205 2205 2205 2047 1902 1783
80 1.315 0.179 3061 3061 3061 2841 2640 2475
160 1.315 0.250 4493 4493 4493 4170 3874 3632
1 1/2" 40 1.900 0.145 1629 1629 1629 1512 1404 1317
80 1.900 0.200 2303 2303 2303 2138 1986 1862
160 1.900 0.281 3362 3362 3362 3120 2899 2717
2" 40 2.375 0.154 1371 1371 1371 1272 1182 1108
80 2.375 0.218 1985 1985 1985 1843 1712 1605
160 2.375 0.344 3283 3283 3283 3047 2831 2654
3" 40 3.500 0.216 1301 1301 1301 1208 1122 1052
80 3.500 0.300 1844 1844 1844 1712 1590 1491
160 3.500 0.438 2787 2787 2787 2587 2403 2253
4" 40 4.500 0.237 1102 1102 1102 1023 950 891
80 4.500 0.337 1596 1596 1596 1482 1377 1291
160 4.500 0.531 2611 2611 2611 2424 2552 2111
5" 40 5.563 0.258 965 965 965 896 832 780
80 5.563 0.375 1428 1428 1428 1325 1231 1154
160 5.563 0.625 2474 2474 2474 2296 2133 2000
6" 40 6.625 0.280 877 877 877 814 756 709
80 6.625 0.432 1379 1379 1379 1280 1189 1115
160 6.625 0.719 2382 2382 2382 2211 2054 1925
8" 40 8.625 0.322 771 771 771 716 665 623
80 8.625 0.500 1218 1218 1218 1131 1050 985
160 8.625 0.906 2298 2298 2298 2133 1982 1858
10" 40 10.750 0.365 699 699 699 649 603 565
80 10.750 0.594 1159 1159 1159 1075 999 937
160 10.750 1.125 2289 2289 2289 2124 1974 1850
