| Specification : | Stainless Steel Forged Fittings |
| Dimensions Class: | 2000#, 3000#, 6000#, 9000# |
| Pressure: | Check Pressure Rating Of Socket, Threaded: 3000 LBS, 6000 LBS, 9000 LBS |
| Size Chart Of: | 1/8” NB to 4” NB (Screwed-Socket) |
| Forged Type : | NPT (Threaded), BSPT, BSPP. |
| Mills And Origin : | Europe, Russian, USA, India, Japanese |
| Stainless Steel Forged Fittings Standard Of: | ASME B16.47 Fittings, ASME B16.38 Fittings, MSS-SP-43 Fittings, JISB2313 Fittings, ASME B16.25 Fittings, MSS SP-75 Fittings, DIN2605 Fittings, JISB2312 Fittings, PN Fittings, AWWA C207 Fittings, BS4504 Fittings, BS1560 Fittings, BS, GB, ISO, JISB2311, IS 2062, DIN, ANSI B16.28, ASME B16.9, BS10 |
| Connection Type : | Welding |
Stainless Steel Forged Fittings

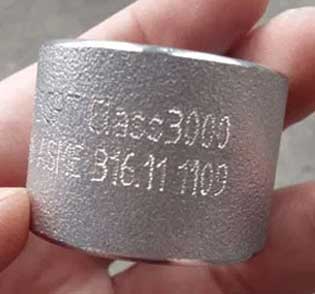

Stainless Steel 304 Forged Fittings
Forged Stainless Steel Pipe Fittings
SS forged fittings
Stainless Steel 317 Pipe Nipples
Stainless Steel 304 Forged Elbow

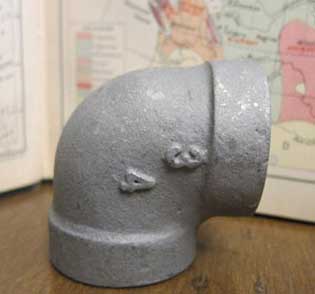

Stainless Steel 316 Threaded Pipe Fittings

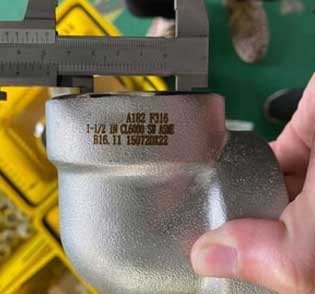

ASTM A182 Stainless Steel Forged Fittings
Stainless Forged Elbow
Stainless Steel Forged Reducers
Stainless 304 Forged Fittings
ASTM A182 SS 347 Forged Fittings
| Type | C | Mn | P | S | Si | Cr | Ni | Mb |
|---|---|---|---|---|---|---|---|---|
| 302 | 0.15 | 2.00 | 0.045 | 0.030 | 1.00 | 17.00/19.00 | 8.00/10.00 | – |
| 304* | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 | 18.00/20.00 | 8.00/10.50 | – |
| 304L* | 0.03 | 2.00 | 0.045 | 0.030 | 1.00 | 18.00/20.00 | 8.00/12.00 | – |
| 309 | 0.20 | 2.00 | 0.045 | 0.030 | 1.00 | 22.00/24.00 | 12.00/15.00 | – |
| 309S | 0.08 | 2.00 | 0.045 | – | 1.00 | 22.00/24.00 | – | – |
| 310 | 0.25 | 2.00 | 0.045 | 0.030 | 1.5 | 24.00/26.00 | 19.00/22.00 | – |
| 310S | 0.08 | 2.00 | 0.045 | 0.030 | 1.5 | 24.00/26.00 | 19.00/22.00 | – |
| 316* | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 | 16.00/18.00 | 10.00/14.00 | 2.00/3.00 |
| 316L* | 0.03 | 2.00 | 0.045 | 0.030 | 1.00 | 16.00/18.00 | 10.00/14.00 | 2.00/3.00 |
| 317 | 0.08 | 2.00 | 0.045 | 0.030 | 1.00/1.00 | 18.00/20.00 | 11.00/15.00 | 3.00/4.00 |
| 317L | 0.03 | 2.00 | 0.045 | 0.030 | 0.75 | 18.00/20.00 | 11.00/15.00 | 3.00/4.00 |
| 321 | 0.08 | 2.00 | 0.040 | 0.030 | 1.00 | 17.00/19.00 | 9.00/12.00 | 0.75/0.75 |
| 347 | 0.08 | 2.00 | 0.040 | 0.030 | 0.5/1.00 | 17.00/19.00 | 9.00/12.00 | 0.5/0.75 |
| Type | UNS | Tensile (ksi) minimum |
Yield (ksi) minimum |
Elongation minimum |
Hardness (Brinell) maximum |
Hardness (Rockwell B) maximum |
|---|---|---|---|---|---|---|
| 302 | S30200 | 75 | 30 | 40% in 2″ | 183 | 88 |
| 304* | S30400 | 75 | 30 | 40% in 2″ | 183 | 88 |
| 304L* | S30403 | 70 | 30 | 40% in 2″ | 183 | 88 |
| 309 | S30900 | 75 | 30 | 40% in 2″ | 217 | 95 |
| 309S | S30908 | 75 | 30 | 40% in 2″ | 217 | 95 |
| 310 | S31000 | 75 | 30 | 40% in 2″ | 217 | 95 |
| 310S | S31008 | 75 | 30 | 40% in 2″ | 217 | 95 |
| 316* | S31600 | 75 | 30 | 40% in 2″ | 217 | 95 |
| 316L* | S31603 | 70 | 25 | 35% in 2″ | 217 | 95 |
| 317 | S31700 | 75 | 30 | 35% in 2″ | 217 | 95 |
| 317L | S31703 | 75 | 30 | 35% in 2″ | 217 | 95 |
| 321 | S32100 | 75 | 30 | 40% in 2″ | 183 | 88 |
| 347 | S34700 | 75 | 30 | 40% in 2″ | 183 | 88 |
| STANDARD | Stainless Steel Forged Fittings |
| UNS | S31603 |
| WERKSTOFF NO. | 1.4404 / 1.4435 |
| AFNOR | Z7CND17‐11‐02 |
| EN | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
| JIS | SUS 316L |
| BS | 316S11 / 316S13 |
| GOST | 03Ch17N14M3 / 03Ch17N14M2 |
| Description | Stainless Steel Forged Fittings Class Designation | ||
|---|---|---|---|
| Class 3000 | Class 6000 | Class 9000 | |
| SW Elbows 45 degrees and NPT 90 Elbows degrees, SW Tees, NPT Crosses, SW Couplings, NPT Half-Couplings, Socket End or Pipe Caps |
1/2 – 4 | 1/2 – 2 | 1/2 – 2 |
| 1/2 – 4 | 1/2 – 2 | 1/2 – 2 | |
| 1/2 – 4 | 1/2 – 2 | 1/2 – 2 | |
| NPS by Wall Thick. |
SCH80 | SCH160 | XXS |
