Aluminium Fittings | Alloy WP 6061/ 5086 Elbow / Pipe Tee Manufacturer

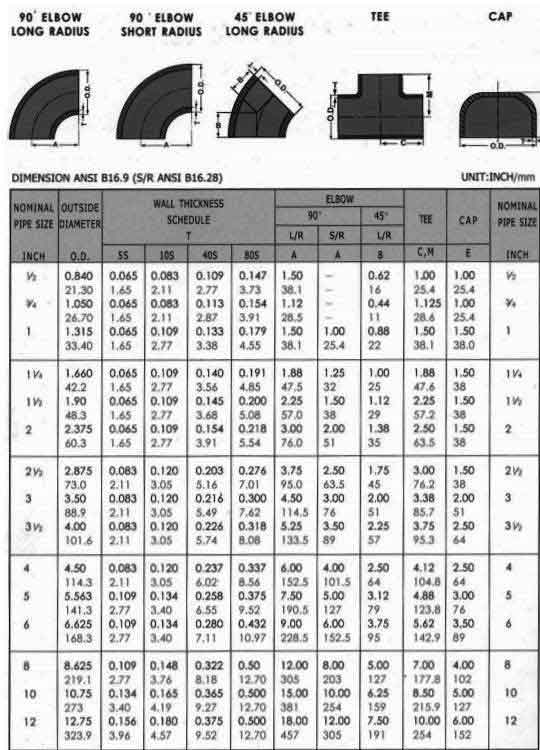

ASME B16.9 Aluminium Fittings

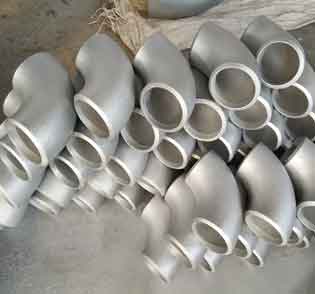

Aluminium Elbow Fitting

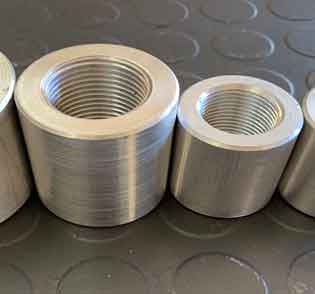

Threaded Aluminium Fittings

Standard Specification :	Aluminium Fittings
Rating Pressure:	Pressure Rating Of: 3000 LBS, 6000 LBS, 9000 LBS
Check Sizes:	(SMLS UPTO 24”) 1/2” TO 36” (Buttweld 8” TO 36” )
Thickness:	View Our Thickness: Schedule 5S, SCH10, SCH20, SCH10, SCH20, SCH30, SCHTD, SCH40, SCH60, XS, SCH80, SCH100, SCH120, SCH140, SCH160.
Coating Fitting Faces :	Oil Black Paint, Zinc Plated, Cold and Hot Dip Galvanized, Yellow Transparent, Anti-rust Paint
Standard:	JIS B2313, ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, MSS-SP-43 Type b
Dimensions Class:	2000#, 3000#, 6000#, 9000#
Application:	Chemical Industry Water Pipeline Industry Nuclear Power Plant Natural Gas Industry Fabrication Industry Oil And Gas Industry
Fitting Machining Equipment:	Electric bevelling machine, Press machine, Bending machine, Pushing Machine, Sand-blasting machine etc

Aluminium Tee

Aluminium End Cap

Aluminium Elbow

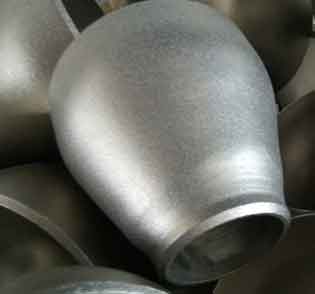

Aluminium Reducer

Aluminium Threaded Plug

Aluminium Stub End

Aluminium Socket Weld Union

Aluminium Cross

Aluminium Lateral Tee

Aluminium U Bend

Aluminium Fittings Pressure Rating
NPS (inch)	Pipe Sch.	OD (inch)	Wall Thick. (in)	Temperature (oF)
				Aluminium 100 Fittings	Aluminium 200 Fittings	Aluminium 300 Fittings	Aluminium 400 Fittings	Aluminium 500 Fittings	Aluminium 600 Fittings
				Allowable Stress (Pressure Rating)
				16700	16700	16700	15500	14400	13500
1"	40	1.315	0.133	2205	2205	2205	2047	1902	1783
	80	1.315	0.179	3061	3061	3061	2841	2640	2475
	160	1.315	0.250	4493	4493	4493	4170	3874	3632
1 1/2"	40	1.900	0.145	1629	1629	1629	1512	1404	1317
	80	1.900	0.200	2303	2303	2303	2138	1986	1862
	160	1.900	0.281	3362	3362	3362	3120	2899	2717
2"	40	2.375	0.154	1371	1371	1371	1272	1182	1108
	80	2.375	0.218	1985	1985	1985	1843	1712	1605
	160	2.375	0.344	3283	3283	3283	3047	2831	2654
3"	40	3.500	0.216	1301	1301	1301	1208	1122	1052
	80	3.500	0.300	1844	1844	1844	1712	1590	1491
	160	3.500	0.438	2787	2787	2787	2587	2403	2253
4"	40	4.500	0.237	1102	1102	1102	1023	950	891
	80	4.500	0.337	1596	1596	1596	1482	1377	1291
	160	4.500	0.531	2611	2611	2611	2424	2552	2111
5"	40	5.563	0.258	965	965	965	896	832	780
	80	5.563	0.375	1428	1428	1428	1325	1231	1154
	160	5.563	0.625	2474	2474	2474	2296	2133	2000
6"	40	6.625	0.280	877	877	877	814	756	709
	80	6.625	0.432	1379	1379	1379	1280	1189	1115
	160	6.625	0.719	2382	2382	2382	2211	2054	1925
8"	40	8.625	0.322	771	771	771	716	665	623
	80	8.625	0.500	1218	1218	1218	1131	1050	985
	160	8.625	0.906	2298	2298	2298	2133	1982	1858
10"	40	10.750	0.365	699	699	699	649	603	565
	80	10.750	0.594	1159	1159	1159	1075	999	937
	160	10.750	1.125	2289	2289	2289	2124	1974	1850

WP 6061 Aluminium Pipe Fittings Manufacturer
