| Standard Specification : | Stainless Steel 316 Pipe Fittings |
| Check Sizes: | (Buttweld 8” TO 36” ) 1/2” TO 36” (SMLS UPTO 24”) |
| Fitting Machining Equipment: | Bending machine, Pushing Machine, Sand-blasting machine, Press machine, electric bevelling machine etc |
| Rating Pressure: | Check Pressure Rating Of: 3000#, 6000#, 9000# |
| Thickness: | View Our Thickness: Schedule 5S, SCH10, SCH20, SCH10, SCH20, SCH30, SCHTD, SCH40, SCH60, XS, SCH80, SCH100, SCH120, SCH140, SCH160. |
| Dimensions Class: | Class 2000, Class 3000, Class 6000, Class 9000 |
| Stainless Steel 316 Pipe Fittings Standard: | MSS-SP-43 Type B Fittings, ANSI B16.28 Fittings, JIS B2312 Fittings, ANSI B16.9 Fittings, MSS-SP-43 Type A Fittings, MSS-SP-43 Type b Fittings, JIS B2313 Fittings |
| Coating Flange Faces : | Zinc Plated, Anti-rust Paint, Yellow Transparent, Oil Black Paint, Cold and Hot Dip Galvanized |
| Application: | Oil And Gas Industry Water Pipeline Industry Chemical Industry Natural Gas Industry Fabrication Industry Nuclear Power Plant |
| Stainless Steel 316 Pipe Fittings Theoretical Weights (Kilogram) | |||||||||
| DN | Sch10 | Sch40 | Sch80 | ||||||
| 90 Degree Elbow |
45 Degree Elbow |
Equal Tee |
90 Degree Elbow |
45 Degree Elbow |
Equal Tee |
90 Degree Elbow |
45 Degree Elbow |
Equal Tee |
|
| 8 | 0.02 | 0.01 | 0.03 | 0.03 | 0.02 | 0.06 | 0.04 | 0.03 | 0.07 |
| 10 | 0.03 | 0.02 | 0.05 | 0.03 | 0.02 | 0.03 | 0.06 | 0.04 | 0.09 |
| 15 | 0.06 | 0.03 | 0.09 | 0.08 | 0.04 | 0.10 | 0.10 | 0.05 | 0.14 |
| 20 | 0.07 | 0.03 | 0.13 | 0.08 | 0.04 | 0.17 | 0.11 | 0.05 | 0.20 |
| 25 | 0.14 | 0.08 | 0.28 | 0.15 | 0.11 | 0.29 | 0.22 | 0.14 | 0.38 |
| 32 | 0.23 | 0.11 | 0.49 | 0.26 | 0.17 | 0.59 | 0.40 | 0.23 | 0.68 |
| 40 | 0.30 | 0.17 | 0.68 | 0.40 | 0.23 | 0.86 | 0.51 | 0.29 | 1.02 |
| 50 | 0.50 | 0.25 | 0.85 | 0.70 | 0.40 | 1.28 | 0.91 | 0.59 | 1.59 |
| 65 | 0.85 | 0.48 | 1.41 | 1.40 | 0.77 | 2.19 | 1.81 | 0.99 | 3.13 |
| 80 | 1.25 | 0.63 | 1.77 | 2.20 | 1.08 | 3.31 | 2.97 | 1.50 | 4.45 |
| 90 | 1.70 | 0.75 | 2.67 | 2.83 | 1.42 | 4.08 | 4.00 | 2.00 | 5.44 |
| 100 | 2.10 | 1.08 | 3.46 | 4.47 | 2.09 | 5.27 | 6.18 | 2.81 | 7.71 |
| 150 | 5.45 | 2.72 | 8.07 | 10.89 | 5.44 | 10.99 | 16.32 | 8.16 | 13.16 |
| 200 | 10.20 | 5.33 | 15.65 | 21.54 | 10.77 | 20.91 | 33.11 | 16.56 | 28.12 |
| 250 | 18.15 | 9.75 | 26.46 | 38.56 | 19.27 | 35.38 | 51.71 | 25.86 | 49.90 |
| 300 | 25.80 | 13.62 | 39.46 | 59.42 | 29.71 | 62.14 | 79.38 | 39.69 | 83.91 |

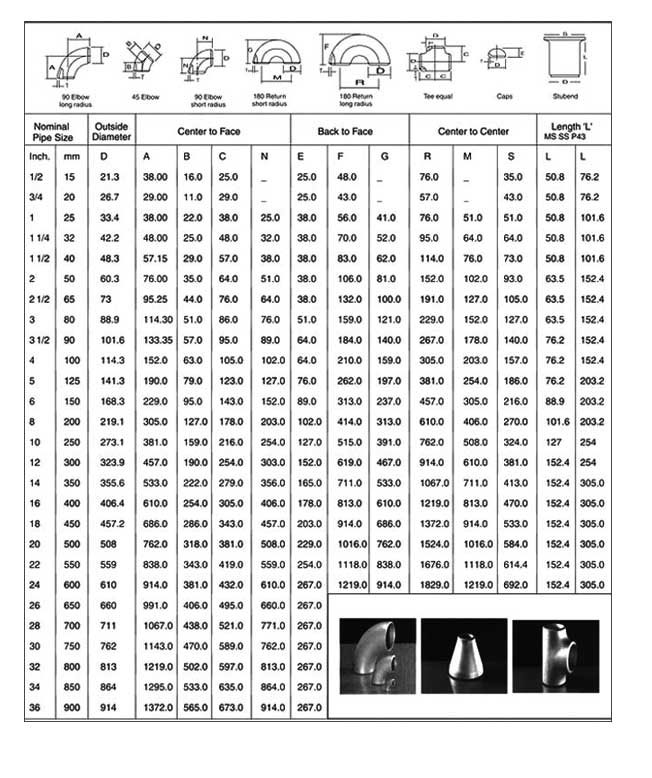

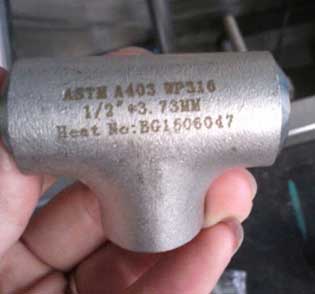

Stainless Steel 3016 BW Tee Fittings
SS ASTM A403 WP3016 Buttweld Unequal Tee
Stainless Steel 3016 Forged Concentric Reducers

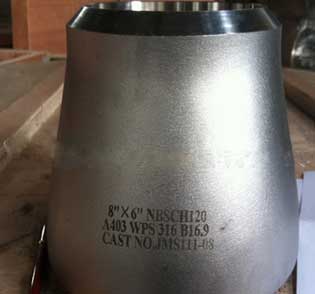

Stainless Steel 3016 Buttweld Eccentric Reducers
3016 Stainless Steel Stub End
SS 3016 Short Radius Elbow
3016 Pipe U Bend Fittings
Stainless Steel 316 Pipe Fittings

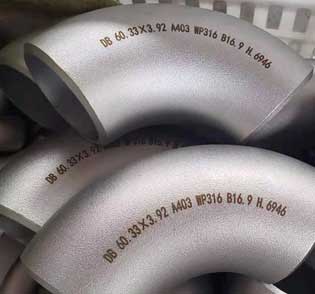

ASTM A403 WP3016 BW 45 Deg Elbow
ASTM A403 Gr WP3016 90 Degree Elbow
ASTM A403 Gr WP3016 180 Degree Elbow
Buttweld 3016 Pipe Long Radius Elbow
| STANDARD | ASTM A403 SS 316 |
| WERKSTOFF NR. | 1.4401 / 1.4436 |
| UNS | S31600 |
| JIS | SUS 316 |
| BS | 316S31 / 316S33 |
| GOST | – |
| AFNOR | Z7CND17‐11‐02 |
| EN | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
| % | 316 |
| C | 0.0-0.07 |
| Mn | 0.0-2.0 |
| Si | 0.0-1.0 |
| P | 0.0-0.05 |
| S | 0.0-0.02 |
| Cr | 16.50-18.50 |
| Mo | 2.00-2.50 |
| Ni | 10.00-13.00 |
| Ti | - |
| Fe | balance |
| Grade | Tensile Str (MPa) min |
Yield Str 0.2% Proof (MPa) min |
Elong (% in 50mm) min |
Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 316 | 515 | 205 | 40 | 95 | 217 |
| Grade |
Density (kg/m3) |
Elastic Modulus (GPa) |
Mean Co-eff of Thermal Expansion (µm/m/°C) |
Thermal Conductivity (W/m.K) |
Specific Heat 0-100°C (J/kg.K) |
Elec Resistivity (nΩ.m) |
|||
| 0-100°C | 0-315°C | 0-538°C | At 100°C | At 500°C | |||||
| SA A403 WP316 | 8000 | 193 | 15.9 | 16.2 | 17.5 | 16.3 | 21.5 | 500 | 740 |
