ASTM A420 WPL6 Elbow For Long Radius / Short Radius Pipe Bend

  • Home
  • ASTM A420 WPL6 Elbow

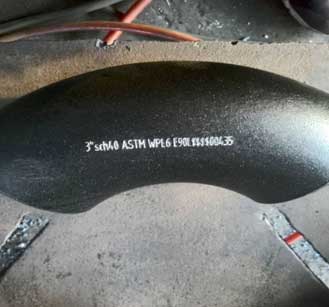

ASTM A420 WPL6 Elbow

ASTM A420 WPL6 Elbow

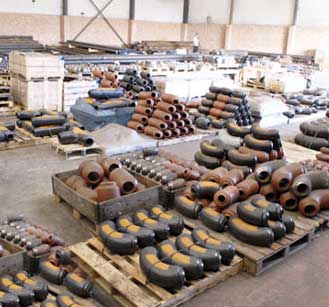

SA 420 WPL6 Elbow

SA 420 WPL6 Elbow

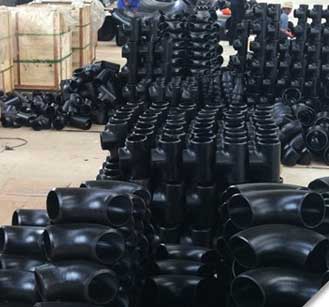

Carbon Steel WPL6 Elbow

Carbon Steel WPL6 Elbow



Carbon Steel SA 420 WPL6 Elbow Specification


Standard Specification : ASTM A420 WPL6 Elbow
Check Sizes: (SMLS UPTO 24”)
1/2” TO 36”
(Buttweld 8” TO 36” )
Rating Pressure: Pressure Rating Of: 3000 LBS, 6000 LBS, 9000 LBS
Dimensions Class: 2000#, 3000#, 6000#, 9000#
Thickness: View Our Thickness: SCH 5S, SCH10, SCH20, SCH10, SCH20, SCH30, SCHTD, SCH40, SCH60, XS, SCH80, SCH100, SCH120, SCH140, SCH160.
Standard: ANSI B16.9, MSS-SP-43 Type b, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, ANSI B16.28, JIS B2313
Coating Fitting Faces : Cold and Hot Dip Galvanized, Zinc Plated, Oil Black Paint, Anti-rust Paint, Yellow Transparent
Fitting Machining Equipment: Sand-blasting machine,Electric bevelling machine, Bending machine, Pushing Machine, Press machine etc
Application: Fabrication Industry
Oil And Gas Industry
Chemical Industry
Nuclear Power Plant
Water Pipeline Industry
Natural Gas Industry

CS WPL6 Elbow Chemical Composition


Grade C Mn P S Si Cr Mo Ni Cu V Nb
WPB 0.3 0.29-1.06 0.05 0.058 0.1min 0.4 0.15 0.4 0.4 0.08 0.02
WPC 0.35 0.29-1.06 0.05 0.058 0.1min 0.4 0.15 0.4 0.4 0.08 0.02
WP11 CL1 0.05-0.15 0.30-0.60 0.03 0.03 0.50-1.00 1.00-1.50 0.44-0.65 - - - -
WP11 CL2/3 0.05-0.20 0.30-0.80 0.04 0.04 0.50-1.00 1.00-1.50 0.44-0.65 - - - -

A420 Gr WPL6 LR 45 Degree Elbow Equivalent


Pipe PipeTee Fitting Flanges Valves Bolts & Nuts
A106 Gr A A234 Gr WPA Elbow A105 A216 Gr WCB A193 Gr B7
A194 Gr 2H
A106 Gr B ASTM A234 gr WPB Elbow A105 A216 Gr WCB
A106 Gr C A234 Gr WPC Elbow A105 A216 Gr WCB

ASTM A420 WPL6 Buttweld Elbow Pipe Fittings Types


ASTM A420 WPL6 45 degree Elbow

ASTM A420 WPL6 45 degree Elbow

Carbon Steel SA 420 WPL6 90 deg Elbow

Carbon Steel SA 420 WPL6 90 deg Elbow

ASTM A420 WPL6 Buttweld 180 Degree Elbow

ASTM A420 Buttweld 180 Degree Elbow

Carbon Steel WPL6 Long Radius Elbow

Carbon Steel WPL6 Long Radius Elbow

ASTM A420 Gr WPL6 Short Radius Elbow

ASTM A420 Gr WPL6 Short Radius Elbow

LTCS A420 WPL6 45 Deg SR Elbow

LTCS A420 45 Deg SR Elbow

SA420 WPL6 degree 90 LR Elbow

SA420 WPL6 degree 90 LR Elbow

A420 Gr WPL6 3D Elbow

A420 Gr 3D Elbow


LTCS A420 WPL6 Elbow Mechanical Properties


Tensile Requirements WPB WPC, WP11CL2 WP11CL1 　WP11CL3
Tensile Strength, min, ksi[MPa] 60-85 70-95 60-85 　75-100
(0.2% offset or 0.5% extension-under-load) [415-585] [485-655] [415-585] 　[520-690]
Yield Strength, min, ksi[MPa] 32 40 30 45
[240] [275] [205] [310]

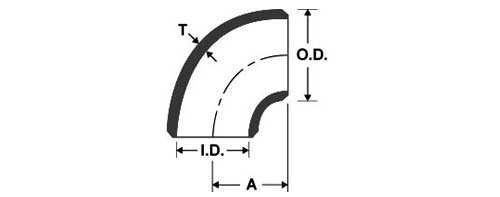

ASTM A420 WPL6 45 Degree Elbow Dimension


ASTM A420 WPL6 45 Degree Elbow Dimension

NPS OD ID Wall
Thick.		 Center
To End		 Pipe
Sch		 Weight
Pound
1 1.32 1.05 0.133 1 40 0.25
1 1/4 1.66 1.38 0.14 1.25 40 0.39
1 1/2 1.9 1.61 0.145 1.5 40 0.53
2 2.38 2.07 0.154 2 40 0.97
2 1/2 2.88 2.47 0.203 2.5 40 2
3 3.5 3.07 0.216 3 40 3
3 1/2 4 3.55 0.226 3.5 40 4.3
4 4.5 4.03 0.237 4 40 6.1
5 5.56 5.05 0.258 5 40 9.7
6 6.63 6.07 0.28 6 40 16.7
8 8.63 7.98 0.322 8 40 32.4
10 10.75 10.02 0.365 10 40 56.3
12 12.75 12 0.375 12 * 79.4
14 14 13.25 0.375 14 30 104
16 16 15.25 0.375 16 30 129
18 18 17.25 0.375 18 * 163
20 20 19.25 0.375 20 20 210
24 24 23.25 0.375 24 20 297
30 30 29.25 0.375 30 * 480
36 36 35.25 0.375 36 * 692
42 42 41.25 0.375 42 * 967
48 48 47.25 0.375 48 * 1,340

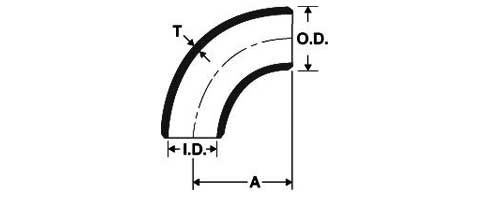

SA420 WPL6 90 Deg Elbow Dimensions Chart


SA420 WPL6 90 Deg Elbow Dimensions Chart

NPS OD ID Wall
Thick.		 Center
To End		 Pipe
Sch		 Weight
Pound
1/2 0.84 0.622 0.109 1.5 40 0.16
3/4 1.05 0.824 0.113 1.5 40 0.17
1 1.32 1.049 0.133 1.5 40 0.4
1 1/4 1.66 1.38 0.14 1.88 40 0.55
1 1/2 1.9 1.61 0.145 2.25 40 0.8
2 2.38 2.07 0.154 3 40 1.6
2 1/2 2.88 2.47 0.203 3.75 40 3.2
3 3.5 3.07 0.216 4.5 40 4.8
3 1/2 4 3.55 0.226 5.25 40 6.6
4 4.5 4.03 0.237 6 40 8.9
5 5.56 5.05 0.258 7.5 40 15.1
6 6.62 6.07 0.28 9 40 24
8 8.62 7.98 0.322 12 40 47.8
10 10.75 10.02 0.365 15 40 83.4
12 12.75 12 0.375 18 * 123
14 14 13.25 0.375 21 30 155
16 16 15.25 0.375 24 30 206
18 18 17.25 0.375 27 * 262
20 20 19.25 0.375 30 20 324
24 24 23.25 0.375 36 20 466
30 30 29.25 0.375 45 * 720
36 36 35.25 0.375 54 * 1,039
42 42 41.25 0.375 63 * 1,420
48 48 47.25 0.375 72 * 2,000

ASME B16.11 A420 Gr WPL6 Elbow Schedule Chart


Sch Size Weight (Kilogram)
1 1/4" 1 1/4" 0.5
1 1/2" 1 1/2" 0.8
2" 2" 1.4
2 1/2" 2 1/2" 2.7
3" 3" 4.2
8" 8" 20.9
4" 4" 7.9
1/2" 1/2" 0.1
3/4" 3/4" 0.1
2 1/2" 2 1/2" 1.3
1" 1" 0.2
1 1/4" 1 1/4" 0.3
1 1/2" 1 1/2" 0.4
2" 2" 0.7
4" 4" 4
10" 10" 37
12" 12" 54
5" 5" 3.3
1" 1" 0.1
3" 3" 2.1
1 1/4" 1 1/4" 0.2
2 1/2" 2 1/2" 0.7
1 1/2" 1 1/2" 0.2
2" 2" 0.4
6" 6" 10.4
4" 4" 2
6" 6" 5.1
8" 8" 10.3
5" 5" 6.7
3" 3" 1.1
10" 10" 18.3
