ASTM B366 UNS N06600 Inconel 600 Pipe Fittings For WPNCI Elbow / WPNCI Tee / WPNCI Reducer

  • Home
  • Inconel 600 Pipe Fittings
Inconel 600 Pipe Fittings
Inconel 600 Pipe Fittings

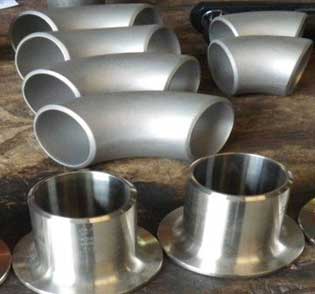

Alloy 600 Buttweld Fittings
Alloy 600 Buttweld Fittings
Werkstoff No. 2.4816 Inconel 600 Elbow
Werkstoff No. 2.4816 Inconel 600 Elbow

Werkstoff No. 2.4816 Inconel 600 Elbow Chemical Composition


Grade C Mn Si S Cu Fe Ni Cr
Inconel 600 0.15 max 1.00 max 0.50 max 0.015max 0.50 max 6.00 – 10.00 72.00 min 14.00 – 17.00

Inconel 600 Reducer Mechanical Properties


Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Inconel 600 8.47 g/cm3 1413 °C (2580 °F) Psi – 95,000 , MPa – 655 Psi – 45,000 , MPa – 310 40 %

What Is Inconel 600 Pipe Fittings?


Generally, both a chemical analysis and product analysis is to be carried out on the ASTM B366 UNS N06600 Fittings is required to conform to the prescribed chemical composition of the specification in addition to its tensile properties, tension test, heat treatment, and dimensions. A perk of using the Alloy 600 Forged Fittings is that they are designed for use in cryogenic temperature settings up to elevated temperatures in the range of 2000 deg F. In addition to improving its use in elevated temperature settings, nickel added in the alloy of Inconel 600 Pipe Fitting is also responsible for superior corrosion resistance against chloride ion stress related corrosion cracking along with several organic and inorganic compounds as well as excellent resistance to alkaline solutions.


Alloy 600 Forged Fittings Equivalent


STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
Inconel 600 2.4816 N06600 NCF 600 NA 13 МНЖМц 28-2,5-1,5 NC15FE11M NiCr15Fe

Alloy 600 Buttweld Fittings Specification


Standard Specification : Inconel 600 Pipe Fittings
Coating Fitting Faces : Cold and Hot Dip Galvanized, Zinc Plated, Yellow Transparent, Oil Black Paint, Anti-rust Paint
Fitting Machining Equipment: Press machine, electric bevelling machine, Bending machine, Pushing Machine, Sand-blasting machine etc
Rating Pressure: Pressure Rating Of: 3000 LBS, 6000 LBS, 9000 LBS
Check Sizes: (SMLS UPTO 24”)
1/2” TO 36”
(Buttweld 8” TO 36” )
Thickness: View Our Thickness: Schedule 5S, SCH10, SCH20, SCH10, SCH20, SCH30, SCHTD, SCH40, SCH60, XS, SCH80, SCH100, SCH120, SCH140, SCH160.
Standard: MSS-SP-43 Type B Fittings, ANSI B16.28 Fittings, JIS B2312 Fittings, JIS B2313 Fittings, ANSI B16.9 Fittings, MSS-SP-43 Type A Fittings, MSS-SP-43 Type b Fittings
Dimensions Class: 2000#, 3000#, 6000#, 9000#
Application: Fabrication Industry
Natural Gas Industry
Nuclear Power Plant
Chemical Industry
Water Pipeline Industry
Oil And Gas Industry

Inconel 600 Seamless Pipe Fittings Pressure Ratings


Inconel 600 Pipe Fittings Pressure Rating
NPS
(inch)		 Pipe Sch. OD
(inch)
 Wall
Thick.
(in)
 Temperature (oF)
100 200 300 400 500 600
Allowable Stress (Pressure Rating)
16700 16700 16700 15500 14400 13500
1" 40 1.315 0.133 2205 2205 2205 2047 1902 1783
80 1.315 0.179 3061 3061 3061 2841 2640 2475
160 1.315 0.250 4493 4493 4493 4170 3874 3632
1 1/2" 40 1.900 0.145 1629 1629 1629 1512 1404 1317
80 1.900 0.200 2303 2303 2303 2138 1986 1862
160 1.900 0.281 3362 3362 3362 3120 2899 2717
2" 40 2.375 0.154 1371 1371 1371 1272 1182 1108
80 2.375 0.218 1985 1985 1985 1843 1712 1605
160 2.375 0.344 3283 3283 3283 3047 2831 2654
3" 40 3.500 0.216 1301 1301 1301 1208 1122 1052
80 3.500 0.300 1844 1844 1844 1712 1590 1491
160 3.500 0.438 2787 2787 2787 2587 2403 2253
4" 40 4.500 0.237 1102 1102 1102 1023 950 891
80 4.500 0.337 1596 1596 1596 1482 1377 1291
160 4.500 0.531 2611 2611 2611 2424 2552 2111
5" 40 5.563 0.258 965 965 965 896 832 780
80 5.563 0.375 1428 1428 1428 1325 1231 1154
160 5.563 0.625 2474 2474 2474 2296 2133 2000
6" 40 6.625 0.280 877 877 877 814 756 709
80 6.625 0.432 1379 1379 1379 1280 1189 1115
160 6.625 0.719 2382 2382 2382 2211 2054 1925
8" 40 8.625 0.322 771 771 771 716 665 623
80 8.625 0.500 1218 1218 1218 1131 1050 985
160 8.625 0.906 2298 2298 2298 2133 1982 1858
10" 40 10.750 0.365 699 699 699 649 603 565
80 10.750 0.594 1159 1159 1159 1075 999 937
160 10.750 1.125 2289 2289 2289 2124 1974 1850

ASTM B366 UNS N06600 Fittings Types


Inconel 600 Stub End

Inconel 600 Stub End

Inconel 600 Threaded Plug

Inconel 600 Threaded Plug

Inconel 600 Socket Weld Union

Inconel 600 Socket Weld Union

Inconel 600 Cross

Inconel 600 Cross

Inconel 600 Elbow

Inconel 600 Elbow

Inconel 600 Tee

Inconel 600 Tee

Inconel 600 Reducer

Inconel 600 Reducer

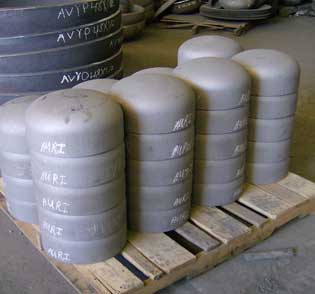

Inconel 600 End Cap

Inconel 600 End Cap

Inconel 600 U Bend

Inconel 600 U Bend

Inconel 600 Lateral Tee

Inconel 600 Lateral Tee


ASTM B366 UNS N06600 Pipe Fittings Physical Properties


Density lb/in³ 0.305
Mg/m³ 8.44
Specific Heat Btu/lb°F (J/kg°C) 0.106
J/kg-°C 444
Melting Range °F 2470-2575
°C 1354-1413
Electrical Resistivity ohm-circ mil/ft 620
μΩ-m 1.03
Curie Temperature °F -192
°C -124
Permeability 200 oersted (15.9 kA/m) 1.01
