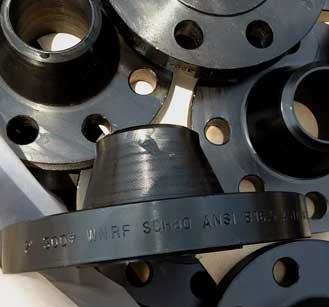

Carbon Steel Flanges

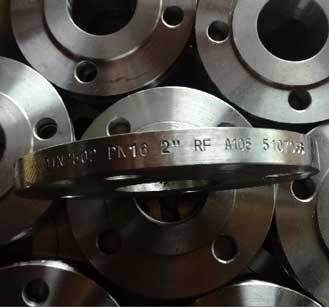

ASME B16.5 CS Flanges

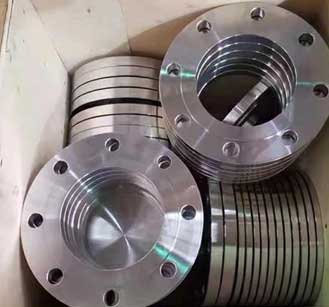

Carbon Steel Pipe Flanges
Specification : | Carbon Steel Flanges |
Common Types of Flange : | Flanges 150 LB WNRF Class 300 RTJ 600# BLRF Class 900 SORF |
Connect Type: | RF, FF, RTJ,LMF, SMF, LJF |
Size Chart : | 1/2″ (15 NB) To 48″ (1200NB) |
Production Process: | Machined, Forged, Heat Treated |
Coating Flange Faces : | Zinc Plated, Yellow Transparent, Anti-rust Paint, Cold and Hot Dip Galvanized, Oil Black Paint |
Supporting Flange Material: | Gasket, Flange Bolts, Ring Joint |
Application: | Oil And Gas Industry Natural Gas Industry Nuclear Power Plant Fabrication Industry Chemical Industry Water Pipeline Industry |
Carbon Steel Flanges Design For Size: | EN Flanges, ASA Flanges, ASME Flanges, DIN Flanges, JIS Flanges, ANSI Flanges, BS Flanges, PN Flanges |
Flange Machining Equipment: | Bending machine, Pushing Machine, Sand-blasting machine, Press machine, electric bevelling machine etc |
Standards: | ISO Flanges, GOST Flanges, UNI Flanges, AWWA Flanges, MSS SP44 Flanges, ASME B16.5 Flanges, ASME B16.38 Flanges, EN-1092 Flanges, BS10 Flanges, DIN Flanges, PN Flanges, JIS Flanges, ASME B16.47 (Series A, Series B) Flanges |
Pressure Rating Table: | Class 150 LBS, Class 300 LBS, Class 600 LBS, Class 900 LBS, Class 1500 LBS, Class 2500 LBS |
Elements | Composition, % |
Carbon [C] | ≤0.35 |
Manganese [Mn] | 0.60-1.05 |
Phosphorus [P] | ≤0.35 |
Sulfur [S] | ≤0.40 |
Silicon [Si] | 0.10-0.35 |
Copper [Cu] | ≤0.40 |
Nickel [Ni] | ≤0.40 |
Chromium [Cr] | ≤0.30 |
Molybdenum [Mo] | ≤0.12 |
Vanadium [V] | ≤0.08 |
Tensile Strength minimum | Yield Strength minimum | Elongation minimum | Reduction of Area,minimum | Hardness | ||
---|---|---|---|---|---|---|
MPa | ksi | MPa | ksi | % | % | HBW |
485 | 70 | 250 | 36 | 22 | 30 | 137-187 |
Density (lb / cu. in.) | 0.284 |
Specific Gravity | 7.9 |
Specific Heat (Btu/lb/Deg F - [32-212 Deg F]) | 0.107 |
Melting Point (Deg F) | 2740 |
Thermal Conductivity | 360 |
Mean Coeff Thermal Expansion | 6.7 |
Modulus of Elasticity Tension | 30 |
Modulus of Elasticity Torsion | 11 |
Carbon Steel Flanges Weights by Pressure Class and Size | ||||||||||||||||||
Pipe Size | Carbon Class 150 | Carbon Class 300 | Carbon Class 600 | Carbon Class 900 | Carbon Class 1500 | Carbon Class 2500 | ||||||||||||
WN | SO | BLD | WN | SO | BLD | WN | SO | BLD | WN | SO | BLD | WN | SO | BLD | WN | SO | BLD | |
1/2" | 2 | 1 | 1 | 2 | 1 | 1 | 2 | 2 | 2 | Carbon 1500 Class Weight | 5 | 4 | 4 | 7 | 7 | 7 | ||
3/4" | 2 | 2 | 2 | 3 | 3 | 3 | 4 | 3 | 3 | Carbon 1500 Class Weight | 6 | 5 | 6 | 8 | 8 | 8 | ||
1" | 3 | 2 | 2 | 4 | 3 | 3 | 4 | 4 | 4 | Carbon 1500 Class Weight | 9 | 8 | 8 | 12 | 11 | 11 | ||
1 1/2" | 4 | 3 | 3 | 7 | 6 | 6 | 8 | 7 | 8 | Carbon 1500 Class Weight | 13 | 12 | 13 | 25 | 22 | 23 | ||
2" | 6 | 5 | 5 | 9 | 7 | 8 | 12 | 9 | 10 | Carbon 1500 Class Weight | 25 | 25 | 25 | 42 | 37 | 39 | ||
2 1/2" | 8 | 7 | 7 | 12 | 10 | 12 | 18 | 13 | 15 | Carbon 1500 Class Weight | 36 | 36 | 35 | 52 | 55 | 56 | ||
3" | 10 | 8 | 9 | 15 | 13 | 16 | 23 | 16 | 20 | 31 | 26 | 29 | 48 | 48 | 48 | 94 | 83 | 86 |
4" | 15 | 13 | 17 | 25 | 22 | 27 | 42 | 37 | 41 | 53 | 53 | 54 | 73 | 73 | 73 | 145 | 125 | 130 |
5" | 19 | 15 | 20 | 32 | 28 | 35 | 68 | 63 | 68 | 86 | 83 | 87 | 130 | 130 | 140 | 245 | 210 | 225 |
6" | 24 | 19 | 26 | 42 | 39 | 50 | 81 | 80 | 86 | 110 | 110 | 115 | 165 | 165 | 160 | 380 | 325 | 345 |
8" | 39 | 30 | 45 | 67 | 58 | 81 | 120 | 115 | 140 | 175 | 170 | 200 | 275 | 260 | 300 | 580 | 485 | 530 |
10" | 52 | 43 | 70 | 91 | 81 | 124 | 190 | 170 | 230 | 260 | 245 | 290 | 455 | 435 | 510 | 1075 | 930 | 1025 |
12" | 80 | 64 | 110 | 140 | 115 | 185 | 225 | 200 | 295 | 325 | 325 | 415 | 690 | 580 | 690 | 1525 | 1100 | 1300 |
14" | 110 | 90 | 140 | 180 | 165 | 250 | 280 | 230 | 355 | 400 | 400 | 520 | 940 | NA | 975 | NA | NA | NA |
16" | 140 | 98 | 180 | 250 | 190 | 295 | 390 | 330 | 495 | 495 | 425 | 600 | 1250 | NA | 1300 | NA | NA | NA |
18" | 150 | 130 | 220 | 320 | 250 | 395 | 475 | 400 | 630 | 680 | 600 | 850 | 1625 | NA | 1750 | NA | NA | NA |
20" | 180 | 165 | 285 | 400 | 315 | 505 | 590 | 510 | 810 | 830 | 730 | 1075 | 2050 | NA | 2225 | NA | NA | NA |
22" | 225 | 185 | 355 | 465 | 370 | 640 | 720 | 590 | 1000 | NA | NA | NA | NA | NA | NA | NA | NA | NA |
24" | 260 | 220 | 430 | 580 | 475 | 790 | 830 | 730 | 1250 | 1500 | 1400 | 2025 | 3325 | NA | 3625 | NA | NA | NA |
Conversion Data | ||||
• 1 inch = 25.44 millimeter | • 1 millimeter = 0.03937 inch | • 1 lb/ft^2 = 47.88 Pa | • 1 psi = 6.8948 Pa | • x°F = (5/9)(x-32)°C |
• 1 pound = 0.45359 Kilogram | • 1 Kg = 2.20462 pounds | • 1 Pa = 0.020885 lb/ft^2 | • 1 Pa = 0.00014504 psi | • x°C = (9/5)x + 32°F |
Size in In. | Size in millimeter | Outer Diameter | Flange Thick. | RF Diameter | RF Height | PCD | No of Bolts | Bolt Size UNC | Machine Bolt Length | RF Stud Length | Hole Size | ISO Stud Size | Weight in kilogram |
A | B | C | D | E | |||||||||
1/2 | 15 | 90 | 9.6 | 34.9 | 2 | 60.3 | 4 | 1/2 | 50 | 55 | 5/8 | M14 | 0.9 |
3/4 | 20 | 100 | 11.2 | 42.9 | 2 | 69.9 | 4 | 1/2 | 50 | 65 | 5/8 | M14 | 0.9 |
1 | 25 | 110 | 12.7 | 50.8 | 2 | 79.4 | 4 | 1/2 | 55 | 65 | 5/8 | M14 | 0.9 |
1 1/4 | 32 | 115 | 14.3 | 63.5 | 2 | 88.9 | 4 | 1/2 | 55 | 70 | 5/8 | M14 | 1.4 |
1 1/2 | 40 | 125 | 15.9 | 73 | 2 | 98.4 | 4 | 1/2 | 65 | 70 | 5/8 | M14 | 1.8 |
2 | 50 | 150 | 17.5 | 92.1 | 2 | 120.7 | 4 | 5/8 | 70 | 85 | 3/4 | M16 | 2.3 |
2 1/2 | 65 | 180 | 20.7 | 104.8 | 2 | 139.7 | 4 | 5/8 | 75 | 90 | 3/4 | M16 | 3.2 |
3 | 80 | 190 | 22.3 | 127 | 2 | 152.4 | 4 | 5/8 | 75 | 90 | 3/4 | M16 | 4.1 |
3 1/2 | 90 | 215 | 22.3 | 139.7 | 2 | 177.8 | 8 | 5/8 | 75 | 90 | 3/4 | M16 | 5.9 |
4 | 100 | 230 | 22.3 | 157.2 | 2 | 190.5 | 8 | 5/8 | 75 | 90 | 3/4 | M16 | 7.7 |
5 | 125 | 255 | 22.3 | 185.7 | 2 | 215.9 | 8 | 3/4 | 85 | 95 | 7/8 | M20 | 9.1 |
6 | 150 | 280 | 23.9 | 215.9 | 2 | 241.3 | 8 | 3/4 | 85 | 100 | 7/8 | M20 | 11.8 |
8 | 200 | 345 | 27 | 269.9 | 2 | 298.5 | 8 | 3/4 | 90 | 110 | 7/8 | M20 | 20.5 |
10 | 250 | 405 | 28.6 | 323.8 | 2 | 362 | 12 | 7/8 | 100 | 115 | 1 | M24 | 32 |
12 | 300 | 485 | 30.2 | 381 | 2 | 431.8 | 12 | 7/8 | 100 | 120 | 1 | M24 | 50 |
14 | 350 | 535 | 33.4 | 412.8 | 2 | 476.3 | 12 | 1 | 115 | 135 | 1 1/8 | M27 | 64 |
16 | 400 | 595 | 35 | 469.9 | 2 | 539.8 | 16 | 1 | 115 | 135 | 1 1/8 | M27 | 82 |
18 | 450 | 635 | 38.1 | 533.4 | 2 | 577.9 | 16 | 1 1/8 | 125 | 145 | 1 1/4 | M30 | 100 |
20 | 500 | 700 | 41.3 | 584.2 | 2 | 635 | 20 | 1 1/8 | 140 | 160 | 1 1/4 | M30 | 130 |
24 | 600 | 815 | 46.1 | 692.2 | 2 | 749.3 | 20 | 1 1/4 | 150 | 170 | 1 3/8 | M33 | 196 |
Grade |
Yield Strength (0.2% offset),minimum, ksi [MPa] |
Tensile Strength, min, ksi [MPa] |
Elongation in 2 in, or 50 mm, minimeter % |
---|---|---|---|
42 [290] |
60 [415] |
20 |
|
F46 |
46 [315] |
60 [415] |
20 |
F48 |
48 [330] |
62 [420] |
20 |
F50 |
50 [345] |
64 [440] |
20 |
52 [360] |
66 [455] |
20 |
|
F56 |
56 [385] |
68 [470] |
20 |
60 [415] |
75 [515] |
20 |
|
65 [450] |
77 [530] |
20 |
|
70 [485] |
82 [565] |
18 |
