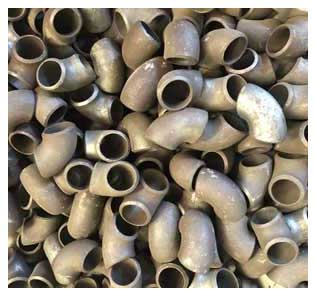

IBR Pipe Fittings
IBR Pipe Fittings

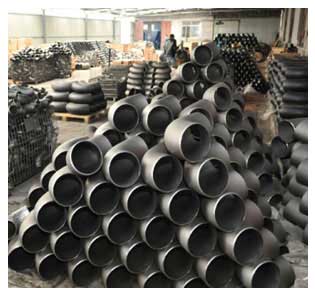

IBR Approved Fittings
IBR Approved Fittings

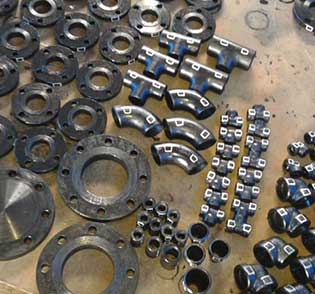

IBR Approved Elbow
IBR Approved Elbow

IBR Approved Fittings Specification


Standard Specification : IBR Pipe Fittings
Check Sizes: (SMLS UPTO 24”)
1/2” TO 36”
(Buttweld 8” TO 36” )
Rating Pressure: Pressure Rating Of: 3000 LBS, 6000 LBS, 9000 LBS
Application: Oil And Gas Industry
Water Pipeline Industry
Fabrication Industry
Chemical Industry
Nuclear Power Plant
Natural Gas Industry
Coating Fitting Faces : Oil Black Paint, Cold and Hot Dip Galvanized, Zinc Plated, Anti-rust Paint, Yellow Transparent
Thickness: View Our Thickness: Schedule 5S, SCH10, SCH20, SCH10, SCH20, SCH30, SCHTD, SCH40, SCH60, XS, SCH80, SCH100, SCH120, SCH140, SCH160.
Standard: JIS B2313 Fittings, ANSI B16.9 Fittings, MSS-SP-43 Type b Fittings, ANSI B16.28 Fittings, JIS B2312 Fittings, MSS-SP-43 Type A Fittings
Dimensions Class: 2000#, 3000#, 6000#, 9000#
Fitting Machining Equipment: Bending machine, Electric bevelling machine, Pushing Machine, Press machine, Sand-blasting machine etc

Type Of IBR Carbon Steel Pipe Fittings


IBR Approved Stub End

IBR Approved Stub End

IBR Approved Threaded Plug

IBR Approved Threaded Plug

IBR Approved Socket Weld Union

IBR Approved Socket Weld Union

IBR Approved Cross

IBR Approved Cross

IBR Approved Elbow

IBR Approved Elbow

IBR Approved Tee

IBR Approved Tee

IBR Approved Reducer

IBR Approved Reducer

IBR Approved End Cap

IBR Approved End Cap

IBR Approved U Bend

IBR Approved U Bend

IBR Approved Lateral Tee

IBR Approved Lateral Tee


IBR Approved Elbow Pressure Rating


IBR Pipe Fittings Pressure Rating
NPS
(inch)		 Pipe Sch. OD
(inch)
 Wall
Thick.
(in)
 Temperature (oF)
100 200 300 400 500 600
(Pressure Rating)
16700 16700 16700 15500 14400 13500
1" 40 1.315 0.133 2205 2205 2205 2047 1902 1783
80 1.315 0.179 3061 3061 3061 2841 2640 2475
160 1.315 0.250 4493 4493 4493 4170 3874 3632
1 1/2" 40 1.900 0.145 1629 1629 1629 1512 1404 1317
80 1.900 0.200 2303 2303 2303 2138 1986 1862
160 1.900 0.281 3362 3362 3362 3120 2899 2717
2" 40 2.375 0.154 1371 1371 1371 1272 1182 1108
80 2.375 0.218 1985 1985 1985 1843 1712 1605
160 2.375 0.344 3283 3283 3283 3047 2831 2654
3" 40 3.500 0.216 1301 1301 1301 1208 1122 1052
80 3.500 0.300 1844 1844 1844 1712 1590 1491
160 3.500 0.438 2787 2787 2787 2587 2403 2253
4" 40 4.500 0.237 1102 1102 1102 1023 950 891
80 4.500 0.337 1596 1596 1596 1482 1377 1291
160 4.500 0.531 2611 2611 2611 2424 2552 2111
5" 40 5.563 0.258 965 965 965 896 832 780
80 5.563 0.375 1428 1428 1428 1325 1231 1154
160 5.563 0.625 2474 2474 2474 2296 2133 2000
6" 40 6.625 0.280 877 877 877 814 756 709
80 6.625 0.432 1379 1379 1379 1280 1189 1115
160 6.625 0.719 2382 2382 2382 2211 2054 1925
8" 40 8.625 0.322 771 771 771 716 665 623
80 8.625 0.500 1218 1218 1218 1131 1050 985
160 8.625 0.906 2298 2298 2298 2133 1982 1858
10" 40 10.750 0.365 699 699 699 649 603 565
80 10.750 0.594 1159 1159 1159 1075 999 937
160 10.750 1.125 2289 2289 2289 2124 1974 1850

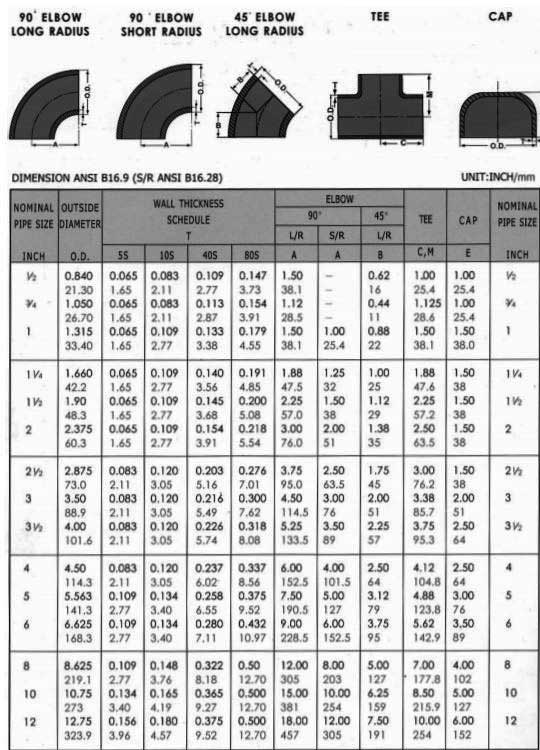

IBR Stainless Steel Pipe Fittings Dimension


IBR Stainless Steel Pipe Fittings Dimension


IBR Alloy Steel Pipe Fittings Weight


IBR Alloy Steel Pipe Fittings Weight


IBR Forged Socket Weld Fittings Size Chart

Forms of Fttings Fitting Size Range Sch. of Buttweld fitting Dimension Standards
SMLS Pipe Fitting Welded Fitting
IBR Approved Return Bends 1/8” NB to 8" NB SCH 5, SCH 5S, SCH 10, SCH 10S, SCH 20, SCH 30, SCH 40S, SCH 40, SCH STD, SCH 60, SCH 80s, SCH 100, SCH 120, SCH XS, SCH XXS, SCH 160, upto 50mm in case of Welded Fitting ANSI B16.25, ASME B16.9, ASME B16.28, ANSI B16.28, ANSI B16.9, MS SP 75
IBR Approved End Caps 1/8” NB to 24" NB Upto 42" NB
IBR Approved Cross 1/8” NB to 8" NB
IBR Approved Swage Nipple 2 1/16” to 30”
IBR Approved Tees 1/8” NB to 24" NB Upto 42" NB
IBR Approved Reducers 1/8” NB to 24" NB Upto 42" NB
IBR Approved Elbows — 45, 90 & 180 Degree 1/8” NB to 24" NB Upto 42" NB
