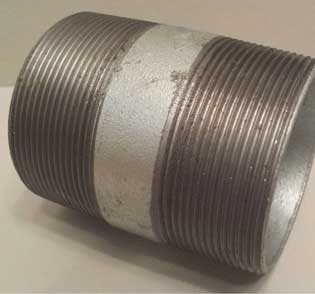

Galvanised Fittings
Galvanised Fittings

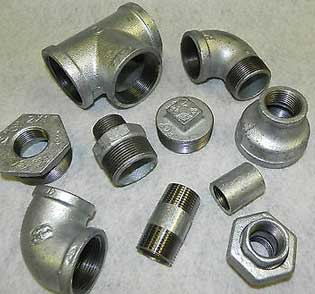

Gi Pipe Fittings
Gi Pipe Fittings

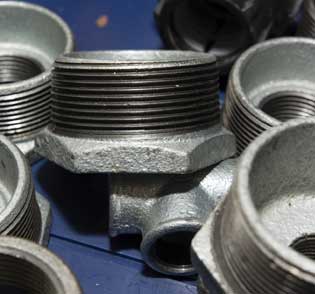

Galv Elbow Fittings
Galv Elbow Fitting

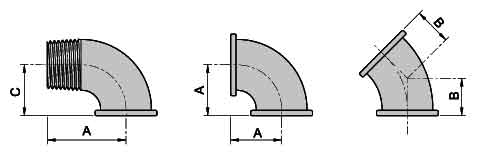

Galvanised Pipe Fittings Dimensions


Galvanised Pipe Fittings Dimensions

Galvanised Reducing Elbow Dimension


Galvanised Reducing Elbow Dimension

NPS
in millimeter		 A
in millimeter		 D
in millimeter
20x15 34 35
25x20 38 40
25x15 35 39
32x15 37 42
32x20 39 44
32x25 40 44
40x15 38 46
40x20 40 46
40x25 44 47
40x32 49 50
50x15 41 51
50x20 41 51
50x25 46 55
50x32 49 55
50x40 53 57
65x15 46 62
65x20 48 63
65x25 49 63
65x32 54 66
65x40 57 66
65x50 63 69
80x15 47 70
80x20 48 70
80x25 52 71
80x32 57 73
80x40 60 72
80x50 65 75
80x65 73 76
100x15 52 80
100x20 55 82
100x25 56 87
100x32 64 86
100x40 68 89
100x50 74 90
100x65 81 95
100x80 86 96

Galvanised Reducing Tee Dimension


Galvanised Reducing Tee Dimension

NPS
in millimeter		 A
in millimeter		 B
in millimeter		 C
in millimeter		 D
in millimeter
20x15 33 30 30 30
25x15 33 30 37 42
25x20 35 36 37 42
32x15 36 30 42 51
32x20 37 35 44 51
32x25 40 42 45 51
40x15 38 30 47 58
40x20 40 36 47 58
40x25 43 42 48 58
40x32 47 51 48 58
50x15 38 30 52 71
50x20 41 36 53 71
50x25 45 41 54 71
50x32 45 51 55 71
50x40 52 58 58 71
65x50 62 71 56 88
80x15 50 30 67 100
80x20 51 36 71 100
80x25 51 41 71 100
80x32 56 51 72 100
80x40 58 58 71 100
80x50 64 71 71 100
80x65 72 88 72 100
100x15 52 30 82 126
100x20 53 36 82 126
100x25 57 41 83 126
100x32 62 51 87 126
100x40 65 58 87 126
100x50 72 71 89 126
100x65 78 88 89 126

Galvanised Pipe Nipple Dimension


Galvanised Pipe Nipple Dimension

NPS
in millimeter		 A
in millimeter		 D
in millimeter
15 49 27
20 54 30
25 61 38
32 66 47
40 71 54
50 81 67
65 90 84
80 99 96
100 120 123
150 152 193

Galvanised Union Dimension


Galvanised Union Dimension

NPS
in millimeter		 A
in millimeter		 B
in millimeter		 D
in millimeter
15 53 26 30
20 58 55 36
25 68 64 41
32 73 75 51
40 74 84 58
50 79 95 71
65 89 113 88
80 99 131 100
100 110 153 127
150 146 223 182

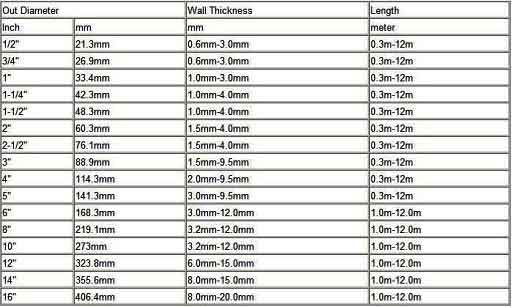

50mm Gi Fittings Weight Chart


50mm Gi Fittings Weight Chart


Industrial Galvanised Pipe Fittings Specification


Standard Specification : Galvanised Fittings
Rating Pressure: Pressure Rating Of: 3000 LBS, 6000 LBS, 9000 LBS
Check Sizes: (SMLS UPTO 24”)
1/2” TO 36”
(Buttweld 8” TO 36” )
Thickness: View Our Thickness: Schedule 5S, SCH10, SCH20, SCH10, SCH20, SCH30, SCHTD, SCH40, SCH60, XS, SCH80, SCH100, SCH120, SCH140, SCH160.
Standard: MSS-SP-43 Type A Fittings, MSS-SP-43 Type B Fittings, JIS B2313 Fittings, ANSI B16.9 Fittings, ANSI B16.28 Fittings, JIS B2312 Fittings, MSS-SP-43 Type b Fittings
Dimensions Class: 2000#, 3000#, 6000#, 9000#
Application: Natural Gas Industry
Fabrication Industry
Chemical Industry
Water Pipeline Industry
Nuclear Power Plant
Oil And Gas Industry
Coating Fitting Faces : Cold and Hot Dip Galvanized, Yellow Transparent, Oil Black Paint, Zinc Plated, Anti-rust Paint
Fitting Machining Equipment: Press machine, electric bevelling machine, Bending machine, Pushing Machine, Sand-blasting machine etc

Galvanised Steel Fittings Pressure Rating


Galvanised Fittings Pressure Rating (psig)
NPS
(inch)		 Pipe Sch. OD
(inch)
 Wall
Thick.
(in)
 Temperature (oF)
100 200 300 400 500 600
Allowable Stress (Pressure Rating)
16700 16700 16700 15500 14400 13500
1" 40 1.315 0.133 2205 2205 2205 2047 1902 1783
80 1.315 0.179 3061 3061 3061 2841 2640 2475
160 1.315 0.250 4493 4493 4493 4170 3874 3632
1 1/2" 40 1.900 0.145 1629 1629 1629 1512 1404 1317
80 1.900 0.200 2303 2303 2303 2138 1986 1862
160 1.900 0.281 3362 3362 3362 3120 2899 2717
2" 40 2.375 0.154 1371 1371 1371 1272 1182 1108
80 2.375 0.218 1985 1985 1985 1843 1712 1605
160 2.375 0.344 3283 3283 3283 3047 2831 2654
3" 40 3.500 0.216 1301 1301 1301 1208 1122 1052
80 3.500 0.300 1844 1844 1844 1712 1590 1491
160 3.500 0.438 2787 2787 2787 2587 2403 2253
4" 40 4.500 0.237 1102 1102 1102 1023 950 891
80 4.500 0.337 1596 1596 1596 1482 1377 1291
160 4.500 0.531 2611 2611 2611 2424 2552 2111
5" 40 5.563 0.258 965 965 965 896 832 780
80 5.563 0.375 1428 1428 1428 1325 1231 1154
160 5.563 0.625 2474 2474 2474 2296 2133 2000
6" 40 6.625 0.280 877 877 877 814 756 709
80 6.625 0.432 1379 1379 1379 1280 1189 1115
160 6.625 0.719 2382 2382 2382 2211 2054 1925
8" 40 8.625 0.322 771 771 771 716 665 623
80 8.625 0.500 1218 1218 1218 1131 1050 985
160 8.625 0.906 2298 2298 2298 2133 1982 1858
10" 40 10.750 0.365 699 699 699 649 603 565
80 10.750 0.594 1159 1159 1159 1075 999 937
160 10.750 1.125 2289 2289 2289 2124 1974 1850

Galvanised Plumbing Fittings Size Chart


Products Size
Galvanised Cups 1/2'' NB to 14'' NB
Galvanised Stub Ends 1/2'' NB to 14'' NB
Galvanised Elbow 1/2'' NB to 14'' NB
Galvanised Reducers 1'' NB to 14'' NB
Galvanised Tees 1'' NB to 14'' NB
Galvanised Socket Weld Upto 2'' NB
Galvanised Nipples Upto 4''
Galvanised Couplings Upto 4''NB

Galvanised Grooved Fittings Types


Galvanised Pipe Reducer

Galvanised Pipe Reducer

Galvanised Pipe Elbow

Galvanised Pipe Elbow

Galvanised Pipe Tee

Galvanised Pipe Tee

Galvanised Pipe End Cap

Galvanised Pipe End Cap

Galvanised Pipe U Bend

Galvanised Pipe U Bend

Galvanised Pipe Lateral Tee

Galvanised Pipe Lateral Tee

Galvanised Pipe Socket Weld Union

Galvanised Pipe Socket Weld Union

Galvanised Pipe Cross

Galvanised Pipe Cross

Galvanised Pipe Stub End

Galvanised Pipe Stub End

Galvanised Pipe Threaded Plug

Galvanised Pipe Threaded Plug


Galvanised Npt Fittings Chemical Composition


Carbon 0.20
Manganese 1.30
Sulphur 0.040
phosphorus 0.040
