IS 1879 Cast Iron Fittings And EN 1563 Ci Flanges Manufacturers In India

  • Home
  • Cast Iron Fittings

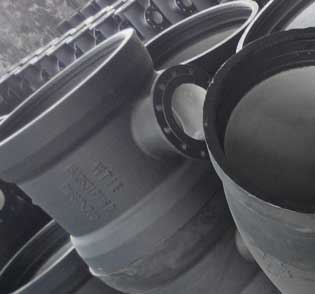

ASME B16.9 Cast Iron Fittings
ASME B16.9 Cast Iron Fittings

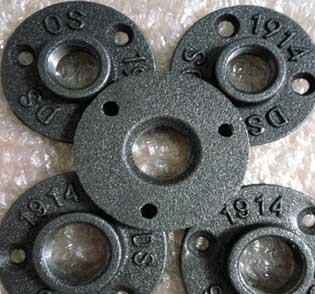

ANSI B16.5 Black Cast Iron Flanges
ANSI B16.5 Black Cast Iron Flanges

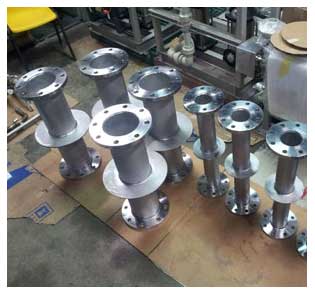

IS 1538 Threaded Cast Iron Fittings
IS 1538 Threaded Cast Iron Fittings


Black Cast Iron Flanges Specification


Specification : Cast Iron Fittings
Production Process: Heat Treated, Machined, Forged
Coating Flange Faces : Zinc Plated, Yellow Transparent, Anti-rust Paint, Cold and Hot Dip Galvanized, Oil Black Paint
Standards: GOST Flange, UNI Flange, AWWA Flange, MSS SP44 Flange, ASME B16.5 Flange, ASME B16.38 Flange, EN-1092 Flange, BS10 Flange, DIN Flange, PN Flange, JIS Flange, ISO Flange, ASME B16.47 (Series A, Series B)
Pressure Rating Table: Class 150 LBS Fittings, Class 300 LBS Fittings, Class 600 LBS Fittings, Class 900 LBS Fittings, Class 1500 LBS Fittings, Class 2500 LBS Fittings
Common Types of Flange : Flange 150 LB WNRF
Class 300 RTJ
600# BLRF
Class 900 SORF
Supporting Flange Material: Gasket, Flange Bolts, Ring Joint
Application: Water Pipeline Industry
Nuclear Power Plant
Natural Gas Industry
Oil And Gas Industry
Chemical Industry
Fabrication Industry
Design For Size: EN Fittings, ASA Fittings, ASME Fittings, BS Fittings, DIN Fittings, JIS Fittings, ANSI Fittings, PN Fittings
Flange Machining Equipment: Press machine, Bending machine, Sand-blasting machine, Pushing Machine, electric bevelling machine etc
Connect Type: LJF, RF, FF, LMF, SMF, RTJ
Size Chart : 1/2″ (15 NB) To 48″ (1200NB)

ASME B16.5 Cast Iron Blind Flanges - ASME / ANSI 125 Lb Dimensions


Cast Iron Flanges - ASME/ANSI 125 lb
PNS
(in.)		OD
(in.)		No. of Bolt HolesBolt Hole Dia.
(in.)		Bolt Circle
(in.)
1 4-1/4 4 5/8 3-1/8
1-1/4 4-5/8 4 5/8 3-1/2
1-1/2 5 4 5/8 3-7/8
2 6 4 3/4 4-3/4
2-1/2 7 4 3/4 5-1/2
3 7-1/2 4 3/4 6
3-1/2 8-1/2 8 3/4 7
4 9 8 3/4 7-1/2
5 10 8 7/8 8-1/2
6 11 8 7/8 9-1/2
8 13-1/2 8 7/8 11-3/4
10 16 12 1 14-1/4
12 19 12 1 17
14 21 12 1-1/8 18-3/4
16 23-1/2 16 1-1/8 21-1/4
18 25 16 1-1/4 22-3/4
20 27-1/2 20 1-1/4 25
24 32 20 1-3/8 29-1/2
30 38-3/4 28 1-3/8 36
36 46 32 1-5/8 42-3/4
42 53 36 1-5/8 49-1/2
48 59-1/2 44 1-5/8 56
54 66-1/4 44 2 62-3/4
60 73 52 2 69-1/4

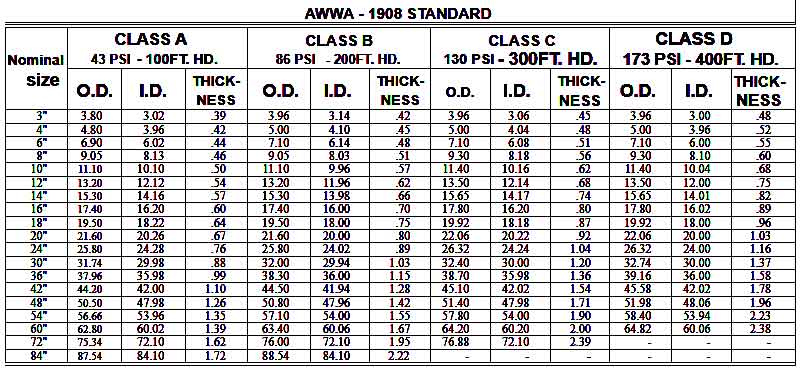

Cast Iron Pipe Fittings Weight Chart


Cast Iron Pipe Fittings Weight Chart


Cast Iron Pipe Flanges - ASME/ANSI Class 250 Dimensions


Cast Iron Flanges - ASME/ANSI 250 lb
NPS
(in.)		OD
(in.)		No. of Bolt HolesBolt Hole Dia.
(in.)		Bolt Circle
(in.)
1 4-7/8 4 3/4 3-1/2
1-1/4 5-1/4 4 3/4 3-7/8
1-1/2 6-1/8 4 7/8 4-1/2
2 6-1/2 8 3/4 5
2-1/2 7-1/2 8 7/8 5-7/8
3 8-1/4 8 7/8 6-5/8
3-1/2 9 8 7/8 7-1/4
4 10 8 7/8 7-7/8
5 11 8 7/8 9-1/4
6 12-1/2 12 7/8 10-5/8
8 15 12 1 13
10 17-1/2 16 1-1/8 15-1/4
12 20-1/2 16 1-1/4 17-3/4
14 23 20 1-1/4 20-1/4
16 25-1/2 20 1-3/8 22-1/2
18 28 24 1-3/8 24-3/4
20 30-1/2 24 1-3/8 27
24 36 24 1-5/8 32
30 43 28 2 39-1/4
36 50 32 2-1/4 46
42 57 36 2-1/4 52-3/4
48 65 40 2-1/4 60-3/4

Type Of Cast Iron Flanges And Fittings


Cast Iron Reducer

Cast Iron Reducer

Cast Iron Elbow

Cast Iron Elbow

Cast Iron Tee

Cast Iron Tee

Cast Iron End Cap

Cast Iron End Cap

Cast Iron U Bend

Cast Iron U Bend

Cast Iron Lateral Tee

Cast Iron Lateral Tee

Cast Iron Socket Weld Flange

Cast Iron Socket Weld Flanges

Cast Iron Threaded Flanges

Cast Iron Threaded Flanges

Cast Iron Floor Flanges

Cast Iron Floor Flanges

Cast Iron Puddle Flanges

Cast Iron Puddle Flanges

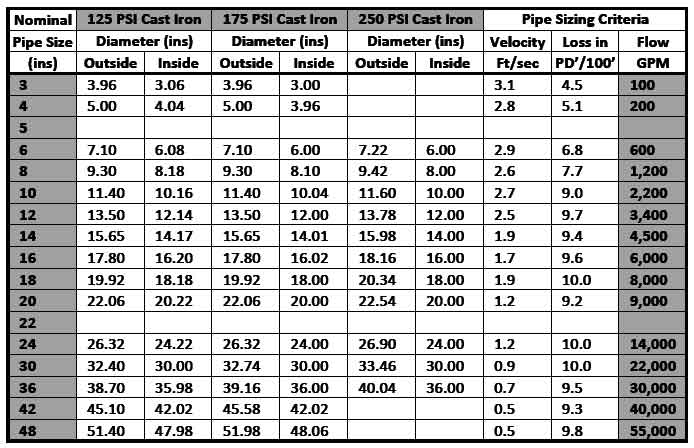

Cast Iron Elbow Fittings Dimension


Cast Iron Union Fittings Dimension

Pressure Rating Of ASME B16.9 Cast Iron Fittings


Cast Iron Fittings Pressure Rating
NPS
(inch)		 Pipe Sch. OD
(inch)
 Wall
Thick.
(in)
 Temperature (oF)
Cast Iron 100 Fittings Cast Iron 200 Fittings Cast Iron 300 Fittings Cast Iron 400 Fittings Cast Iron 500 Fittings Cast Iron 600 Fittings
(Pressure Rating)
16700 16700 16700 15500 14400 13500
1" 40 1.315 0.133 2205 2205 2205 2047 1902 1783
80 1.315 0.179 3061 3061 3061 2841 2640 2475
160 1.315 0.250 4493 4493 4493 4170 3874 3632
1 1/2" 40 1.900 0.145 1629 1629 1629 1512 1404 1317
80 1.900 0.200 2303 2303 2303 2138 1986 1862
160 1.900 0.281 3362 3362 3362 3120 2899 2717
2" 40 2.375 0.154 1371 1371 1371 1272 1182 1108
80 2.375 0.218 1985 1985 1985 1843 1712 1605
160 2.375 0.344 3283 3283 3283 3047 2831 2654
3" 40 3.500 0.216 1301 1301 1301 1208 1122 1052
80 3.500 0.300 1844 1844 1844 1712 1590 1491
160 3.500 0.438 2787 2787 2787 2587 2403 2253
4" 40 4.500 0.237 1102 1102 1102 1023 950 891
80 4.500 0.337 1596 1596 1596 1482 1377 1291
160 4.500 0.531 2611 2611 2611 2424 2552 2111
5" 40 5.563 0.258 965 965 965 896 832 780
80 5.563 0.375 1428 1428 1428 1325 1231 1154
160 5.563 0.625 2474 2474 2474 2296 2133 2000
6" 40 6.625 0.280 877 877 877 814 756 709
80 6.625 0.432 1379 1379 1379 1280 1189 1115
160 6.625 0.719 2382 2382 2382 2211 2054 1925
8" 40 8.625 0.322 771 771 771 716 665 623
80 8.625 0.500 1218 1218 1218 1131 1050 985
160 8.625 0.906 2298 2298 2298 2133 1982 1858
10" 40 10.750 0.365 699 699 699 649 603 565
80 10.750 0.594 1159 1159 1159 1075 999 937
160 10.750 1.125 2289 2289 2289 2124 1974 1850
