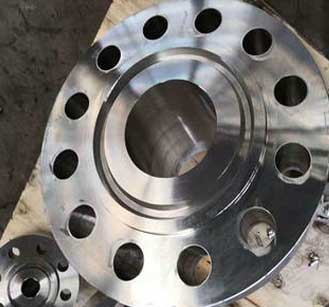

ASTM A694 F42 Flanges

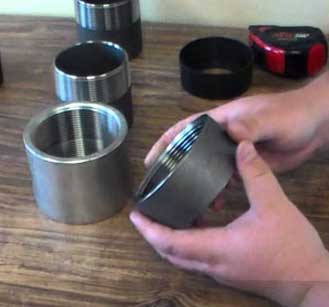

ASTM A694 Gr F42 Forged Fittings

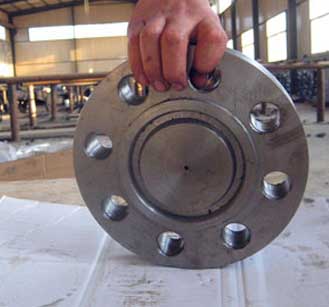

SA694 Gr F42 SORF Flange
| Specification : | ASTM A694 F42 Flanges |
| Production Process: | Machined, Forged, Heat Treated |
| Coating Flange Faces : | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Dimensions Class: | 2000#, 3000#, 6000#, 9000# |
| Forged Type : | NPT (Threaded), BSPT, BSPP. |
| Design For Size: | ASME, DIN, JIS, ANSI, BS, PN, EN, ASA |
| Flange Machining Equipment: | Sand-blasting machine, Press machine, Bending machine, Pushing Machine, electric bevelling machine etc |
| Pressure Rating Table: | Class 150 LBS, Class 300 LBS, Class 600 LBS, Class 900 LBS, Class 1500 LBS, Class 2500 LBS |
| Standards: | ASME B16.38 Flanges, EN-1092 Flanges, BS10 Flanges, DIN Flanges, PN Flanges, JIS Flanges, ISO Flanges, UNI Flanges, AWWA Flanges, MSS SP44 Flanges, ASME B16.5 Flanges, ASME B16.47 (Series A, Series B) GOST Flanges |
| Application: | Oil And Gas Industry Fabrication Industry Chemical Industry Natural Gas Industry Water Pipeline Industry Nuclear Power Plant |
| Size Chart : | 1/2″ (15 NB) To 48″ (1200NB) |
| Grade | Yield Strength (0.2 % Offset), min, ksi [MPa] | Tensile Strength, min, ksi [MPa] | Elongation in 2 in. or 50 mm, min % |
| F42 | 42 [290] | 60 [415] | 20 |
ASTM A694 Gr F42 Reducing Flange
A694 F42 Weld Neck Flange
SA 694 F42 Blind Flange
Carbon Steel A694 Grade F42 Flat Face Flange
High Yield Carbon Steel F42 RTJ Flange
Steel Grade F42 Raised Face Flange
A694 CS Gr F42 Socket Weld Flange
Grade F42 Carbon Steel Slip On Flange
Carbon Steel A694 F42 90 Deg Elbow
Carbon Steel ASME SA694 F42 Socket Weld Tee
ASME SA 694 F42 Threaded Union
ASTM A694 F42 Steel Threaded Hex Plug
| Coefficient of thermal expansion | 1.32E-5 - 1.38E-5 1/K at 20 °C | Typical for Low Carbon Steel |
| Max service temperature | 500 °C | Typical for Carbon Steel |
| Melting point | 1480 - 1526 °C | Typical for Low Carbon Steel |
| Curie temperature | 770 °C at 20 °C | Typical for Low Carbon Steel |
| Grade | Yield Strength (0.2 % Offset), min, ksi [MPa] | Tensile Strength, min, ksi [MPa] | Elongation in 2 in. or 50 mm, min % |
| F42 | 42 [290] | 60 [415] | 20 |
| Density P | 7.8 - 7.9 g/cm³ at 20 °C | Typical for Low Carbon Steel |
| Coefficient of thermal expansion | 1.32E-5 - 1.38E-5 1/K at 20 °C | Typical for Low Carbon Steel |
| Max service temperature | 500 °C | Typical for Carbon Steel |
| Melting point | 1480 - 1526 °C | Typical for Low Carbon Steel |
| Gr | C | Mn | P | S | Si |
| A694 F42 | 0.26-0.265 | 1.60-1.64 | 0.025-0.030 | 0.025-0.030 | 0.15-0.35 |
| Element | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| SA694 F42 | 415 | 290 | 20 % |
