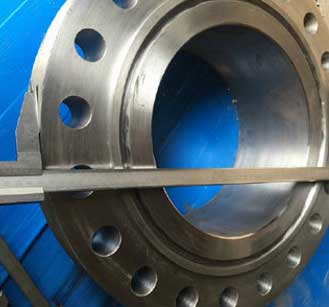

ASTM A694 F70 Flanges

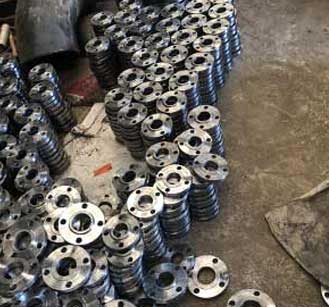

Carbon Steel A694 F70 Material

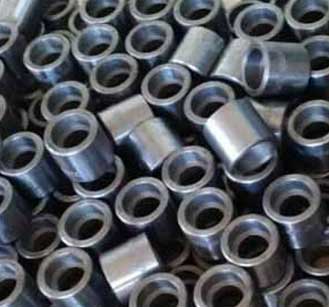

SA 694 F70 Forged Fittings
A694 CS Gr F70 Socket Weld Flanges
Grade F70 Carbon Steel Slip On Flanges
High Yield Carbon Steel F70 RTJ Flanges
Steel Grade F70 Raised Face Flanges
Carbon Steel A694 F70 90 Deg Elbow
Carbon Steel ASME SA694 F70 Socket Weld Tee
ASME SA 694 F70 Threaded Union
ASTM A694 F70 Steel Threaded Hex Plug
SA 694 F70 Blind Flanges
Carbon Steel A694 Grade F70 Flat Face Flanges
ASTM A694 Gr F70 Reducing Flanges
A694 F70 Weld Neck Flanges
| Specification : | ASTM A694 F70 Flanges |
| Size Chart : | 1/2″ (15 NB) To 48″ (1200NB) |
| Coating Flange Faces : | Cold and Hot Dip Galvanized, Oil Black Paint, Zinc Plated, Yellow Transparent, Anti-rust Paint |
| Forged Type : | NPT (Threaded), BSPT, BSPP. |
| Pressure Rating Table: | Class 150 LBS, Class 300 LBS, Class 600 LBS, Class 900 LBS, Class 1500 LBS, Class 2500 LBS |
| Standards: | EN-1092 Flanges, BS10 Flanges, MSS SP44 Flanges, ASME B16.5 Flanges, ASME B16.47 (Series A, Series B) GOST Flanges, DIN Flanges, PN Flanges, JIS Flanges, ISO Flanges, UNI Flanges, AWWA Flanges, ASME B16.38 Flanges |
| Dimensions Class: | 2000#, 3000#, 6000#, 9000# |
| Design For Size: | BS, PN, EN, ASA, ASME, DIN, JIS, ANSI |
| Production Process: | Forged, Heat Treated, Machined |
| Flange Machining Equipment: | electric bevelling machine, Bending machine, Pushing Machine, Press machine, Sand-blasting machine etc |
| Application: | Nuclear Power Plant Water Pipeline Industry Natural Gas Industry Oil And Gas Industry Fabrication Industry Chemical Industry |
NPS |
Flange (ID) (inch) |
Flange (OD) (inch) |
||||
| 150LB | 300LB | 400LB | 600LB | 900LB | ||
| 1/2 | 0.84 | 1.875 | 2.125 | 2.125 | 2.125 | 2.50 |
| 3/4 | 1.06 | 2.25 | 2.625 | 2.625 | 2.625 | 2.75 |
| 1 | 1.31 | 2.625 | 2.875 | 2.875 | 2.875 | 3.125 |
| 1 1/4 | 1.66 | 3 | 3.25 | 3.25 | 3.25 | 3.50 |
| 1 1/2 | 1.91 | 3.375 | 3.75 | 3.75 | 3.75 | 3.875 |
| 2 | 2.38 | 4.125 | 4.375 | 4.375 | 4.375 | 5.625 |
| 2 1/2 | 2.88 | 4.875 | 5.125 | 5.125 | 5.125 | 6.50 |
| 3 | 3.50 | 5.375 | 5.875 | 5.875 | 5.875 | 6.625 |
| 4 | 4.50 | 6.875 | 7.125 | 7.00 | 7.625 | 8.125 |
| 5 | 5.56 | 7.75 | 8.50 | 8.375 | 9.50 | 9.75 |
| 6 | 6.62 | 8.75 | 9.875 | 9.75 | 10.50 | 11.375 |
| 8 | 8.62 | 11 | 12.125 | 12.00 | 12.625 | 14.125 |
| 10 | 10.75 | 13.375 | 14.25 | 14.125 | 15.75 | 17.125 |
| 12 | 12.75 | 16.125 | 16.625 | 16.50 | 18.00 | 19.625 |
| Gr | C | Mn | P | S | Si |
| ASME SA 694 F70 | 0.26-0.265 | 1.60-1.64 | 0.025-0.030 | 0.025-0.030 | 0.15-0.35 |
| Element | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Carbon Steel A694 Grade F70 | 415 | 450 | 20 % |
| Standard | Class | Di. | Bolt Circle Dia. | No. of Bolts | Bolt Size | Dia. of Bolt Hole |
|---|---|---|---|---|---|---|
| AS4087 | PN14 | 95 | 67 | 4 | M12 | 14 |
| 2129 Flange | Table C | 95 | 67 | 4 | 13 | 14 |
| Table D | 95 | 67 | 4 | 13 | 14 | |
| Table E | 95 | 67 | 4 | 13 | 14 | |
| Table F | 95 | 67 | 4 | 13 | 14 | |
| Table H | 114 | 83 | 4 | 16 | 17 | |
| Table J | 114 | 83 | 4 | 16 | 17 | |
| ASI B16.5 Flanges | ANSI 150 | 89 | 60 | 4 | 13 | 16 |
| ANSI 300 | 95 | 67 | 4 | 13 | 16 | |
| ANSI 600 | 95 | 67 | 4 | 13 | 16 | |
| ANSI 900 | 121 | 83 | 4 | 19 | 22 | |
| ANSI 1500 | 121 | 83 | 4 | 19 | 22 | |
| ISO 7005 (DIN) Flange | PN6 | 80 | 55 | 4 | M10 | 11 |
| PN10 | 95 | 65 | 4 | M12 | 14 | |
| PN16 | 95 | 65 | 4 | M12 | 14 | |
| PN20 | 90 | 60.5 | 4 | M14 | 16 | |
| PN25 | 95 | 65 | 4 | M12 | 14 | |
| PN40 | 95 | 65 | 4 | M12 | 14 |
| Temp. °C | ASTM A694 F70 Flanges Working Pressure Range | ||||||
|---|---|---|---|---|---|---|---|
| Class 150 | Class 300 | Class 400 | Class 600 | Class 900 | Class 1500 | Class 2500 | |
| -29 ~ 38 | 19.6 | 51.1 | 68.1 | 102.1 | 153.2 | 255.3 | 425.5 |
| 50 | 19.2 | 50.1 | 66.8 | 100.2 | 150.4 | 250.6 | 417.7 |
| 100 | 17.7 | 46.6 | 62.1 | 93.2 | 139.8 | 233.0 | 388.3 |
| 150 | 15.8 | 45.1 | 60.1 | 90.2 | 135.2 | 225.4 | 375.6 |
| 200 | 13.8 | 43.8 | 58.4 | 87.6 | 131.4 | 219.0 | 365.0 |
| 250 | 12.1 | 41.9 | 55.9 | 83.9 | 125.8 | 209.7 | 349.5 |
| 300 | 10.2 | 39.8 | 53.1 | 79.6 | 119.5 | 199.1 | 331.8 |
| 325 | 9.3 | 38.7 | 51.6 | 77.4 | 116.1 | 193.6 | 322.6 |
| 350 | 8.4 | 37.6 | 50.1 | 75.1 | 112.7 | 187.8 | 313.0 |
| 375 | 7.4 | 36.4 | 48.5 | 72.7 | 109.1 | 181.8 | 303.1 |
| 400 | 6.5 | 34.7 | 46.3 | 69.4 | 104.2 | 173.6 | 289.3 |
| 425 | 5.5 | 28.8 | 38.4 | 57.5 | 86.3 | 143.8 | 239.7 |
| 450 | 4.6 | 23.0 | 30.7 | 46.0 | 69.0 | 115.0 | 191.7 |
| 475 | 3.7 | 17.4 | 23.2 | 34.9 | 52.3 | 87.2 | 145.3 |
| 500 | 2.8 | 11.8 | 15.7 | 23.5 | 35.3 | 58.8 | 97.9 |
| 538 | 1.4 | 5.9 | 7.9 | 11.8 | 17.7 | 29.5 | 49.2 |
