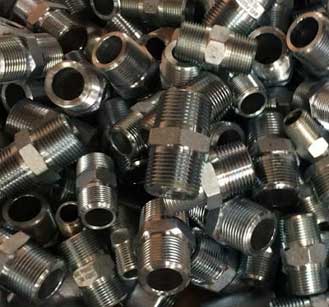

ASTM A105N Fittings

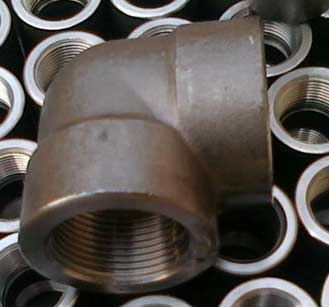

Carbon Steel A105N Pipe Fittings

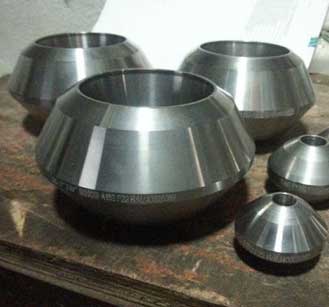

SA-105 Normalized Fittings
| Specification : | ASTM A105N Fittings |
| Pressure: | Check Pressure Rating Of Socket, Threaded: 3000 LBS, 6000 LBS, 9000 LBS |
| Size Chart Of: | 1/8” NB to 4” NB (NPT-SW Fitting) |
| Dimensions Class: | 2000# Fittings, 3000# Fittings, 6000# Fittings, 9000# Fittings |
| Forged Type : | NPT (Threaded), BSPT, BSPP. |
| Standard Of: | DIN2605 Fittings, JISB2312, PN, AWWA C207, BS4504, BS1560 Fittings, BS, GB, ISO, ASME B16.47, ASME B16.38, MSS-SP-43 Fittings, JISB2313, ASME B16.25, MSS SP-75, JISB2311, IS 2062 Fittings, DIN, ANSI B16.28, ASME B16.9 Fittings, BS10 |
| Connection Type : | Welding |
| Fittings Class | Fittings Connection | Pipe Equivalent | |
|---|---|---|---|
| Schedule No. | Wall Designation | ||
|
2000
|
NPT
|
Sch. 80
|
XS
|
|
3000
|
NPT
|
Sch. 160
|
–
|
|
6000
|
NPT
|
–
|
XXS
|
|
3000
|
SW
|
Sch. 80
|
XS
|
|
6000
|
SW
|
Sch. 160
|
–
|
|
9000
|
SW
|
–
|
XXS
|
| Grade | C | Si | Mn | -P | S | Mo | Ni | Cr | Cu | V |
| ASTM A105 Forged Fitting | 0.35 | 0.10–0.35 | 0.60–1.05 | 0.035 | 0.040 | 0.12 | 0.40 | 0.30 | 0.40 | 0.08 |
ASTM A105N Galvanized Full Coupling
ASTM A105N Socket Weld Cross
ASTM A105N Threaded Pipe Nipple
ASTM A105N Weld Street Elbow
Carbon Steel ASTM A105N 45 Deg Elbows
Forged Carbon Steel A105N 90 Deg Elbows
Forged Carbon Steel ASTM A105N Cap
ASTM A105N SW Tee
SA 105N Half Coupling
Sa-105N Normalized Threaded Union
ASTM A105 Forged Hex Plug
| Grade | Yield Strength, Min (MPa) | Tensile Strength, Min (MPa) | Elongation, min, % |
| Carbon A105 Pipe Fitting | 250 | 485 | 30 |
| Fitting | Size | |
|---|---|---|
| ASTM 105N 90° Elbows | Sa-105N Normalized Couplings | Sizes 1/8″ – 4″ Fitting Pressure Ratings – 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| ASTM A105N SW Tees | Fittings A105N Galvanized Caps | |
| ASTM A105N Crosses | ASTM A105N Threaded Unions | |
| ASTM A105N 45° Elbows | Fittings A105N Weld Reducers | |
| Carbon Steel ASTM A105N Street Elbows | Forged Carbon Steel Fittings A105N Inserts | |
