Stainless Steel F316L Flanges And ASTM A182 Grade F316L Blind Flange

  • Home
  • Stainless Steel 316L Flanges

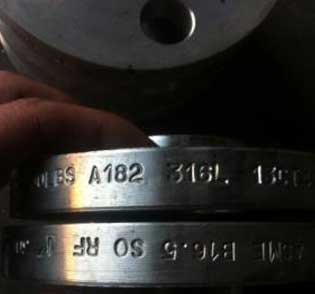

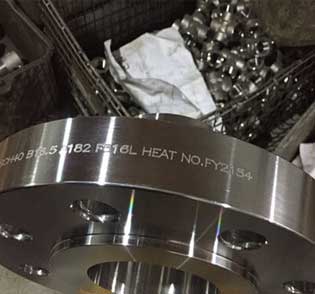

Stainless Steel 316L Flanges
ASME B16.5 Stainless Steel 316L Flanges

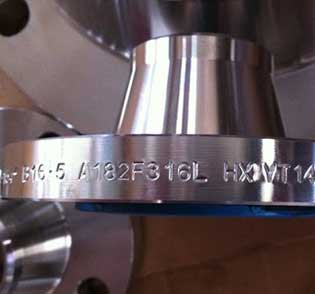

ASTM A182 F316L Flange
UNS S31603 ASTM A182 F316L Flange
DIN 1.4401 316L Stainless Steel Flanges
DIN 1.4401 316L Stainless Steel Flanges

ASTM A182 Grade F316L Blind Flange Chemical Composition


Stainless Steel Stainless Steel 316L Flanges
Ni 10 – 14
Fe Balance
Cr 16 – 18
Mo 2 – 3
C 0.10 max
Si 0.75 max
Mn 2 max
P 0.045 max
S 0.030 max
N
Ti

ASTM A182 F316L Flange Mechanical Properties


Gr. Tensile Strength Melting Point Yield Strength (0.2%Offset) Density Elongation
SS 316L Psi – 75000 , MPa – 515 1399 °C (2550 °F) Psi – 30000 , MPa – 205 8.0 g/cm3 35 %

DIN 1.4401 316L Stainless Steel Flanges Specification


Specification : Stainless Steel 316L Flanges
Standards: ASME B16.38 Flanges, EN-1092 Flanges, BS10 Flanges, DIN Flanges, PN Flanges, ASME B16.47 (Series A, Series B) Flanges, JIS Flanges, ISO Flanges, GOST Flanges, UNI Flanges, AWWA Flanges, MSS SP44 Flanges, ASME B16.5 Flanges
Coating Flange Faces : Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized
Connect Type Type: SMF, LJF, RF, FF, RTJ, LMF
Stainless Steel 316L Flanges Pressure Rating Table: Class 150 LBS, Class 300 LBS, Class 600 LBS, Class 900 LBS, Class 1500 LBS, Class 2500 LBS
Supporting Flange Material: Flange Bolts, Ring Joint, Gasket
Design For Size: PN, JIS, ANSI, BS, EN,ASA, ASME, DIN
Common Types of SS Flange : Flanges 150 LB WNRF
600# BLRF
Class 300 RTJ
Class 900 SORF
Production Process: Forged, Heat Treated and Machined
Application: Chemical Industry
Oil And Gas Industry
Nuclear Power Plant
Natural Gas Industry
Fabrication Industry
Water Pipeline Industry
Flange Machining Equipment: Pushing Machine, electric bevelling machine, Sand-blasting machine, Press machine, Bending machine etc
Size Chart : 1/2″ (15 NB) To 48″ (1200NB)

UNS S31600 SS 316L Flange Equivalent


STANDARD Stainless Steel 316L Flanges
WERKSTOFF NR. 1.4404 / 1.4435
UNS S31603
JIS SUS 316L
BS 316S11 / 316S13
GOST 03Ch17N14M3 / 03Ch17N14M2
AFNOR Z3CND17‐11‐02 / Z3CND18‐14‐03
EN X2CrNiMo17-12-2 / X2CrNiMo18-14-3

Pressure Ratings Of Werkstoff No. 1.4401 Stainless Steel 316L Forged Flanges


ASME Stainless Steel 3016L Flanges Pressure Ratings
Temperature °F 150 LB 300 LB 400 LB 600 LB 900 LB 1500 LB 2500 LB
-20 to 100 275 720 960 1440 2160 3600 6000
200 230 600 800 1200 1800 3000 5000
300 205 540 720 1080 1620 2700 4500
400 190 495 660 995 1490 2485 4140
500 170 465 620 930 1395 2330 3880
600 140 435 580 875 1310 2185 3640
650 125 430 575 860 1290 2150 3580
700 110 425 565 850 1275 2125 3540
750 95 415 555 830 1245 2075 3460
800 80 405 540 805 1210 2015 3360
850 65 395 530 790 1190 1980 3300
900 50 390 520 780 1165 1945 3240
950 35 380 510 765 1145 1910 3180
1000 20 320 430 640 965 1605 2675
1050 20 310 410 615 925 1545 2570
1100 20 255 345 515 770 1285 2145
1150 20 200 265 400 595 995 1655
1200 20 155 205 310 465 770 1285
1250 20 115 150 225 340 565 945
1300 20 85 115 170 255 430 715
1350 20 60 80 125 185 310 515
1400 20 50 65 95 145 240 400
1450 15 35 45 70 105 170 285
1500 10 25 35 55 80 135 230

Types Of ASTM A182 F316L Flange


ASTM A182 gr F316L Reducing Flange

ASTM A182 gr F316L Reducing Flanges

Stainless Steel 316L Weld Neck Flange

Stainless Steel 316L Weld Neck Flanges

A182 Gr F316L Blind Flange

A182 Gr F316L Blind Flanges

SS 316L Forged Flat Face Flange

SS 316L Forged Flat Face Flanges

ASME SA182 F316L RTJ Flange

ASME SA182 F316L RTJ Flanges

SA 182 Gr F316L Raised Face Flange

SA 182 Gr F316L Raised Face Flanges

ASTM A182 Grade F316L Socket Weld Flange

ASTM A182 Grade F316L Socket Weld Flanges

Stainless Steel 316L Slip On Flange

Stainless Steel 316L Slip On Flanges

Stainless Steel 316L Orifice Flange

Stainless Steel 316L Orifice Flanges

316L SS Spectacle Flange

316L SS Spectacle Flanges

ASTM A182 F316L Long Weld Neck Flanges

ASTM A182 F316L Long Weld Neck Flanges

Stainless Steel 316L Forged Flanges

Stainless Steel 316L Forged Flanges


ASTM A182 F316L Stainless Steel Pipe Flanges Physical Properties


Density 8.0 g/cm3
Melting Point 1400 °C (2550 °F)
Tensile Strength Psi – 75000 , MPa – 515
Yield Strength (0.2%Offset) Psi – 30000 , MPa – 205
Elongation 35 %

Weight Of ASME B16.5 Sa 182 F316L Slip On Flanges


Standard Class Dia. Bolt Circle Dia. Number of Bolts Bolt Size Dia. of Bolt Hole
AS4087 Flanges PN14 Flanges 95 67 4 M12 14
AS 2129 Flanges Table C Flanges 95 67 4 13 14
Table D Flanges 95 67 4 13 14
Table E Flanges 95 67 4 13 14
Table F Flanges 95 67 4 13 14
Table H Flanges 114 83 4 16 17
Table J Flanges 114 83 4 16 17
ANSI B16.5 Flanges ANSI 150 Flanges 89 60 4 13 16
ANSI 300 Flanges 95 67 4 13 16
ANSI 600 Flanges 95 67 4 13 16
ANSI 900 Flanges 121 83 4 19 22
ANSI 1500 Flanges 121 83 4 19 22
ISO 7005 (DIN) Flange PN6 Flanges 80 55 4 M10 11
PN10 Flanges 95 65 4 M12 14
PN16 Flanges 95 65 4 M12 14
PN20 Flanges 90 60.5 4 M14 16
PN25 Flanges 95 65 4 M12 14
PN40 Flanges 95 65 4 M12 14

Dimensions Of ASTM A182 Grade F316L SWRF Flanges


NPS
(in.)		 Stainless Steel 3016L Flanges Dimensions
Dia. of
Flange
(in.)		 No.
of
Bolts		 Dia. of
Bolts
(in.)		 Dia. of
Bolt Holes
(in.)		 Bolt
Circle
(in.)
1/4 3-3/8 4 1/2 0.62 2-1/4
1/2 3-1/2 4 1/2 0.62 2-3/8
3/4 3-7/8 4 1/2 0.62 2-3/4
1 4-1/4 4 1/2 0.62 3-1/8
1-1/4 4-5/8 4 1/2 0.62 3-1/2
1-1/2 5 4 1/2 0.62 3-7/8
2 6 4 5/8 0.75 4-3/4
2-1/2 7 4 5/8 0.75 5-1/2
3 7-1/2 4 5/8 0.75 6
3-1/2 8-1/2 8 5/8 0.75 7
4 9 8 5/8 0.75 7-1/2
5 10 8 3/4 0.88 8-1/2
6 11 8 3/4 0.88 9-1/2
8 13-1/2 8 3/4 0.88 11-3/4
10 16 12 7/8 1 14-1/4
12 19 12 7/8 1 17
14 21 12 1 1.12 18-3/4
16 23-1/2 16 1 1.12 21-1/4
18 25 16 1-1/8 1.25 22-3/4
20 27-1/2 20 1-1/8 1.25 25
24 32 20 1-1/4 1.38 29-1/2
