| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| Stainless Steel 304 Pipe Fittings | min. max. | - 0.08 | - 2.0 | - 0.75 | - 0.045 | - 0.030 | 18.0 20.0 | - | 8.0 10.5 | - 0.10 |
| Standard Specification : | Stainless Steel 304 Pipe Fittings |
| Check Sizes: | (SMLS UPTO 24”) 1/2” TO 36” (Buttweld 8” TO 36” ) |
| Rating Pressure: | Check Pressure Rating Of: 3000 LBS, 6000 LBS, 9000 LBS |
| Thickness: | View Our Thickness: Schedule 5S, SCH10, SCH20, SCH10, SCH20, SCH30, SCHTD, SCH40, SCH60, XS, SCH80, SCH100, SCH120, SCH140, SCH160. |
| Standard: | MSS-SP-43 Type B Fittings, ANSI B16.28 Fittings, JIS B2312 Fittings, ANSI B16.9 Fittings, MSS-SP-43 Type A Fittings, MSS-SP-43 Type b Fittings, JIS B2313 Fittings |
| Coating Flange Faces : | Anti-rust Paint, Cold and Hot Dip Galvanized, Yellow Transparent, Oil Black Paint, Zinc Plated |
| Stainless Steel 304 Pipe Fittings Machining Equipment: | Sand-blasting machine, Press machine, Bending machine, Pushing Machine, electric bevelling machine etc |
| Dimensions Class: | 2000#, 3000#, 6000#, 9000# |
| Application: | Oil And Gas Industry Nuclear Power Plant Natural Gas Industry Chemical Industry Fabrication Industry Water Pipeline Industry |
| Stainless Steel | Tradename | UNS no. | Werkstoff No. | Density (g/cm3) |
| A403 WP304 Fitting | 304 | S30400 | 1.4301 | 8.0 |
ASTM A403 WP304 BW 45 Deg Elbow

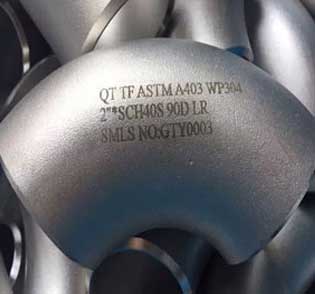

ASTM A403 Gr WP304 90 Degree Elbow
ASTM A403 Gr WP304 180 Degree Elbow
Buttweld 304 Pipe Long Radius Elbow

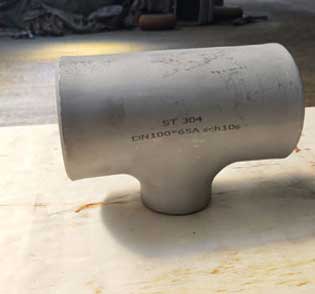

Stainless Steel 304 BW Tee Fittings
Stainless Steel ASTM A403 WP304 Buttweld Unequal Tee
Stainless Steel 304 Forged Concentric Reducers
Stainless Steel 304 Buttweld Eccentric Reducers

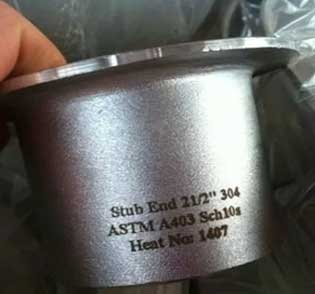

304 Stainless Steel Stub End
Stainless Steel 304 Short Radius Elbow
Stainless Steel 304 Pipe Fittings
Stainless Steel 304 End Cap
| Gr. | Tensile Strength (MPa) minimum | Yield Strength 0.2% Proof (MPa) minimum | Elongation (% in 50 millimeter) minimum | Hardness | |
| Rockwell B (HR B) Maximum | Brinell (HB) Maximum | ||||
| Stainless Steel 304 Pipe Fittings | 515 | 205 | 40 | 92 | 201 |
| Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (m/m/0C) | Thermal Conductivity(W/m.K) | Specific Heat 0-1000C(J/kg.K) | Electrical Resistivity (n.m) | |||
|---|---|---|---|---|---|---|---|---|---|
| 0-1000C | 0-3150C | 0-5380C | at 1000C | at 5000C | |||||
| Sa WP304 | 8000 | 193 | 17.2 | 17.8 | 18.4 | 16.2 | 21.5 | 500 | 720 |
| NPS | 90 Degree Elbows | 45 Degree Elbows | 180 Degree Return Bends | Tees | Lap Joint Stub Ends | Caps | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LR | SR | 3R | LR | 3R | LR | LR | C | M | F | G | R | E | |||
| A | A | A | B | B | O | K | O | K | |||||||
| ½ | 1.50 | - | - | 0.62 | - | 3.00 | 1.88 | - | - | 1.00 | 1.00 | 3.00 | 1.38 | 0.12 | 1.00 |
| ¾ | 1.50 | - | - | 0.75 | - | 3.00 | 2.00 | - | - | 1.12 | 1.12 | 3.00 | 1.69 | 0.12 | 1.00 |
| 1 | 1.50 | 1.00 | - | 0.88 | - | 3.00 | 2.19 | 2.00 | 1.62 | 1.50 | 1.50 | 4.00 | 2.00 | 0.12 | 1.50 |
| 1¼ | 1.88 | 1.25 | - | 1.00 | - | 3.75 | 2.75 | 2.50 | 2.06 | 1.88 | 1.88 | 4.00 | 2.50 | 0.19 | 1.50 |
| 1½ | 2.25 | 1.50 | - | 1.12 | - | 4.50 | 3.25 | 3.00 | 2.44 | 2.25 | 2.25 | 4.00 | 2.88 | 0.25 | 1.50 |
| 2 | 3.00 | 2.00 | 6.00 | 1.38 | 2.50 | 6.00 | 4.19 | 4.00 | 3.19 | 2.50 | 2.50 | 6.00 | 3.62 | 0.31 | 1.50 |
| 2½ | 3.75 | 2.50 | 7.50 | 1.75 | 3.12 | 7.50 | 5.19 | 5.00 | 3.94 | 3.00 | 3.00 | 6.00 | 4.12 | 0.31 | 1.50 |
| 3 | 4.50 | 3.00 | 9.00 | 2.00 | 3.75 | 9.00 | 6.25 | 6.00 | 4.75 | 3.38 | 3.38 | 6.00 | 5.00 | 0.38 | 2.00 |
| 3½ | 5.25 | 3.50 | 10.50 | 2.25 | - | 10.50 | 7.25 | 7.00 | 5.50 | 3.75 | 3.75 | 6.00 | 5.50 | 0.38 | 2.50 |
| 4 | 6.00 | 4.00 | 12.00 | 2.50 | 5.00 | 12.00 | 8.25 | 8.00 | 6.25 | 4.12 | 4.12 | 6.00 | 6.19 | 0.44 | 2.50 |
| 5 | 7.50 | 5.00 | 15.00 | 3.12 | - | 15.00 | 10.31 | 10.00 | 7.75 | 4.88 | 4.88 | 8.00 | 7.31 | 0.44 | 3.00 |
| 6 | 9.00 | 6.00 | 18.00 | 3.75 | 7.44 | 18.00 | 12.31 | 12.00 | 9.31 | 5.62 | 5.62 | 8.00 | 8.50 | 0.50 | 3.50 |
| 8 | 12.00 | 8.00 | 24.00 | 5.00 | 9.94 | 24.00 | 16.31 | 16.00 | 12.31 | 7.00 | 7.00 | 8.00 | 10.62 | 0.50 | 4.00 |
| 10 | 15.00 | 10.00 | 30.00 | 6.25 | 12.44 | 30.00 | 20.38 | 20.00 | 15.38 | 8.50 | 8.50 | 10.00 | 12.75 | 0.50 | 5.00 |
| 12 | 18.00 | 12.00 | 36.00 | 7.50 | 14.88 | 36.00 | 24.38 | 24.00 | 18.38 | 10.00 | 10.00 | 10.00 | 15.00 | 0.50 | 6.00 |
| 14 | 21.00 | 14.00 | 42.00 | 8.75 | 17.38 | 42.00 | 28.00 | 28.00 | 21.00 | 11.00 | 11.00 | 12.00 | 16.25 | 0.50 | 6.50 |
| 16 | 24.00 | 16.00 | 48.00 | 10.00 | 19.88 | 48.00 | 32.00 | 32.00 | 24.00 | 12.00 | 12.00 | 12.00 | 18.50 | 0.50 | 7.00 |
| 18 | 27.00 | 18.00 | 54.00 | 11.25 | 22.38 | 54.00 | 36.00 | 36.00 | 27.00 | 13.50 | 13.50 | 12.00 | 21.00 | 0.5 | 8.00 |
| 20 | 30.00 | 20.00 | 60.00 | 12.50 | 24.88 | 60.00 | 40.00 | 40.00 | 30.00 | 15.00 | 15.00 | 12.00 | 23.00 | 0.50 | 9.00 |
| 22 | 33.00 | 22.00 | 66.00 | 13.50 | 27.31 | 66.00 | 44.00 | 44.00 | 33.00 | 16.50 | 16.50 | 12.00 | 25.25 | 0.50 | 10.00 |
| 24 | 36.00 | 24.00 | 72.00 | 15.00 | 29.81 | 72.00 | 48.00 | 48.00 | 36.00 | 17.00 | 17.00 | 12.00 | 27.25 | 0.50 | 10.50 |
| 26 | 39.00 | - | 78.00 | 16.00 | 32.31 | - | - | - | - | 19.50 | 19.50 | - | - | - | 10.50 |
| 28 | 42.00 | - | 84.00 | 17.25 | 34.75 | - | - | - | - | 20.50 | 20.50 | - | - | - | 10.50 |
| 30 | 45.00 | - | 90.00 | 18.50 | 37.25 | - | - | - | - | 22.00 | 22.00 | - | - | - | 10.50 |
| 32 | 48.00 | - | - | 19.75 | - | - | - | - | - | 23.50 | 23.50 | - | - | - | 10.50 |
| 34 | 51.00 | - | 102.00 | 21.00 | 42.25 | - | - | - | - | 25.00 | 25.00 | - | - | - | 10.50 |
| 36 | 54.00 | - | 108.00 | 22.25 | 44.69 | - | - | - | - | 26.50 | 26.50 | - | - | - | 10.50 |
| 38 | 57.00 | - | 114.00 | 23.62 | 47.25 | - | - | - | - | 28.00 | 28.00 | - | - | - | 12.00 |
| 40 | 60.00 | - | 120.00 | 24.88 | 49.75 | - | - | - | - | 29.50 | 29.50 | - | - | - | 12.00 |
| 42 | 63.00 | - | 126.00 | 26.00 | 52.19 | - | - | - | - | 30.00 | 28.00 | - | - | - | 12.00 |
| 44 | 66.00 | - | 132.00 | 27.38 | 54.69 | - | - | - | - | 32.00 | 30.00 | - | - | - | 13.50 |
| 46 | 69.00 | - | 138.00 | 28.62 | 57.19 | - | - | - | - | 33.50 | 31.50 | - | - | - | 13.50 |
| 48 | 72.00 | - | 144.00 | 29.88 | 59.69 | - | - | - | - | 35.00 | 33.00 | - | - | - | 13.50 |
