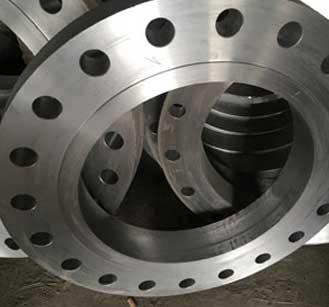

ASTM A694 F65 Flanges

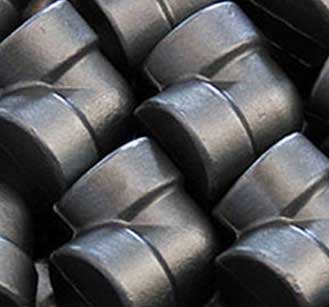

A694 Gr F60 Forged Fittings

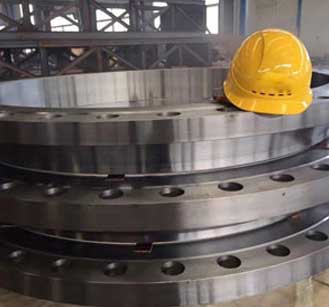

SAA694 F65 Material
| Specification : | ASTM A694 F65 Flanges |
| Design For Size: | DIN, JIS, ANSI, BS, PN, EN, ASA, ASME |
| Forged Type : | NPT (Threaded), BSPT, BSPP. |
| Pressure Rating Table: | Class 150 LBS, Class 300 LBS, Class 600 LBS, Class 900 LBS, Class 1500 LBS, Class 2500 LBS |
| Standards: | DIN Flanges, PN Flanges, JIS Flanges, ISO Flanges, UNI Flanges, AWWA Flanges, ASME B16.38 Flanges, EN-1092 Flanges, BS10 Flanges, MSS SP44 Flanges, ASME B16.5 Flanges, ASME B16.47 (Series A, Series B) Flanges, GOST Flanges |
| Production Process: | Machined, Forged, Heat Treated |
| Flange Machining Equipment: | Pushing Machine, Press machine, Sand-blasting machine, electric bevelling machine, Bending machine etc |
| Size Chart : | 1/2″ (15 NB) To 48″ (1200NB) |
| Coating Flange Faces : | Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized, Oil Black Paint, Anti-rust Paint |
| Dimensions Class: | 2000#, 3000#, 6000#, 9000# |
| Application: | Oil And Gas Industry Water Pipeline Industry Chemical Industry Nuclear Power Plant Fabrication Industry Natural Gas Industry |
Carbon Steel A694 F65 90 Deg Elbow
Carbon Steel ASME SA694 F65 Socket Weld Tee
ASME SA 694 F65 Threaded Union
ASTM A694 F65 Steel Threaded Hex Plug
A694 CS Gr F65 Socket Weld Flanges
Grade F65 Carbon Steel Slip On Flanges
High Yield Carbon Steel F65 RTJ Flanges
Steel Grade F65 Raised Face Flanges
SA 694 F65 Blind Flanges
Carbon Steel A694 Grade F65 Flat Face Flanges
ASTM A694 Gr F65 Reducing Flanges
A694 F65 Weld Neck Flanges
NPS |
Flange (ID) (inch) |
Flange (OD) (inch) |
||||
| 150# | 300# | 400# | 600# | 900# | ||
| 1/2 | 0.84 | 1.875 | 2.125 | 2.125 | 2.125 | 2.50 |
| 3/4 | 1.06 | 2.25 | 2.625 | 2.625 | 2.625 | 2.75 |
| 1 | 1.31 | 2.625 | 2.875 | 2.875 | 2.875 | 3.125 |
| 1 1/4 | 1.66 | 3 | 3.25 | 3.25 | 3.25 | 3.50 |
| 1 1/2 | 1.91 | 3.375 | 3.75 | 3.75 | 3.75 | 3.875 |
| 2 | 2.38 | 4.125 | 4.375 | 4.375 | 4.375 | 5.625 |
| 2 1/2 | 2.88 | 4.875 | 5.125 | 5.125 | 5.125 | 6.50 |
| 3 | 3.50 | 5.375 | 5.875 | 5.875 | 5.875 | 6.625 |
| 4 | 4.50 | 6.875 | 7.125 | 7.00 | 7.625 | 8.125 |
| 5 | 5.56 | 7.75 | 8.50 | 8.375 | 9.50 | 9.75 |
| 6 | 6.62 | 8.75 | 9.875 | 9.75 | 10.50 | 11.375 |
| 8 | 8.62 | 11 | 12.125 | 12.00 | 12.625 | 14.125 |
| 10 | 10.75 | 13.375 | 14.25 | 14.125 | 15.75 | 17.125 |
| 12 | 12.75 | 16.125 | 16.625 | 16.50 | 18.00 | 19.625 |
| Standard | Class | Di. | Bolt Circle Dia. | No. of Bolts | Bolt Size | Dia. of Bolt Hole |
|---|---|---|---|---|---|---|
| AS4087 | PN14 | 95 | 67 | 4 | M12 | 14 |
| 2129 Flange | Table C | 95 | 67 | 4 | 13 | 14 |
| Table D | 95 | 67 | 4 | 13 | 14 | |
| Table E | 95 | 67 | 4 | 13 | 14 | |
| Table F | 95 | 67 | 4 | 13 | 14 | |
| Table H | 114 | 83 | 4 | 16 | 17 | |
| Table J | 114 | 83 | 4 | 16 | 17 | |
| ASME B16.5 Flanges | ANSI 150 | 89 | 60 | 4 | 13 | 16 |
| ANSI 300 | 95 | 67 | 4 | 13 | 16 | |
| ANSI 600 | 95 | 67 | 4 | 13 | 16 | |
| ANSI 900 | 121 | 83 | 4 | 19 | 22 | |
| ANSI 1500 | 121 | 83 | 4 | 19 | 22 | |
| ISO 7005 (DIN) Flange | PN6 | 80 | 55 | 4 | M10 | 11 |
| PN10 | 95 | 65 | 4 | M12 | 14 | |
| PN16 | 95 | 65 | 4 | M12 | 14 | |
| PN20 | 90 | 60.5 | 4 | M14 | 16 | |
| PN25 | 95 | 65 | 4 | M12 | 14 | |
| PN40 | 95 | 65 | 4 | M12 | 14 |
| Temp. °C | ASTM A694 F65 Flanges Working Pressure Range | ||||||
|---|---|---|---|---|---|---|---|
| 150# | 300# | 400# | 600# | 900# | 1500# | 2500# | |
| -29 ~ 38 | 19.6 | 51.1 | 68.1 | 102.1 | 153.2 | 255.3 | 425.5 |
| 50 | 19.2 | 50.1 | 66.8 | 100.2 | 150.4 | 250.6 | 417.7 |
| 100 | 17.7 | 46.6 | 62.1 | 93.2 | 139.8 | 233.0 | 388.3 |
| 150 | 15.8 | 45.1 | 60.1 | 90.2 | 135.2 | 225.4 | 375.6 |
| 200 | 13.8 | 43.8 | 58.4 | 87.6 | 131.4 | 219.0 | 365.0 |
| 250 | 12.1 | 41.9 | 55.9 | 83.9 | 125.8 | 209.7 | 349.5 |
| 300 | 10.2 | 39.8 | 53.1 | 79.6 | 119.5 | 199.1 | 331.8 |
| 325 | 9.3 | 38.7 | 51.6 | 77.4 | 116.1 | 193.6 | 322.6 |
| 350 | 8.4 | 37.6 | 50.1 | 75.1 | 112.7 | 187.8 | 313.0 |
| 375 | 7.4 | 36.4 | 48.5 | 72.7 | 109.1 | 181.8 | 303.1 |
| 400 | 6.5 | 34.7 | 46.3 | 69.4 | 104.2 | 173.6 | 289.3 |
| 425 | 5.5 | 28.8 | 38.4 | 57.5 | 86.3 | 143.8 | 239.7 |
| 450 | 4.6 | 23.0 | 30.7 | 46.0 | 69.0 | 115.0 | 191.7 |
| 475 | 3.7 | 17.4 | 23.2 | 34.9 | 52.3 | 87.2 | 145.3 |
| 500 | 2.8 | 11.8 | 15.7 | 23.5 | 35.3 | 58.8 | 97.9 |
| 538 | 1.4 | 5.9 | 7.9 | 11.8 | 17.7 | 29.5 | 49.2 |
| Grade | C | Mn | P | S | Si |
| A694 Carbon Steel Gr F65 | 0.26-0.265 | 1.60-1.64 | 0.025-0.030 | 0.025-0.030 | 0.15-0.35 |
| Element | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| ASTM A694 Gr F65 | 415 | 450 | 20 % |
| Grade | Yield Strength (0.2 % Offset), minimum, ksi [MPa] | Tensile Strength, min, ksi [MPa] | Elongation in 2 in. or 50 millimeter, minimum % | - | - |
| Carbon Steel A694 Grade F65 | 450 | 65 | 530 | 77 | 20 |
