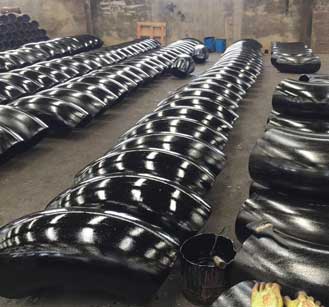

ASTM A234 WPB Fittings

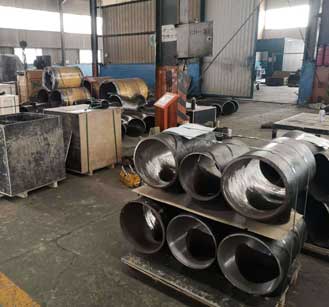

A234 WPB SMLS Pipe Fittings

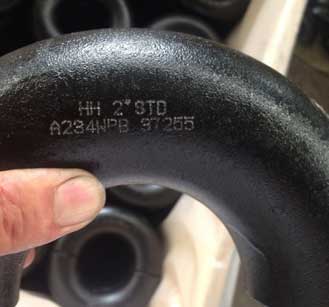

SA 234 Grade WPB Buttweld Pipe Fitting
| Gr. | C | Mn | P | S | Si | Cr | Mo | Ni | Cu | V | Nb |
| WPB | 0.3 | 0.29-1.06 | 0.05 | 0.058 | 0.1min | 0.4 | 0.15 | 0.4 | 0.4 | 0.08 | 0.02 |
| WPC | 0.35 | 0.29-1.06 | 0.05 | 0.058 | 0.1min | 0.4 | 0.15 | 0.4 | 0.4 | 0.08 | 0.02 |
| WP11 CL1 | 0.05-0.15 | 0.30-0.60 | 0.03 | 0.03 | 0.50-1.00 | 1.00-1.50 | 0.44-0.65 | - | - | - | - |
| WP11 CL2/3 | 0.05-0.20 | 0.30-0.80 | 0.04 | 0.04 | 0.50-1.00 | 1.00-1.50 | 0.44-0.65 | - | - | - | - |
| Standard Specification : | ASTM A234 WPB Fittings |
| Fitting Machining Equipment: | Bending machine, Pushing Machine, Sand-blasting machine, Electric bevelling machine, Press machine etc |
| Thickness: | View Our Thickness: SCH 5S, SCH10, SCH20, SCH10, SCH20, SCH30, SCHTD, SCH40, SCH60, XS, SCH80, SCH100, SCH120, SCH140, SCH160. |
| Rating Pressure: | Pressure Rating Of: 3000 LBS, 6000 LBS, 9000 LBS |
| Dimensions Class: | 2000#, 3000#, 6000#, 9000# |
| Coating Fitting Faces : | Oil Black Paint, Anti-rust Paint, Cold and Hot Dip Galvanized, Zinc Plated, Yellow Transparent |
| Check Sizes: | (SMLS UPTO 24”) 1/2” TO 36” (Buttweld 8” TO 36” ) |
| Standard: | ANSI B16.28 Fittings, JIS B2313 Fittings, ANSI B16.9 Fittings, MSS-SP-43 Type A Fittings, MSS-SP-43 Type B Fittings, JIS B2312 Fittings, MSS-SP-43 Type b Fittings |
| Application: | Fabrication Industry Water Pipeline Industry Chemical Industry Nuclear Power Plant Natural Gas Industry Oil And Gas Industry |
| Pipe | Fitting | Flanges | Valves | Bolts & Nuts |
|---|---|---|---|---|
| ASTM A106 Grade A | ASTM A234 Grade WPA | ASTM A105 | ASTM A216 Grade WCB | A193 Grade B7 A194 Grade 2H |
| ASTM A106 Grade B | A234 Grade WPB | ASTM A105 | ASTM A216 Grade WCB | |
| ASTM A106 Grade C | ASTM A234 Grade WPC | ASTM A105 | ASTM A216 Grade WCB |
| Tensile Requirements | WPB | WPC, WP11CL2 | WP11CL1 | WP11CL3 |
| Tensile Strength, minimum, ksi[MPa] | 60-85 | 70-95 | 60-85 | 75-100 |
| (0.2% offset or 0.5% extension-under-load) | [415-585] | [485-655] | [415-585] | [520-690] |
| Yield Strength, minimum, ksi[MPa] | 32 | 40 | 30 | 45 |
| [240] | [275] | [205] | [310] |
