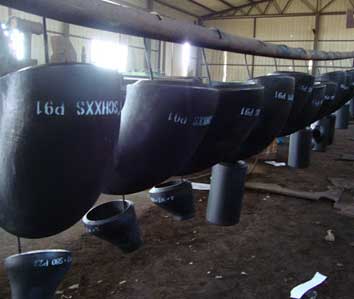

ASTM A234 WP91 Fittings

ASTM A234 Grade WP91 Reducing Tee

ASTM A234 WP91 Lateral Tee

Alloy Steel ASTM A234 WP91 Cl1 Equal Cross

A234 WP91 Welded Stub End

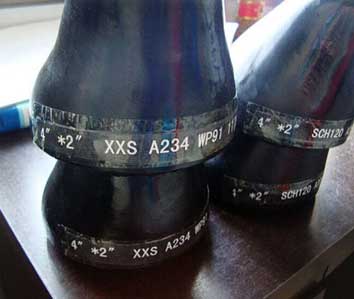

SA234 Gr WP91 Concentric Reducer

ASTM A234 Grade WP91 Equal Tee

Alloy Steel Grade WP91 45 Degree Elbow

A234 Grade Alloy 90 Degree Elbow

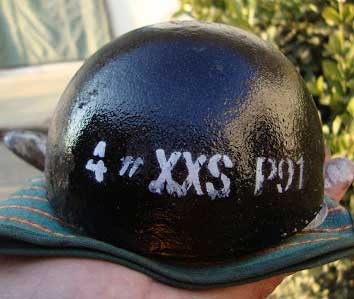

A234 Grade WP91 End Cap

Alloy Steel Grade WP91 Short Radius Elbow

AS a234 WP91 LR Elbow

Alloy Steel WP91 Eccentric Reducer

Standard Specification :	ASTM A234 WP91 Fittings
Check Sizes:	(SMLS UPTO 24”) 1/2” TO 36” (Buttweld 8” TO 36” )
Fitting Machining Equipment:	Pushing Machine, electric bevelling machine, Sand-blasting machine, Press machine, Bending machine etc
Coating Fitting Faces :	Yellow Transparent, Oil Black Paint, Zinc Plated, Anti-rust Paint, Cold and Hot Dip Galvanized
Standard:	ANSI B16.28 Fittings, JIS B2313 Fittings, ANSI B16.9 Fittings, MSS-SP-43 Type A Fittings, MSS-SP-43 Type b Fittings, MSS-SP-43 Type B Fittings, JIS B2312 Fittings
Application:	Natural Gas Industry Oil And Gas Industry Water Pipeline Industry Nuclear Power Plant Fabrication Industry Chemical Industry
Dimensions Class:	2000#, 3000#, 6000#, 9000#
Rating Pressure:	Pressure Rating Of: 3000 LBS, 6000 LBS, 9000 LBS
Thickness:	View Our Thickness: Schedule 5S, SCH10, SCH20, SCH10, SCH20, SCH30, SCHTD, SCH40, SCH60, XS, SCH80, SCH100, SCH120, SCH140, SCH160.

WPB B,C,D,E,	WPC C,D,E,	WP11 CL1	WP11 CL2,	WP11 CL3	WP22 CL1,	WP22 CL3	WP5 CL1,	WP5 CL3
Carbon	0.3	0.35	0.05–0.15	0.05–0.20	0.05–0.20	0.05–0.15	0.05–0.15	0.15
Manganese	0.29–1.06	0.29–1.06	0.30–0.60	0.30–0.80	0.30–0.80	0.30–0.60	0.30–0.60	0.30–0.60
Phosporus	0.05	0.05	0.03	0.04	0.04	0.04	0.04	0.04
Sulfur	0.058	0.058	0.03	0.04	0.04	0.04	0.04	0.03
Silicon	0.10 min	0.10 min	0.50–1.00	0.50–1.00	0.50–1.00	0.5	0.5	0.5
Chromium	0.4	0.4	1.00–1.50	1.00–1.50	1.00–1.50	1.90–2.60	1.90–2.60	4.0–6.0
Molybdenum	0.15 max	0.15 max	0.44–0.65	0.44–0.65	0.44–0.65	0.87–1.13	0.87–1.13	0.44–0.65
Nickel	0.4	0.4	…	…	…	…	…	…
Copper	0.4	0.4	…	…	…	…	…	…
Others	Vanadium 0.08	Vanadium 0.08	…	…	…	…	…	…

Grade	Tensile Strength (Mpa)	Yield Strength (Mpa)	Elongation %
ASTM A234 WP91 Fittings	415 - 585	≥205	≥20
