| Standard Specification : | ASTM A234 WP22 Fittings |
| Dimensions Class: | 2000#, 3000#, 6000#, 9000# |
| Rating Pressure: | Pressure Rating Of: 3000 LBS, 6000 LBS, 9000 LBS |
| Thickness: | View Our Thickness: Schedule 5S, SCH10, SCH20, SCH10, SCH20, SCH30, SCHTD, SCH40, SCH60, XS, SCH80, SCH100, SCH120, SCH140, SCH160. |
| Standard: | MSS-SP-43 Type b Fittings, MSS-SP-43 Type B Fittings, ANSI B16.28 Fittings, JIS B2313 Fittings, ANSI B16.9 Fittings, MSS-SP-43 Type A Fittings, JIS B2312 Fittings |
| Fitting Machining Equipment: | Sand-blasting machine, Press machine, Pushing Machine, electric bevelling machine, Bending machine etc |
| Coating Fitting Faces : | Anti-rust Paint, Cold and Hot Dip Galvanized, Yellow Transparent, Oil Black Paint, Zinc Plated |
| Application: | Nuclear Power Plant Oil And Gas Industry Water Pipeline Industry Natural Gas Industry Fabrication Industry Chemical Industry |
| Check Sizes: | (SMLS UPTO 24”) 1/2” TO 36” (Buttweld 8” TO 36” ) |
| Grade | C | Mn | Si | S | P | Cr | Mo |
| ASTM A234 WP22 Fittings | 0.05-0.15 | 0.3-0.5 | 0.5 | ≤0.04 | ≤0.04 | 2-2.5 | 0.87-1.13 |
SA234 Gr WP22 Concentric Reducer
ASTM A234 Grade WP22 Equal Tee
Alloy Steel Grade WP22 45 Degree Elbow

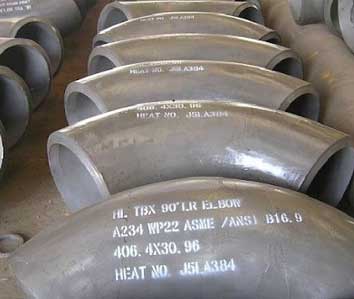

Alloy Steel A234 Grade 90 Degree Elbow
A234 Grade WP22 End Cap
Alloy Steel Grade WP22 Short Radius Elbow
AS a234 WP22 LR Elbow
Alloy Steel WP22 Eccentric Reducer
ASTM A234 Grade WP22 Reducing Tee
ASTM A234 WP22 Lateral Tee
ASTM A234 WP22 Cl1 Equal Cross
A234 WP22 Alloy Welded Stub End
| Grade | Tensile Strength (Mpa) | Yield Strength (Mpa) | Elongation % |
| SA 234 WP22 | 415 - 585 | ≥205 | ≥20 |
