| Grade | C | Mn | Si | S | P | Cr | Mo |
| ASTM A182 F9 Flange | 0.15 | 0.3 - 0.6 | 0.5 - 1 | 0.03 | 0.03 | 8 - 10 | 0.9 - 1.1 |
| Material Group | Common Name | Type | UNS | Forging Spec. | Casting Spec. Equivalent | DIN |
|---|---|---|---|---|---|---|
| 9Cr-1Mo | K90941 | A182-F9 | A217-C12 | X 12 CrMo 9 1 | 1.7386 | High temp erosive refinery service |
| Specification : | ASTM A182 F9 Flange |
| Standards: | BS10 Flange, DIN Flange, PN Flange, JIS Flange, ISO Flange, GOST Flange, UNI Flange, AWWA Flange, MSS SP44 Flange, ASME B16.38 Flange, EN-1092 Flange, ASME B16.5 Flange, ASME B16.47 (Series A, Series B) Flange |
| Size Chart : | 1/2″ (15 NB) To 48″ (1200NB) |
| Production Process: | Forged, Heat Treated and Machined |
| Coating Flange Faces : | Yellow Transparent, Cold and Hot Dip Galvanized, Anti-rust Paint, Zinc Plated, Oil Black Paint |
| Common Types of Flange : | Flanges 150 LB WNRF Class 300 RTJ 600# BLRF Class 900 SORF |
| Flange Machining Equipment: | Sand-blasting machine, Press machine, Bending machine, Pushing Machine, electric bevelling machine etc |
| Design For Size: | EN Flange, ASA Flange, ANSI Flange, BS Flange, PN Flange, ASME Flange, DIN Flange, JIS Flange |
| Pressure: | Check Pressure Rating Of Socket, Threaded: 3000 LBS, 6000 LBS, 9000 LBS |
| Dimensions Class: | 2000# Fittings, 3000# Fittings, 6000# Fittings, 9000# Fittings |
| Forged Type : | NPT (Threaded) Fittings, BSPT Fittings, BSPP Fittings. |
| Connect Type Type: | SMF Flange, LJF Flange, RF Flange, FF Flange, RTJ Flange, LMF Flange |
| Application: | Oil And Gas Industry Water Pipeline Industry Nuclear Power Plant Fabrication Industry Natural Gas Industry Chemical Industry |
| Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 380 | 585 | 20 % |
| ANSI/ASME B16.34 | ANSI PRESSURE RATING | ||||||
| Temperature °F | Class 150 | Class 300 | Class 400 | Class 600 | Class 900 | Class 1500 | Class 2500 |
| -20 to 100 | 265 | 695 | 925 | 1390 | 2085 | 3470 | 5785 |
| 200 | 260 | 680 | 905 | 1360 | 2035 | 3395 | 5660 |
| 300 | 230 | 655 | 870 | 1305 | 1955 | 3260 | 5435 |
| 400 | 200 | 640 | 855 | 1280 | 1920 | 3200 | 5330 |
| 500 | 170 | 620 | 830 | 1245 | 1865 | 3105 | 5180 |
| 600 | 140 | 605 | 805 | 1210 | 1815 | 3025 | 5040 |
| 650 | 125 | 590 | 785 | 1175 | 1765 | 2940 | 4905 |
| 700 | 110 | 570 | 755 | 1135 | 1705 | 2840 | 4730 |
| 750 | 95 | 530 | 710 | 1065 | 1595 | 2660 | 4430 |
| 800 | 80 | 510 | 675 | 1015 | 1525 | 2540 | 4230 |
| 850 | 65 | 485 | 650 | 975 | 1460 | 2435 | 4060 |
| 900 | 50 | 450 | 600 | 900 | 1350 | 2245 | 3745 |
| 950 | 35 | 280 | 375 | 560 | 845 | 1405 | 2345 |
| 1000 | 20 | 165 | 220 | 330 | 495 | 825 | 1370 |
Alloy Steel SA 182 Gr F9 Steel RTJ Flange
Alloy Steel A182 Grade F9 Raised Face Flange
AS A182 F9 Socket Weld Flange
Steel A182 F9 Alloy Steel Slip On Flange
Alloy Steel F9 Reducing Flange

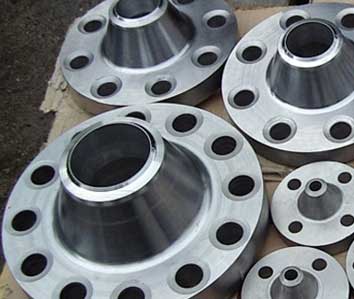

Alloy Steel A182 F9 Weld Neck Flange
Alloy A182 Gr F9 Blind Flange
Alloy Steel ASTM A182 Grade F9 Flat Face Flange

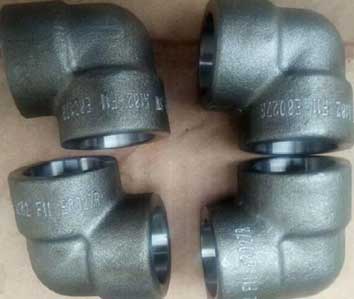

Alloy Steel F9 Forged 90 Degree Elbow
AS A182 F9 Socket Weld Cap
Alloy SA182 F9 Forged 45 Degree Elbow
ASTM A182 Gr F9 SW Full Coupling
| P# | G# | ISO | Spec | Type | UNS | KSI(MPa) | Product Form |
|---|---|---|---|---|---|---|---|
| 5B | 1 | 5.4 | A/SA-182 | F9 | K90941 | 85(585) | Forgings |
