Standard Specification : | ASTM A234 WP9 Fittings |
Standard: | JIS B2313 Fittings, ANSI B16.9 Fittings, MSS-SP-43 Type A Fittings, MSS-SP-43 Type b Fittings, MSS-SP-43 Type B Fittings, ANSI B16.28 Fittings, JIS B2312 Fittings |
Dimensions Class: | 2000#, 3000#, 6000#, 9000# |
Rating Pressure: | Pressure Rating Of: 3000 LBS, 6000 LBS, 9000 LBS |
Thickness: | View Our Thickness: Schedule 5S, SCH10, SCH20, SCH10, SCH20, SCH30, SCHTD, SCH40, SCH60, XS, SCH80, SCH100, SCH120, SCH140, SCH160. |
Check Sizes: | (SMLS UPTO 24”) 1/2” TO 36” (Buttweld 8” TO 36” ) |
Coating Fitting Faces : | Yellow Transparent, Oil Black Paint, Anti-rust Paint, Cold and Hot Dip Galvanized, Zinc Plated |
Fitting Machining Equipment: | Pushing Machine, electric bevelling machine, Sand-blasting machine, Press machine, Bending machine etc |
Application: | Natural Gas Industry Chemical Industry Nuclear Power Plant Fabrication Industry Water Pipeline Industry Oil And Gas Industry |

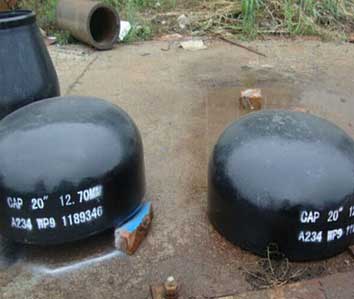

ASTM A234 Grade WP9 End Cap
ASTM Alloy Steel Grade WP9 Short Radius Elbow
AASTM S a234 WP9 LR Elbow
ASTM Alloy Steel WP9 Eccentric Reducer
ASTM A234 Grade WP9 Reducing Tee
ASTM A234 WP9 Lateral Tee
ASTM A234 Cl1 Equal Cross
ASTM A234 WP9 Welded Stub End
ASTM SA234 Gr WP9 Concentric Reducer

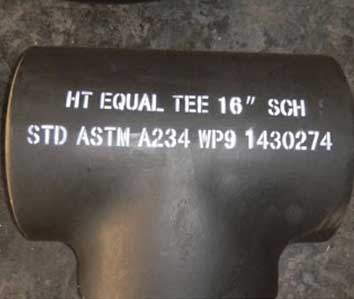

ASTM A234 Grade WP9 Equal Tee
ASTM Alloy Steel Grade WP9 45 Degree Elbow
ASTM A234 Grade WP9 90 Degree Elbow
Gr. | C | Mn | Si | S | P | Cr | Mo |
ASTM A234 WP9 Fittings | ≤0.15 | ≤0.6 | 1.00 | ≤0.03/div> | ≤0.03 | 8-10 | 0.90-1.10 |
Gr. | Tensile Strength (Mpa) | Yield Strength (Mpa) | Elongation % |
SA234 Gr WP9 | 380 minimum | 585 minimum | ≥30 |
