| Standard Specification : | ASTM A234 WP11 Fittings |
| Rating Pressure: | Pressure Rating Of: 3000 LBS, 6000 LBS, 9000 LBS |
| Thickness: | View Our Thickness: Schedule 5S, SCH10, SCH20, SCH10, SCH20, SCH30, SCHTD, SCH40, SCH60, XS, SCH80, SCH100, SCH120, SCH140, SCH160. |
| Check Sizes: | (SMLS UPTO 24”) 1/2” TO 36” (Buttweld 8” TO 36” ) |
| Standard: | MSS-SP-43 Type b Fittings, MSS-SP-43 Type B Fittings, ANSI B16.28 Fittings, JIS B2313 Fittings, ANSI B16.9 Fittings, MSS-SP-43 Type A Fittings, JIS B2312 Fittings |
| Fitting Machining Equipment: | Sand-blasting machine, Press machine, Pushing Machine, electric bevelling machine, Bending machine etc |
| Application: | Fabrication Industry Chemical Industry Water Pipeline Industry Natural Gas Industry Nuclear Power Plant Oil And Gas Industry |
| Dimensions Class: | 2000#, 3000#, 6000#, 9000# |
| Coating Fitting Faces : | Anti-rust Paint, Cold and Hot Dip Galvanized, Yellow Transparent, Oil Black Paint, Zinc Plated |
SA234 Gr WP11 Concentric Reducer

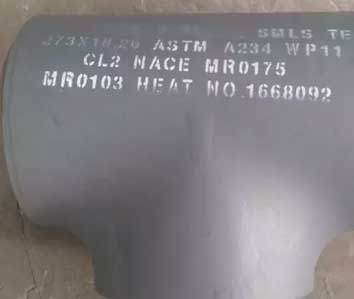

ASTM A234 Grade WP11 Equal Tee
Alloy Steel Grade WP11 45 Degree Elbow
A234 Grade WP11 90 Degree Elbow

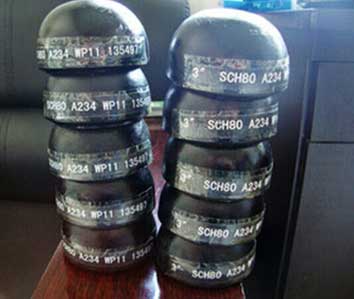

A234 Grade WP11 End Cap
Alloy Steel Grade WP11 Short Radius Elbow
AS a234 WP11 LR Elbow
Alloy Steel WP11 Eccentric Reducer
ASTM A234 Grade WP11 Reducing Tee
ASTM A234 WP11 Lateral Tee
ASTM A234 Cl1 Equal Cross
A234 WP11 Welded Stub End
| WPB B,C,D,E, | WPC C,D,E, | WP11 CL1 | WP11 CL2, | WP11 CL3 |
|---|---|---|---|---|
| Carbon | 0.3 | 0.35 | 0.05–0.15 | 0.05–0.20 |
| Manganese | 0.29–1.06 | 0.29–1.06 | 0.30–0.60 | 0.30–0.80 |
| Phosporus | 0.05 | 0.05 | 0.03 | 0.04 |
| Sulfur | 0.058 | 0.058 | 0.03 | 0.04 |
| Silicon | 0.10 minimum | 0.10 minimum | 0.50–1.00 | 0.50–1.00 |
| Chromium | 0.4 | 0.4 | 1.00–1.50 | 1.00–1.50 |
| Molybdenum | 0.15 max | 0.15 max | 0.44–0.65 | 0.44–0.65 |
| Nickel | 0.4 | 0.4 | … | … |
| Copper | 0.4 | 0.4 | … | … |
| Others | Vanadium 0.08 | Vanadium 0.08 | … | … |
| Tensile Requirements | WPB | WP11CL1 | WP11CL3 |
| Tensile Strength, minimum, ksi[MPa] | 60-85 | 60-85 | 75-100 |
| (0.2% offset or 0.5% extension-under-load) | [415-585] | [415-585] | [520-690] |
| Yield Strength, minimum, ksi[MPa] | 32 | 30 | 45 |
| [240] | [205] | [310] |
