MSS SP-75 Fittings : Tested And High Strength BW Pipe Fittings

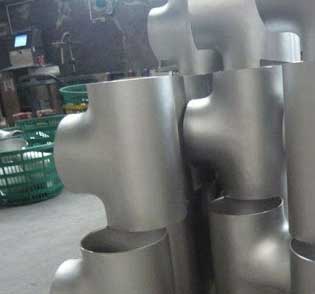

MSS SP-75 Fittings

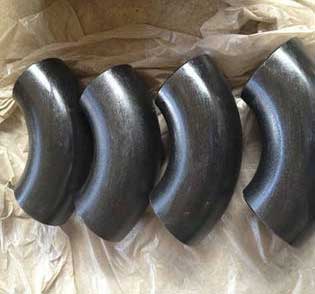

Buttweld MSS SP-75 Elbow

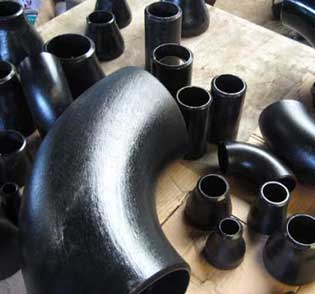

A860 MSS SP 75 Material

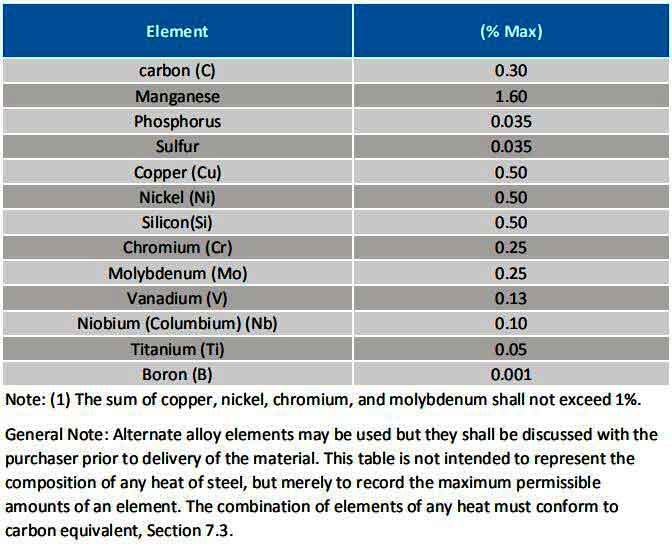

A860 MSS SP 75 Material Chemical Composition

Buttweld MSS SP-75 Elbow Mechanical Properties

MSS SP 75 Class	Yield Strength	Tensile Strength	Elongation	Charpy Test
MSS SP 75 Class	Min. psi	Min. psi	min. %	Ave. Energy absorbed @ 20°F
ASTM A860 WPHY 42	42000	60000	25	≥20ft*lbs
WPHY 46	46000	63000	25
ASTM A860 WPHY 52	52000	66000	25
ASTM A860 WPHY 56	56000	71000	20
ASTM A860 WPHY 60	60000	75000	20
ASTM A860 WPHY 65	65000	77000	20
ASTM A860 WPHY 70	70000	82000	18

MSS SP 75 Weld Fittings Specification

Standard Specification :	MSS SP-75 Fittings
Rating Pressure:	Pressure Rating Of: 3000 LBS, 6000 LBS, 9000 LBS
Application:	Nuclear Power Plant Natural Gas Industry Water Pipeline Industry Fabrication Industry Chemical Industry Oil And Gas Industry
Coating Fitting Faces :	Oil Black Paint, Cold and Hot Dip Galvanized, Zinc Plated, Anti-rust Paint, Yellow Transparent
Check Sizes:	(SMLS UPTO 24”) 1/2” TO 36” (Buttweld 8” TO 36” )
Thickness:	View Our Thickness: Schedule 5S, SCH10, SCH20, SCH10, SCH20, SCH30, SCHTD, SCH40, SCH60, XS, SCH80, SCH100, SCH120, SCH140, SCH160.
Standard:	JIS B2313, ANSI B16.9, MSS-SP-43 Type b, ANSI B16.28, JIS B2312, MSS-SP-43 Type A
Dimensions Class:	2000#, 3000#, 6000#, 9000#
Fitting Machining Equipment:	Bending machine, Electric bevelling machine, Pushing Machine, Press machine, Sand-blasting machine etc

MSS SP 75 Pipe Reducers Pressure Rating

MSS SP-75 Fittings Pressure Rating
NPS (inch)	Pipe Sch.	OD (inch)	Wall Thick. (in)	Temperature (oF)
				100	200	300	400	500	600
				(Pressure Rating)
				16700	16700	16700	15500	14400	13500
1"	40	1.315	0.133	2205	2205	2205	2047	1902	1783
	80	1.315	0.179	3061	3061	3061	2841	2640	2475
	160	1.315	0.250	4493	4493	4493	4170	3874	3632
1 1/2"	40	1.900	0.145	1629	1629	1629	1512	1404	1317
	80	1.900	0.200	2303	2303	2303	2138	1986	1862
	160	1.900	0.281	3362	3362	3362	3120	2899	2717
2"	40	2.375	0.154	1371	1371	1371	1272	1182	1108
	80	2.375	0.218	1985	1985	1985	1843	1712	1605
	160	2.375	0.344	3283	3283	3283	3047	2831	2654
3"	40	3.500	0.216	1301	1301	1301	1208	1122	1052
	80	3.500	0.300	1844	1844	1844	1712	1590	1491
	160	3.500	0.438	2787	2787	2787	2587	2403	2253
4"	40	4.500	0.237	1102	1102	1102	1023	950	891
	80	4.500	0.337	1596	1596	1596	1482	1377	1291
	160	4.500	0.531	2611	2611	2611	2424	2552	2111
5"	40	5.563	0.258	965	965	965	896	832	780
	80	5.563	0.375	1428	1428	1428	1325	1231	1154
	160	5.563	0.625	2474	2474	2474	2296	2133	2000
6"	40	6.625	0.280	877	877	877	814	756	709
	80	6.625	0.432	1379	1379	1379	1280	1189	1115
	160	6.625	0.719	2382	2382	2382	2211	2054	1925
8"	40	8.625	0.322	771	771	771	716	665	623
	80	8.625	0.500	1218	1218	1218	1131	1050	985
	160	8.625	0.906	2298	2298	2298	2133	1982	1858
10"	40	10.750	0.365	699	699	699	649	603	565
	80	10.750	0.594	1159	1159	1159	1075	999	937
	160	10.750	1.125	2289	2289	2289	2124	1974	1850

Available Type Of MSS SP 75 Pipe Fitting

MSS SP-75 Elbow

MSS SP-75 Tee

MSS SP-75 Reducer

MSS SP-75 End Cap

MSS SP-75 Stub End

MSS SP-75 Threaded Plug

MSS SP-75 Socket Weld Union

MSS SP-75 Cross

MSS SP-75 U Bend

MSS SP-75 Lateral Tee

MSS SP 75 Elbow Dimension

ANSI b16.9 fittings Sizes Nominal		ASME b16 9 Pipe Fitting Outside Diameter Y	Wall Thickness T (Pipe Elbow Schedule)		45 Deg Long Radius Elbow Centre to Face B	45 Deg Short Radius Elbow Weight	90 Deg Long Radiu Elbow Centre to Face A	90 Deg Long Radiu Elbow Weight	90 Deg Short Radius Elbow Centre to Face A	90 Deg Short Radius Elbow Weight Chart
mm	in	mm	mm	Schedule	mm	kg	mm	kg	mm	kg
15	1/2”	21.3	2.78	STD	15.9	0.04	38.1	0.08	–	–
			3.73	X.S	15.9	0.05	38.1	0.10	–	–
20	3/4”	26.7	2.87	STD	11.1	0.04	28.6	0.08	–	–
			3.91	X.S	11.1	0.05	28.6	0.11	–	–
25	1”	33.4	3.38	STD	22.2	0.09	38.1	0.15	25.4	0.11
			4.55	X.S	22.2	0.11	38.1	0.19	25.4	0.14
32	11/4”	42.2	3.56	STD	25.4	0.14	47.6	0.28	31.75	0.18
			4.85	X.S	25.4	0.2	47.6	0.39	31.75	0.24
40	11/2”	48.3	3.68	STD	28.6	0.2	57.1	0.4	38.1	0.26
			5.08	X.S	28.6	0.25	57.1	0.5	38.1	0.35
50	2”	60.3	3.91	STD	34.9	0.36	76.2	0.72	50.8	0.5
			5.54	X.S	34.9	0.5	76.2	1.0	50.8	0.68
65	21/2”	73.0	5.16	STD	44.4	0.73	95.2	1.46	63.5	0.95
			7.01	X.S	44.4	0.91	95.2	1.82	63.5	1.27
80	3”	88.9	5.49	STD	50.8	1.1	114.3	2.18	76.2	1.45
			7.62	X.S	50.8	1.45	114.3	2.86	76.2	1.95
100	4”	114.3	6.02	STD	63.5	2.1	152.4	4.2	101.6	2.8
			8.56	X.S	63.5	2.9	152.4	5.7	101.6	3.9
125	5”	141.3	6.65	STD	79.4	3.4	190.0	6.8	127.0	4.8
			9.5	X.S	79.4	5.0	190.0	10.0	127.0	6.5
150	6”	168.3	7.11	STD	95.2	5.1	229.0	10.1	152.4	6.8
			10.97	X.S	95.2	7.7	229.0	15.3	152.4	10.2
200	8”	219.1	8.18	STD	127.0	10.2	305.0	20.4	203.0	13.6
			12.7	X.S	127.0	15.5	305.0	30.9	203.0	20.9
250	10”	273.9	9.27	STD	159.0	18.1	381.0	36.1	254.0	24.1
			12.7	X.S	159.0	24.4	381.0	48.8	254.0	32.5
300	12”	323.9	9.52	STD	190.0	26.6	457.0	53.1	305.0	35.4
			12.7	X.S	190.0	35.0	457.0	70.0	305.0	46.7
350	14”	355.6	9.52	STD	222.0	34.1	533.0	68.1	356.0	45.4
			12.7	X.S	222.0	45.0	533.0	90.0	356.0	60.0
400	16”	406.4	9.52	STD	254.0	45.0	610.0	89.3	406.0	59.5
			12.7	X.S	254.0	59.0	610.0	118.0	406.0	78.7
450	18”	457.0	9.52	STD	286.0	56.5	686.0	113.0	457.0	75.6
			12.7	X.S	286.0	75.0	686.0	150.0	457.0	100.0
500	20”	508.0	9.52	STD	318.0	85.0	762.0	140.0	508.0	93.5
			12.7	X.S	318.0	112.5	762.0	186.0	508.0	124.0
600	24”	610.00	9.52	STD	381.0	101.5	914.0	203.0	610.0	135.0
			12.7	X.S	381.0	134.5	914.0	269.0	610.0	179.0
