DIN 2543 PN16 Flange Standard
DIN 2543 PN16 Flange Standard
DIN 2543 Pn16 Slip On Flange
DIN 2543 Pn16 Slip On Flange
DIN 2543 PN16 Plate Flange
DIN 2543 PN16 Plate Flange

Specifications Of Din 2543 Flange Standard


Specification : DIN 2543 PN16 Flanges
Design For Size: JIS, BS, ANSI, ASME, EN, ASA
Production Process: Forged, Heat Treated and Machined
Application: Fabrication Industry
Oil And Gas Industry
Natural Gas Industry
Chemical Industry
Water Pipeline Industry
Nuclear Power Plant
Connect Type Type: SMF, LMF, RF, LJF, FF, RTJ
Standard : MSS SP44 Flange, BS10 Flange, ASME B16.47 (Series A, Series B) Flange, UNI Flange, ASME B16.38 Flange, ISO Flange, JIS Flange, EN-1092 Flange, ASME B16.5 Flange, AWWA Flange, GOST Flange
Supporting Flanges Material: Flanges Bolts, Gasket, Ring Joint
Machining Equipment: Press machine, Pushing Machine, Electric bevelling machine, Bending machine, Sand-blasting machine etc
Coating Flanges Faces : Anti-rust Paint, Cold and Hot Dip Galvanized, Zinc Plated, Oil Black Paint, Yellow Transparent
Size Chart : 1/2″ (15 NB) To 48″ (1200NB)
Common Types of Flanges Dimensions: Class 150 RTJ
Flanges 300 LB WNRF
Class 900 SORF
1500# BLRF
Class 2500 BLRF
Pressure Rating Table: Class 150 LBS, Class 300 LBS, Class 600 LBS, Class 900 LBS, Class 1500 LBS, Class 2500 LBS

Types Of DIN 2543 PN16 Slip On Flange


Din 2543 Pn16 Slip On Flange

Din 2543 Pn16 Slip On Flange

DIN 2543 PN16 Plate Flange

DIN 2543 PN16 Plate Flange

Stainless Steel DIN 2543 PN16 Flange

Stainless Steel Din 2543 PN16 Flange

DIN 2543 PN 16 DN 300 Flange

DIN 2543 16 DN 300 Flange

Flat Flange DIN 2543 PN16

Flat Flanges Din 2543 PN16

Alloy Steel DIN 2543 pn16 flange

Alloy Steel DIN 2543 pn16 flange

Flange DIN 2543 PN16

Flange DIN 2543 PN16

DIN SS 2543 pn16 Flange

DIN SS 2543 pn16 Flange

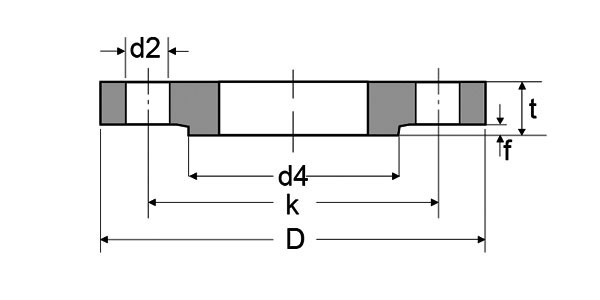

Dimensions Of DIN 2543 PN16 Plate Flange


Dimensions Of DIN 2543 PN16 Plate Flange

Bore Comm. Dimension RF Drilling Appr.
Weight (Kilogram)
Nominal Bore d1 D t K d4 f No. of Bolts x d2 DIN 2543
10 14 90 14 60 40 2 4 M12 (1/2") 14 0.63
17.2*
15 20 95 14 65 45 2 4 M12 (1/2") 14 0.72
21.3*
20 25 105 16 75 58 2 4 M12 (1/2") 14 1.01
26.9*
25 30 115 16 85 68 2 4 M12 (1/2") 14 1.23
33.7*
32 38 140 16 100 78 2 4 M16 (5/8") 18 1.80
42.4*
40 44.5 150 16 110 88 3 4 M16 (5/8") 18 2.09
48.3*
50 57 165 18 125 102 3 4 M16 (5/8") 18 2.88
60.3*
65 76.1* 185 18 145 122 3 4 M16 (5/8") 18 3.66
80 88.9 200 20 160 138 3 8 M16 (5/8") 18 4.77
100 108 220 20 180 158 3 8 M16 (5/8") 18 5.65
114.3*
125 133 250 22 210 188 3 8 M16 (5/8") 18 8.42
139.7*
150 159 285 22 240 212 3 8 M20 (3/4") 23 10.4
168.3*
200 216 340 24 295 268 3 12 M20 (3/4") 23 16.1
219.1*
250 267 405 26 355 320 3 12 M24 (7/8") 27 24.9
273*
300 318 460 28 410 378 4 12 M24 (7/8") 27 35.1
323.9*
350 355.6* 520 30 470 438 4 16 M24 (7/8") 27 47.8
368
400 406.4* 580 32 525 490 4 16 M27 (1") 30 63.5
419
500 508* 715 36 650 610 4 20 M30 (1-1/8") 33 102.0
521

din 2543 flange Pressure Rating


Temperature (in F°) Class 150 Class 300 Class 400 Class 600 Class 900 Class 1500 Class 2500
< 100 285 740 985 1480 2220 3705 6170
200 260 680 905 1360 2035 3395 5655
300 230 655 870 1310 1965 3270 5450
400 200 635 845 1265 1900 3170 5280
500 170 605 805 1205 1810 3015 5025
600 140 570 755 1135 1705 2840 4730
650 125 550 730 1100 1650 2745 4575
700 110 530 710 1060 1590 2655 4425
750 95 505 675 1015 1520 2535 4230
800 80 410 550 825 1235 2055 3430
850 65 320 425 640 955 1595 2655
900 50 230 305 460 690 1150 1915
950 35 135 185 275 410 685 1145
1000 20 85 115 170 255 430 715
Hydrostatic Test (psig) 450 1125 1500 2225 3350 5575 9275

din 2543 pn16 slip on flange Size Chart


NPS
NPS
(inch)
Diammeter of
Flanges
(inch)		 No.
of
Bolts		 Diammeter of
Bolts
(inch)		 Diammeter of
Bolt Holes
(inch)		 Bolt
Circle
(inch)
1/4 3-3/8 4 1/2 0.62 2-1/4
1/2 3-1/2 4 1/2 0.62 2-3/8
3/4 3-7/8 4 1/2 0.62 2-3/4
1 4-1/4 4 1/2 0.62 3-1/8
1-1/4 4-5/8 4 1/2 0.62 3-1/2
1-1/2 5 4 1/2 0.62 3-7/8
2 6 4 5/8 0.75 4-3/4
2-1/2 7 4 5/8 0.75 5-1/2
3 7-1/2 4 5/8 0.75 6
3-1/2 8-1/2 8 5/8 0.75 7
4 9 8 5/8 0.75 7-1/2
5 10 8 3/4 0.88 8-1/2
6 11 8 3/4 0.88 9-1/2
8 13-1/2 8 3/4 0.88 11-3/4
10 16 12 7/8 1 14-1/4
12 19 12 7/8 1 17
14 21 12 1 1.12 18-3/4
16 23-1/2 16 1 1.12 21-1/4
18 25 16 1-1/8 1.25 22-3/4
20 27-1/2 20 1-1/8 1.25 25
24 32 20 1-1/4 1.38 29-1/2
