ASME B16.11 Elbow
ASME B16.11 Elbow
45 Degree Socket Weld Elbow
45 Degree Socket Weld Elbow
Threaded 90 Deg Elbow
Threaded 90 Deg Elbow


ANSI B16.11 Forged Elbow Specification


Specification : ASME B16.9 11 Elbow
Size Chart Of Threaded Elbow: 1/8” NB to 4” NB (Screwed-Socket)
Forged Type : NPT (Threaded), BSPT, BSPP.
Elbow SW Dimensions Class: 2000#, 3000#, 6000#, 9000#
Standard Of 45 Degree Npt Elbow: JISB2311, IS 2062, DIN, ANSI B16.28, ASME B16.9, BS10, ASME B16.47, ASME B16.38, MSS-SP-43, JISB2313, ASME B16.25, MSS SP-75, DIN2605, JISB2312, PN, AWWA C207, BS4504, BS1560, BS, GB, ISO
NPT 90 Elbow Connection Type : Welding
Elbow 90 Deg SW Pressure: Check Pressure Rating Of Socket, Threaded: 3000 LBS, 6000 LBS, 9000 LBS
Mills And Origin : Europe, India, Japanese, Russian, USA

45 Degree Threaded Elbow Weight Chart


Class 2000 Nominal Pipe Size 1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3 4
B – 29/32 1 1/16 1 5/16 1 9/16 1 27/32 2 7/32 2 1/2 3 1/32 3 11/16 4 5/16 5 3/4
F – 3/4 3/4 1 1 1/8 1 1/4 1 5/16 1 3/8 1 11/16 2 1/16 2 1/2 3 1/8
Wt – 0.188 0.236 0.435 0.740 1.058 1.375 1.740 2.883 7.750 11.313 19.125


Class 3000		 1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3 4
B 29/32 1 1/16 1 5/16 1 9/16 1 27/32 2 7/32 2 1/2 3 1/32 3 11/32 4 4 3/4 6
F 3/4 3/4 1 1 1/8 1 1/4 1 5/16 1 3/8 1 11/16 1 3/4 2 1/16 2 1/2 3 1/8
Wt 0.250 0.290 0.500 0.750 1.188 1.988 2.235 3.000 4.930 7.375 13.588 19.063


Class 6000		 1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3 4
B 1 1/6 1 5/16 1 9/16 1 27/32 2 7/32 2 1/2 3 1/32 3 11/32 4 4 3/4 5 3/4 –
F 3/4 1 1 1/8 1 1/4 1 5/16 1 3/8 1 11/16 1 3/4 2 1/16 2 1/2 3 1/8 –
Wt 0.250 0.640 0.500 1.438 2.188 2.785 4.688 5.750 9.500 15.000 30.563 –

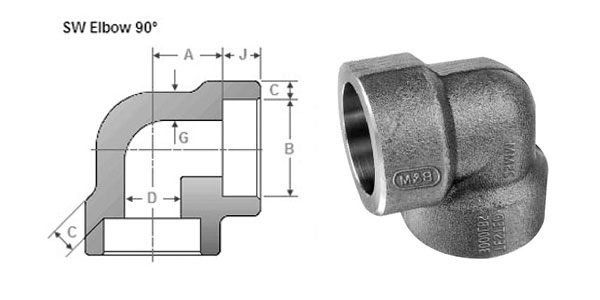

90 Degree Socket Weld Elbow Dimensions


90 Degree Socket Weld Elbow Dimensions

NPS Socket
Bore		 Depth
Socket		 Bore
DIA		 Socket
WT		 Body
WT
B J D C G
1/2 21.95
21.70		 10 16.6
15		 4.65
4.10		 3.75
3/4 27.30
27.05		 13 21.7
20.2		 4.90
4.25		 3.90
1 34.05
33.80		 13 27.4
25.9		 5.70
5.00		 4.55
1.1/4 42.80
42.55		 13 35.8
34.3		 6.05
5.30		 4.85
1.1/2 48.90
48.65		 13 41.7
40.1		 6.35
5.55		 5.10
2 61.35
61.10		 16 53.5
51.7		 6.95
6.05		 5.55
2.1/2 74.20
73.80		 16 64.2
61.2		 8.75
7.65		 7.00
3 90.15
89.80		 16 79.5
46.4		 9.50
8.30		 7.60
4 115.80
115.45		 19 103.8
100.7		 10.70
9.35		 8.55

Screwed Elbow & Socket Weld Elbow Type


1-1/2 inch Socket 316L Socket Weld 45 Degree Elbow

1-1/2 inch Socket 316L Socket Weld 45 Degree Elbow

2 Inch SW 6000# Pipe Elbow 3000lb

2 Inch SW 6000# Pipe Elbow 3000lb

3 Inch SW 3000# 304L 45 Degree Socket Weld Elbow

3 Inch SW 3000# 304L 45 Degree Socket Weld Elbow

3/4 x 1/2 inch 2000# SW 90 Degree Elbow

3/4 x 1/2 inch 2000# SW 90 Degree Elbow

1 inch 9000# 304L SS ASME B16.11 90 Degree Elbow

1 inch 9000# 304L SS ASME B16.11 90 Degree Elbow

2 inch 2000# Duplex Steel 2205 Forged Socket Weld Elbow 90 Degree

2 inch 2000# Duplex Steel 2205 Forged Socket Weld Elbow 90 Degree

1/8 inch 150# 45 Degree Threaded Elbow

1/8 inch 150# 45 Degree Threaded Elbow

1-1/2 inch NPT x NPS Threaded Elbow Class 3000

1-1/2 inch NPT x NPS Threaded Elbow Class 3000

1/8 inch 3000# Threaded Reducing Elbow

1/8 inch 3000# Threaded Reducing Elbow

1/8 inch 6000# 90 Degree Elbow Female Threaded

1/8 inch 6000# 90 Degree Elbow Female Threaded

1/4 Npt 90 Degree Elbow

1/4 Npt 90 Degree Elbow

12 inch Stainless Steel 90 Degree Threaded Elbow

12 inch Stainless Steel 90 Degree Threaded Elbow

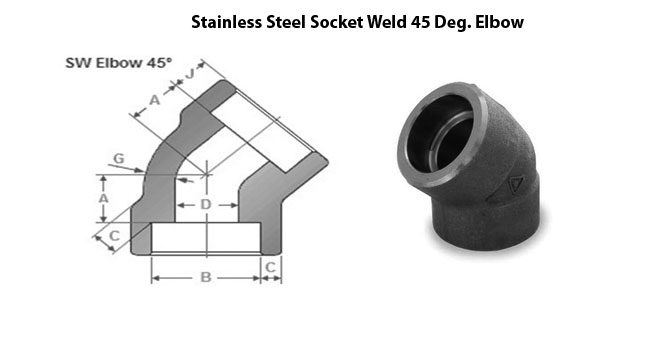

Socket Weld 45 Degree Elbow Dimensions


Socket Weld 45 Degree Elbow Dimensions

NPS Socket
Bore		 Depth
Socket		 Bore
diameter		 Socket
wall thickness		 Body
wall thickness		 Center to bottom
of socket
A
B J D C G 45°
1/2 21.95
21.70		 10 16.6
15		 4.65
4.10		 3.75 11.5
3/4 27.30
27.05		 13 21.7
20.2		 4.90
4.25		 3.90 12.5
1 34.05
33.80		 13 27.4
25.9		 5.70
5.00		 4.55 14
1¼ 42.80
42.55		 13 35.8
34.3		 6.05
5.30		 4.85 17
1½ 48.90
48.65		 13 41.7
40.1		 6.35
5.55		 5.10 21
2 61.35
61.10		 16 53.5
51.7		 6.95
6.05		 5.55 25
2½ 74.20
73.80		 16 64.2
61.2		 8.75
7.65		 7.00 29
3 90.15
89.80		 16 79.5
46.4		 9.50
8.30		 7.60 31.5
4 115.80
115.45		 19 103.8
100.7		 10.70
9.35		 8.55 41.5

Threaded Elbow Class 3000 Dimensions


NPS Min Length
of Thread		 Outside Dia
of Band		 Min
WT		 Center to End
B J D G 45°
C
1/2 10.9 13.6 38 4.09 25
3/4 12.7 13.9 46 4.32 28
1 14.7 17.3 56 4.98 33
1.1/4 17 18 62 5.28 35
1.1/2 17.8 18.4 75 5.56 43
2 19 19.2 84 7.14 44
2.1/2 23.6 28.9 102 7.65 52
3 25.9 30.5 121 8.84 64
4 27.7 33 152 11.18 79

Screwed 45 Deg Elbow 6000 Dimensions


NPS Min Length
of Thread		 Outside Dia
of Band		 Min
WT		 Center to End
B J D G 45°
C
1/2 10.9 13.6 46 8.15 28
3/4 12.7 13.9 56 8.53 33
1 14.7 17.3 62 9.93 35
1.1/4 17 18 75 10.59 43
1.1/2 17.8 18.4 84 11.07 44
2 19 19.2 102 12.09 52
2.1/2 23.6 28.9 121 15.29 64
3 25.9 30.5 146 16.64 79
4 27.7 33 152 18.67 79


90 Degree Threaded Street Elbow Dimensions



Class 2000		 Nominal
Pipe
Size		 1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3 4
A – 7/8 31/32 1 1/8 1 5/16 1 1/2 1 3/4 2 2 3/8 3 3 3/8 4 3/16
B – 29/32 1 1/16 1 5/16 1 9/16 1 27/32 2 7/32 2 1/2 3 1/32 3 11/16 4 5/16 5 3/4
Wt – 0.198 0.283 0.500 0.773 1.013 1.550 2.180 3.140 6.500 10.925 26.675

Class 3000 1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3 4
A 7/8 31/32 1 1/8 1 5/16 1 1/2 1 3/4 2 2 3/8 2 1/2 3 1/4 3 3/4 4 1/2
B 29/32 1 1/16 1 5/16 1 9/16 1 27/32 2 7/32 2 1/2 3 1/32 3 11/32 4 4 3/4 6
Wt 0.236 0.350 0.592 0.973 1.355 2.265 2.407 3.500 5.920 11.900 14.438 31.975

Class 6000 1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3 4
A 31/32 1 1/8 1 5/16 1 1/2 1 3/4 2 2 3/8 2 1/2 3 1/4 3 3/4 4 3/16 4 1/2
B 1 1/6 1 5/16 1 9/16 1 27/32 2 7/32 2 1/2 3 1/32 3 11/32 4 4 3/4 5 3/4 6
Wt 0.250 0.625 1.023 1.625 2.625 3.500 6.750 7.500 13.438 20.875 39.050 38.000

Threaded Female And Male 90 Deg Elbow Dimensions


NPS Min Length
of Thread		 Outside Dia
of Band		 Min
WT		 Center to End
B J D G 90°
A		 45°
C
1/2 10.9 13.6 46 8.15 38 28
3/4 12.7 13.9 56 8.53 44 33
1 14.7 17.3 62 9.93 51 35
1.1/4 17 18 75 10.59 60 43
1.1/2 17.8 18.4 84 11.07 64 44
2 19 19.2 102 12.09 83 52
2.1/2 23.6 28.9 121 15.29 95 64
3 25.9 30.5 146 16.64 106 79
4 27.7 33 152 18.67 114 79

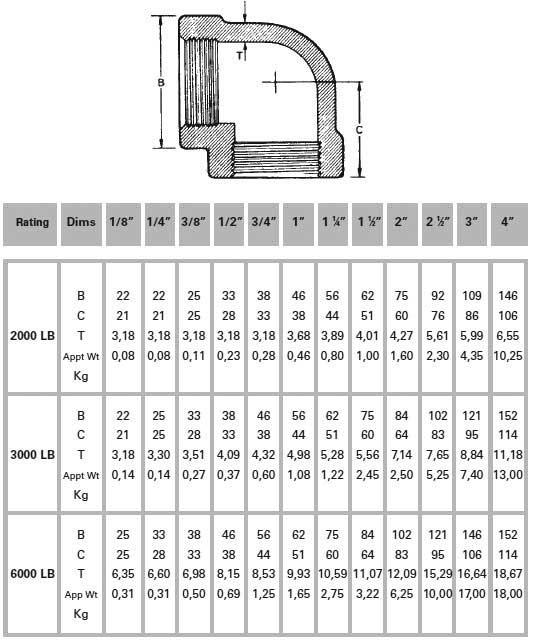

90 Degree Elbow Npt Weight Chart


90 Degree Elbow Npt Weight Chart
