ANSI B16.11 Threaded Reducer Specification


Specification : ASME B16.11 Reducer
Threaded Reducer Dimensions Class: 2000#, 3000#, 6000#, 9000#
Standard: JISB2311, MSS SP-75, DIN2605, JISB2312, PN, IS 2062, DIN, ANSI B16.28, ASME B16.9, BS10, ASME B16.47, ASME B16.38, MSS-SP-43, JISB2313, ASME B16.25, AWWA C207, BS4504, BS1560, BS, GB, ISO
Socket Reducer Size: 1/8” NB to 4” NB (Screwed-Socket)
Forged Type : NPT (Threaded), BSPT (Socket), BSPP.
Origin And Mills: Europe, Russian, USA, India, Japanese
Pressure Rating: Socket, Threaded Rating: 3000 LBS, 6000 LBS, 9000 LBS
Connection Type : Welding

Type Of Stainless Steel Socket Weld Reducer


2 x 1 Socket Weld Reducer

2 x 1 Socket Weld Reducer

3 x 2 Socket Weld Reducer Coupling

3 x 2 Socket Weld Reducer Coupling

50mm to 40mm Socket Weld Reducer Bushing

50mm to 40mm Socket Weld Reducer Bushing

2 Inch Socket Weld Reducer Fitting

2 Inch Socket Weld Reducer Fitting

3/6 x 1/2 9000# Eccentric Socket Weld Reducer

3/6 x 1/2 9000# Eccentric Socket Weld Reducer

1 To 2 Inch Stainless Steel Socket Weld Reducer

1 To 2 Inch Stainless Steel Socket Weld Reducer

SCH 40 Class 2000 Pipe Socket Weld Reducer

SCH 40 Class 2000 Pipe Socket Weld Reducer

6000# Threaded Reducer Fittings

6000# Threaded Reducer Fittings

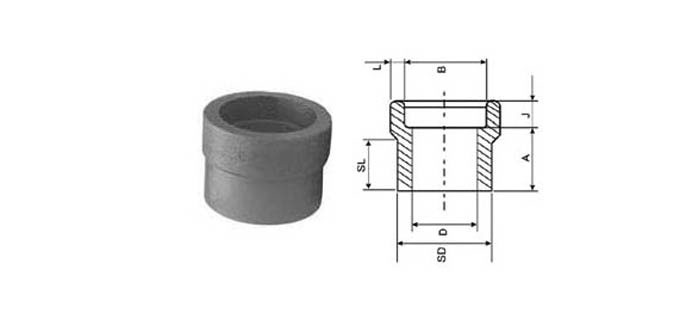

Socket Weld Reducer Fitting Dimensions


Socket Weld Reducer Fitting Dimensions


ASME B16.11 Forged Reducer Dimensions


Class 3000 Class 6000 Class 9000
Nominal Pipe Size C D Fitting
Type		 A B E Fitting
Type		 A B E Fitting
Type		 A B E
3/8 x 1/4 0.675 0.555 1 7/16 3/4 15/16 1 7/16 7/8 1
1/2 x 3/8 0.850 0.690 1 7/16 13/16 1 1/16 1 7/16 15/16 1 3/16
1/2 x 1/4 0.850 0.555 1 7/16 13/16 15/16 1 7/16 7/8 1
3/4 x 1/2 1.060 0.855 1 7/16 7/8 1 5/16 1 7/16 1 1/16 1 3/8 1 7/16 1 3/16 1 3/4
3/4 x 3/8 1.060 0.690 2 7/16 5/8 - 1 7/16 7/8 1 3/16
3/4 x 1/4 1.060 0.555 2 3/8 11/16 - 2 3/8 7/8 -
1 x 3/4 1.325 1.065 1 9/16 15/16 1 1/2 1 9/16 1 1/8 1 11/16 1 9/16 1 1/4 2
1 x 1/2 1.325 0.855 2 1/2 5/8 - 1 7/16 1 1/8 1 3/8 1 7/16 1 1/8 1 3/4
1 x 3/8 1.325 0.690 2 7/16 11/16 - 2 1/2 7/8 -
1 x 1/4 1.325 0.555 2 3/8 3/4 - 2 3/8 15/16 -
1 1/4 x 1 1.670 1.330 1 9/16 1 1 7/8 1 9/16 1 3/16 2 1 9/16 1 3/8 2 3/8
1 1/4 x 3/4 1.670 1.065 2 9/16 11/16 - 2 9/16 13/16 - 1 9/16 1 3/16 2
1 1/4 x 1/2 1.670 0.855 2 1/2 3/4 - 2 1/2 7/8 - 2 1/2 7/8 -
1 1/4 x 3/8 1.670 0.690 2 7/16 13/16 - 2 7/16 15/16 -
1 1/4 x 1/4 1.670 0.555 2 3/8 7/8 - 2 3/8 1 -
1 1/2 x 1 1/4 1.910 1.675 1 9/16 1 1/8 2 1/4 1 9/16 1 3/8 2 3/8 1 9/16 1 5/8 2 3/4
1 1/2 x 1 1.910 1.330 2 5/8 11/16 - 1 9/16 1 3/16 2 1 9/16 1 3/8 2 3/8
1 1/2 x 3/4 1.910 1.065 2 9/16 3/4 - 2 9/16 1 - 2 9/16 1 -
1 1/2 x 1/2 1.910 0.855 2 1/2 13/16 - 2 1/2 1 1/16 - 2 9/16 1 -
1 1/2 x 3/8 1.910 0.690 2 7/16 7/8 - 2 7/16 1 1/8 -
2 x 1 1/2 2.385 1.915 1 9/16 1 1/4 2 1/2 1 9/16 1 7/8 2 11/16 1 9/16 2 1/16 3
2 x 1 1/4 2.385 1.675 2 11/16 13/16 - 2 7/8 15/16 - 1 9/16 2 2 3/4
2 x 1 2.385 1.330 2 5/8 7/8 - 2 13/16 1 - 2 13/16 1 -
2 x 3/4 2.385 1.065 2 9/16 15/16 - 2 3/4 1 1/16 - 2 3/4 1 1/16 -
2 x 1/2 2.385 0.855 2 1/2 1 - 2 11/16 1 1/8 - 2 11/16 1 1/8 -
