STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | EN |
Inconel 625 | 2.4856 | N06625 | NCF 625 | NA 21 | ХН75МБТЮ | NiCr23Fe |
Specification : | Inconel 625 Flanges |
Size Chart : | 1/2″ (15 NB) To 48″ (1200NB) |
Production Process: | Heat Treated, Machined, Forged |
Coating Flanges Faces : | Zinc Plated, Yellow Transparent, Anti-rust Paint, Cold and Hot Dip Galvanized, Oil Black Paint |
Standards: | JIS Flanges, ISO Flanges, GOST Flanges, UNI Flanges, AWWA Flanges, MSS SP44 Flanges, ASME B16.38 Flanges, EN-1092 Flanges, BS10 Flanges, DIN Flanges, PN Flanges, ASME B16.5 Flanges, ASME B16.47 (Series A, Series B) Flanges |
Common Types of Flanges : | Flanges 150 LB WNRF Class 300 RTJ 600# BLRF Class 900 SORF |
Supporting Flanges Material: | Flanges Bolts, Ring Joint, Gasket |
Application: | Fabrication Industry Water Pipeline Industry Chemical Industry Natural Gas Industry Oil And Gas Industry Nuclear Power Plant |
Design For Size: | EN, ASA, ASME, BS, PN, DIN, JIS, ANSI |
Flanges Machining Equipment: | Bending machine, Pushing Machine, Sand-blasting machine, Press machine, electric bevelling machine etc |
Connect Type: | RF, FF, RTJ, LMF, SMF, LJF |
Pressure Rating Table: | Class 150 LBS, Class 300 LBS, Class 600 LBS, Class 900 LBS, Class 1500 LBS, Class 2500 LBS |
Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
Inconel 625 | 0.10 max | 0.50 max | 0.50 max | 0.015max | – | 5.0 max | 58.0 min | 20.0 – 23.0 |
Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
Inconel 625 | 8.4 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 517 | 42.5 % |
ASME B16.5 | Inconel 625 Flanges Pressure Rating | ||||||
Temperature °F | Class 150 | Class 300 | Class 400 | Class 600 | Class 900 | Class 1500 | Class 2500 |
-20 to 100 | 275 | 720 | 960 | 1440 | 2160 | 3600 | 6000 |
200 | 230 | 600 | 800 | 1200 | 1800 | 3000 | 5000 |
300 | 205 | 540 | 720 | 1080 | 1620 | 2700 | 4500 |
400 | 190 | 495 | 660 | 995 | 1490 | 2485 | 4140 |
500 | 170 | 465 | 620 | 930 | 1395 | 2330 | 3880 |
600 | 140 | 435 | 580 | 875 | 1310 | 2185 | 3640 |
650 | 125 | 430 | 575 | 860 | 1290 | 2150 | 3580 |
700 | 110 | 425 | 565 | 850 | 1275 | 2125 | 3540 |
750 | 95 | 415 | 555 | 830 | 1245 | 2075 | 3460 |
800 | 80 | 405 | 540 | 805 | 1210 | 2015 | 3360 |
850 | 65 | 395 | 530 | 790 | 1190 | 1980 | 3300 |
900 | 50 | 390 | 520 | 780 | 1165 | 1945 | 3240 |
950 | 35 | 380 | 510 | 765 | 1145 | 1910 | 3180 |
1000 | 20 | 320 | 430 | 640 | 965 | 1605 | 2675 |
1050 | 20 | 310 | 410 | 615 | 925 | 1545 | 2570 |
1100 | 20 | 255 | 345 | 515 | 770 | 1285 | 2145 |
1150 | 20 | 200 | 265 | 400 | 595 | 995 | 1655 |
1200 | 20 | 155 | 205 | 310 | 465 | 770 | 1285 |
1250 | 20 | 115 | 150 | 225 | 340 | 565 | 945 |
1300 | 20 | 85 | 115 | 170 | 255 | 430 | 715 |
1350 | 20 | 60 | 80 | 125 | 185 | 310 | 515 |
1400 | 20 | 50 | 65 | 95 | 145 | 240 | 400 |
1450 | 15 | 35 | 45 | 70 | 105 | 170 | 285 |
1500 | 10 | 25 | 35 | 55 | 80 | 135 | 230 |
Inconel 625 Reducing Flanges

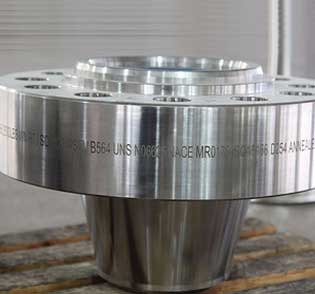

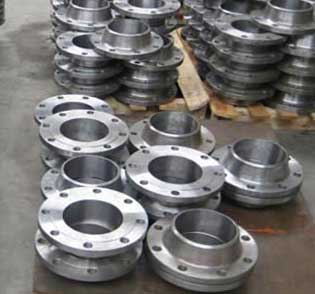

Inconel 625 Weld Neck Flanges
Inconel 625 Blind Flanges
Inconel 625 Flat Face Flanges
Inconel 625 RTJ Flanges
Inconel 625 Raised Face Flanges
Inconel 625 Socket Weld Flanges

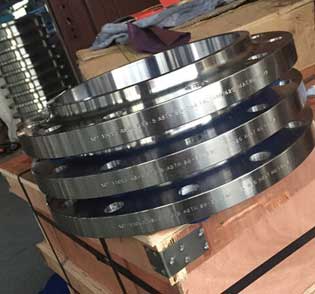

Inconel 625 Slip On Flanges
Inconel 625 Orifice Flanges
Inconel 625 Spectacle Flanges
