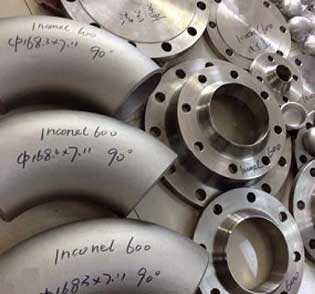

Specification : | Inconel 600 Flanges |
Coating Flanges Faces : | Cold and Hot Dip Galvanized, Zinc Plated, Anti-rust Paint, Yellow Transparent, Oil Black Paint |
Standards: | PN Flanges, JIS Flanges, ISO Flanges, GOST Flanges, UNI Flanges, AWWA Flanges, MSS SP44 Flanges, ASME B16.38 Flanges, EN-1092 Flanges, BS10 Flanges, DIN Flanges, ASME B16.5 Flanges, ASME B16.47 (Series A, Series B) |
Pressure Rating Table: | Class 150 LBS, Class 300 LBS, Class 600 LBS, Class 900 LBS, Class 1500 LBS, Class 2500 LBS |
Flanges Machining Equipment: | Bending machine, Pushing Machine, Sand-blasting machine, Press machine, electric bevelling machine etc |
Connect Type: | RF, FF, RTJ, LMF, SMF, LJF |
Common Types of Flanges : | Flanges 150 LB WNRF Class 300 RTJ 600# BLRF Class 900 SORF |
Supporting Flanges Material: | Flanges Bolts, Ring Joint, Gasket |
Application: | Fabrication Industry Chemical Industry Oil And Gas Industry Water Pipeline Industry Natural Gas Industry Nuclear Power Plant |
Design For Size: | ANSI, EN, ASA, DIN, JIS, ASME, BS, PN |
Size Chart : | 1/2″ (15 NB) To 48″ (1200NB) |
Production Process: | Heat Treated, Machined, Forged |
Standards | Inconel 600 |
UNS | N06600 |
Werkstoff Nr. | 2.4816 |
Inconel 600 | |
Ni | 72.0 minimum |
Fe | 6.0-10.0 |
Cr | 14.0-17.0 |
Cu | 0.5 maximum |
C | 0.15 maximum |
Mn | 1.0 maximum |
S | 0.015 maximum |
Si | 0.05 maximum |
Inconel 600 Orifice Flanges
Inconel 600 Spectacle Flange
Inconel 600 Socket Weld Flanges
Inconel 600 Slip On Flanges
Inconel 600 Reducing Flanges

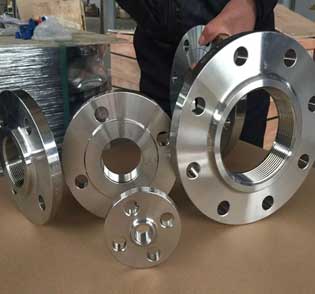

Inconel 600 Weld Neck Flanges

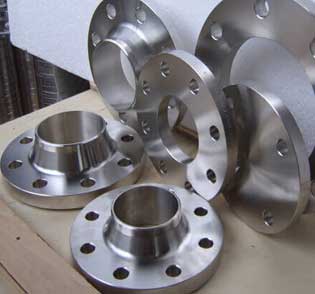

Inconel 600 Blind Flanges
Inconel 600 Flat Face Flanges
Inconel 600 RTJ Flanges
Inconel 600 Raised Face Flanges
Density | 8.47 g/cm3 |
Melting Point | 1413 °C (2580 °F) |
Tensile Strength | Psi – 95,000 , MPa – 655 |
Yield Strength (0.2%Offset) | Psi – 45,000 , MPa – 310 |
Elongation | 40 % |
