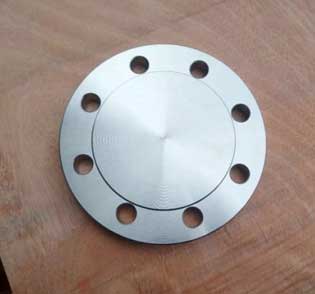

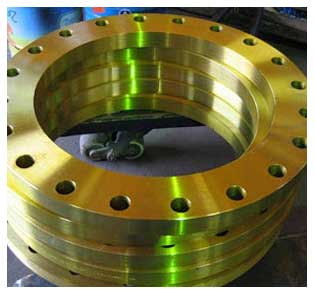

| Specification : | ASME B16.5 Flat Face Flange |
| Design For Size: | ASA, ASME, DIN, PN, JIS, ANSI, BS, EN |
| ASME B16.5 Application: | Nuclear Power Plant Natural Gas Industry Chemical Industry Water Pipeline Industry Fabrication Industry Oil And Gas Industry |
| Connect Type Type: | RF, FF, RTJ, LMF, SMF, LJF. |
| ASA Size Chart : | 1/2″ (15 NB) To 48″ (1200NB) |
| Standards : | ASME B16.5, ASME B16.38, EN-1092, BS10, DIN, PN, JIS, ASME B16.47 (Series A, Series B), ISO, GOST, UNI, AWWA, MSS SP44. |
| Pressure Rating Table: | Class 150 LBS, Class 300 LBS, Class 600 LBS, Class 900 LBS, Class 1500 LBS, Class 2500 LBS |
| Machining Equipment: | Bending machine, Sand-blasting machine, Press machine, Pushing Machine, electric bevelling machine etc |
| Production Process: | Forged, Heat Treated and Machined |
| Coating Flanges Faces : | Yellow Transparent, Anti-rust Paint, Cold and Hot Dip Galvanized, Oil Black Paint, Zinc Plated |

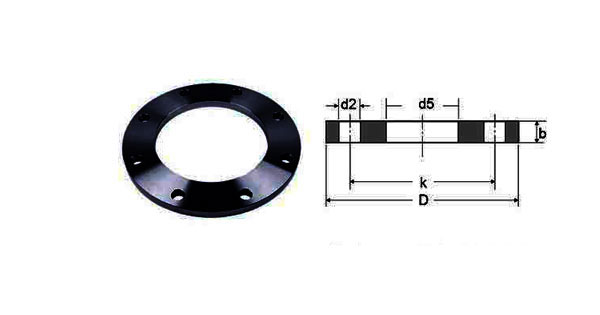

| NPS | Diameter of Pipe | Flange I.Diameter | NUmber of holes | Flange Diameter | Thickness of Flange | Diameter of Bolt Circle | Diameter of Bolt Holes | Approx. Weight | |
| DN | ISO | DIN | D5 | BN | D | b | K | d2 | KG/PCS |
| 10 | – | 14 | 14.5 | 4 | 90 | 16 | 60 | 14 | 0.7 |
| 17.2 | – | 17.7 | 4 | 90 | 16 | 60 | 14 | 0.69 | |
| 15 | – | 20 | 21 | 4 | 95 | 16 | 65 | 14 | 0.77 |
| 21.3 | – | 22 | 4 | 95 | 16 | 65 | 14 | 0.77 | |
| 20 | – | 25 | 26 | 4 | 105 | 18 | 75 | 14 | 1.06 |
| 26.9 | – | 27.6 | 4 | 105 | 18 | 75 | 14 | 1.05 | |
| 25 | – | 30 | 31 | 4 | 115 | 18 | 85 | 14 | 1.27 |
| 33.7 | – | 34.4 | 4 | 115 | 18 | 85 | 14 | 1.25 | |
| 32 | – | 38 | 39 | 4 | 140 | 18 | 100 | 18 | 1.86 |
| 42.4 | – | 43.1 | 4 | 140 | 18 | 100 | 18 | 1.83 | |
| 40 | – | 44.5 | 45.5 | 4 | 150 | 18 | 110 | 18 | 2.12 |
| 48.3 | – | 49 | 4 | 150 | 18 | 110 | 18 | 2.09 | |
| 50 | – | 57 | 58.1 | 4 | 165 | 20 | 125 | 18 | 2.78 |
| 60.3 | – | 61.1 | 4 | 165 | 20 | 125 | 18 | 2.74 | |
| 65 | 76.1 | – | 77.1 | 8 | 185 | 22 | 145 | 18 | 3.48 |
| 80 | 88.9 | – | 90.3 | 8 | 200 | 24 | 160 | 18 | 4.33 |
| 100 | – | 108 | 109.6 | 8 | 235 | 24 | 190 | 22 | 5.82 |
| 114.3 | – | 115.9 | 8 | 235 | 24 | 190 | 22 | 5.61 | |
| 125 | – | 133 | 134.8 | 8 | 270 | 26 | 220 | 26 | 7.91 |
| 139.7 | – | 141.6 | 8 | 270 | 26 | 220 | 26 | 7.6 | |
| 150 | – | 159 | 161.1 | 8 | 300 | 28 | 250 | 26 | 10.12 |
| 168.3 | – | 170.5 | 8 | 300 | 28 | 250 | 26 | 9.58 | |
| 175 | 193.7 | – | 196.1 | 12 | 350 | 32 | 295 | 30 | 14.45 |
| 200 | 219.1 | – | 221.8 | 12 | 375 | 34 | 320 | 30 | 16.9 |
| 250 | – | 267 | 270.2 | 12 | 450 | 38 | 385 | 33 | 27.28 |
| 273 | – | 276.2 | 12 | 450 | 38 | 385 | 33 | 26.51 | |
| 300 | 323.9 | – | 327.6 | 16 | 515 | 42 | 450 | 33 | 36.38 |
| 350 | 355.6 | – | 359.7 | 16 | 580 | 46 | 510 | 36 | 52.83 |
| – | 368 | 372.2 | 16 | 580 | 46 | 510 | 36 | 50.24 | |
| 400 | 406.4 | – | 411 | 16 | 660 | 50 | 585 | 39 | 74.71 |
| – | 419 | 423.7 | 16 | 660 | 50 | 585 | 39 | 71.44 | |
| 500 | 508 | – | 513.6 | 20 | 755 | 52 | 670 | 42 | 86.87 |
| 600 | 610 | – | 616.5 | 20 | 890 | 54 | 795 | 48 | 121.84 |
| 700 | 711 | – | 716 | 24 | 995 | 58 | 900 | 48 | 150.93 |
| 800 | 813 | – | 818 | 24 | 1140 | 64 | 1030 | 56 | 219.08 |
| 900 | 914 | – | 920 | 28 | 1250 | 70 | 1140 | 56 | 271.16 |
| 1000 | 1016 | – | 1022 | 28 | 1360 | 78 | 1250 | 56 | 344.95 |
Gost Cs Ct20 Forged Flat Flange Din 2576
ASTM A182 SS 400 Weld Neck Flat Face Flange
A182 Stainless Steel Flat Face Socket Weld Flange
12 Inch ANSI Standard Ring Type Gasket For Flat Face Flange
High Quality GOST Standard 12820 Threaded Flat Face Flange
Class 1500 Raised Face To Flat Face Flanges Adapter
AS 4087 F316 DN65 Raised Face To Flat Face Flanges Spacer
ASTM A182 F316L 150# Flat Face Slip On Flange
ANSI B16.5 Class 150 LB PN10 Flat Face Plate Flange
Weld Neck Flange FF Stainless Steel Flat Face Flange
ASME B16.5 Forged Steel Class 300 Hydraulic Flat Face Flange
EN1092-1 TYPE 01 304 600 Lb Flat Face Flange
| Dimensions | Base Material |
|---|---|
| ASME B16.47series A & B | ASTM A240 (Plate), ASTM A182 (Forgings) |
| API 605 | ASTM A240 (Plate), ASTM A182 (Forgings) |
| ASME B16.5 | ASTM A240 (Plate), ASTM A182 (Forgings) |
| BS4504 | ASTM A182 (Forgings), BS970 (Bar)ASTM A240 (Plate), |
| BS10 | ASTM A182 (Forgings), BS970 (Bar)ASTM A240 (Plate) |
| EN1092-1 | ASTM A182 (Forgings) |
