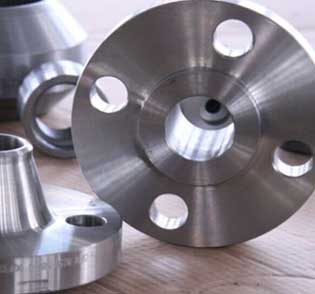

ASTM B564 Hastelloy C276 Flanges | UNS N10276 Alloy C276 Slip On Flange

ASME B16.5 Hastelloy C276 Flanges

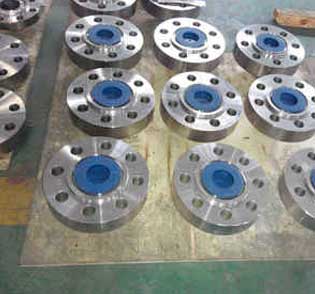

UNS N10276 Hastelloy Slip On Flange

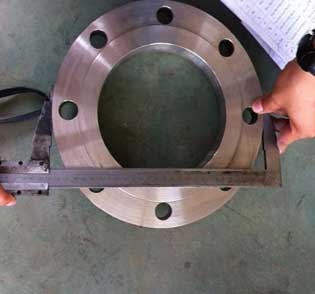

Hastelloy C276 Blind Flanges

ASME	Hastelloy C276 Flanges Pressure Rating
Temperature °F	Class 150	Class 300	Class 400	Class 600	Class 900	Class 1500	Class 2500
-20 to 100	275	720	960	1440	2160	3600	6000
200	230	600	800	1200	1800	3000	5000
300	205	540	720	1080	1620	2700	4500
400	190	495	660	995	1490	2485	4140
500	170	465	620	930	1395	2330	3880
600	140	435	580	875	1310	2185	3640
650	125	430	575	860	1290	2150	3580
700	110	425	565	850	1275	2125	3540
750	95	415	555	830	1245	2075	3460
800	80	405	540	805	1210	2015	3360
850	65	395	530	790	1190	1980	3300
900	50	390	520	780	1165	1945	3240
950	35	380	510	765	1145	1910	3180
1000	20	320	430	640	965	1605	2675
1050	20	310	410	615	925	1545	2570
1100	20	255	345	515	770	1285	2145
1150	20	200	265	400	595	995	1655
1200	20	155	205	310	465	770	1285
1250	20	115	150	225	340	565	945
1300	20	85	115	170	255	430	715
1350	20	60	80	125	185	310	515
1400	20	50	65	95	145	240	400
1450	15	35	45	70	105	170	285
1500	10	25	35	55	80	135	230

Specification :	Hastelloy C276 Flanges
Production Process:	Heat Treated, Machined, Forged
Coating Flange Faces :	Zinc Plated, Yellow Transparent, Anti-rust Paint, Cold and Hot Dip Galvanized, Oil Black Paint
Standards:	ISO Flanges, GOST Flanges, UNI Flanges, AWWA Flanges, MSS SP44 Flanges, ASME B16.5 Flanges, ASME B16.38 Flanges, EN-1092 Flanges, BS10 Flanges, DIN Flanges, PN Flanges, JIS Flanges, ASME B16.47 (Series A, Series B) Flanges
Pressure Rating Table:	Class 150 LBS, Class 300 LBS, Class 600 LBS, Class 900 LBS, Class 1500 LBS, Class 2500 LBS
Connect Type:	RF, FF, RTJ, LMF, SMF, LJF
Size Chart :	1/2″ (15 NB) To 48″ (1200NB)
Common Types of Flange :	Flanges 150 LB WNRF Class 300 RTJ 600# BLRF Class 900 SORF
Supporting Flange Material:	Gasket, Flange Bolts, Ring Joint
Application:	Nuclear Power Plant Chemical Industry Fabrication Industry Natural Gas Industry Oil And Gas Industry Water Pipeline Industry
Design For Size:	PN, DIN, JIS, ANSI, EN, ASA, ASME, BS
Flange Machining Equipment:	Bending machine, Pushing Machine, Sand-blasting machine, Press machine, electric bevelling machine etc

CLASS	NPS	Hastelloy C276 SORF Flange	Hastelloy C276 NPT Flange	Hastelloy C276 SW Flange	Hastelloy C276 Loose Flange	Hastelloy C276 BLRF Flange	Hastelloy C276 WN Flange
150#	½	1	1	2	1	2	2
	¾	2	2	2	2	2	2
	1	2	2	2	2	2	3
	1¼	3	3	3	3	3	3
	1½	3	3	3	3	4	4
	2	5	5	5	5	5	6
	2½	8	8	8	8	7	10
	3	9	9	9	9	9	11.5
	3½	11	12	11	11	13	12
	4	13	13	13	13	17	16.5
	5	15	15	15	15	20	21
	6	19	19	19	19	27	26
	8	30	30	30	30	47	42
	10	43	43	43	43	70	54
	12	64	64	64	64	123	88
	14	90	90	90	105	140	114
	16	106	98	98	140	180	140
	18	130	130	130	160	220	165
	20	165	165	165	195	285	197
	22	185	185	185	245	355	225
	24	220	220	220	275	430	268
CLASS	NPS	SORF	NPT Flanges	SW	Loose	BLRF	WN
300#	½	2	2	3	2	2	2
	¾	3	3	3	3	3	3
	1	3	3	3	3	4	4
	1¼	4.5	4.5	4	4.5	6	5
	1½	6.5	6.5	6	6.5	7	7
	2	7	7	7	7	8	9
	2½	10	10	10	10	12	12
	3	13	14	13	14.5	16	18
	3½	17	17	17	17	21	20
	4	23.5	24	22	24	28	26.5
	5	29	31	28	28	37	36
	6	39	39	39	39	50	45
	8	58	58	58	58	81	69
	10	81	81	81	91	124	100
	12	115	115	115	140	185	142
	14	165	165	165	190	250	206
	16	210	220	190	234	315	250
	18	253	280	250	305	414	320
	20	315	325	315	375	515	400
	22	370	370	370	435	640	465
	24	490	490	475	550	800	580
CLASS	NPS	SORF	NPT Flanges	SW	Loose	BLRF	WN
600#	½	2	2	2	2	3	3
	¾	3	3	3	3	4	4
	1	4	4	4	4	4	4
	1¼	5	5	5	5	6	6
	1½	7	7	7	7	8	8
	2	9	9	9	9	10	12
	2½	13	13	13	12	15	18
	3	16	16	16	15	20	23
	3½	21	21	21	20	29	26
	4	37	37	37	36	41	42
	5	63	63	63	63	68	68
	6	80	80	80	78	86	81
	8	115	15	15	112	140	120
	10	177	177	177	195	231	190
	12	215	215	215	240	295	226
	14	259	259	259	290	378	347
	16	366	366	366	400	527	481
	18	476	476	476	469	665	555
	20	612	612	612	604	855	690
	22	590	590	590	670	1000	720
	24	876	876	876	866	1250	977

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
Hastelloy C276	8.89 g/cm3	1370 °C (2500 °F)	Psi – 1,15,000 , MPa – 790	Psi – 52,000 , MPa – 355	40 %
