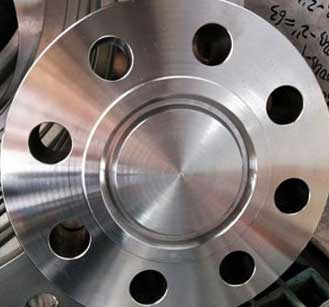

ASTM A694 F60 Flanges
A694 F60 Forged Fitting

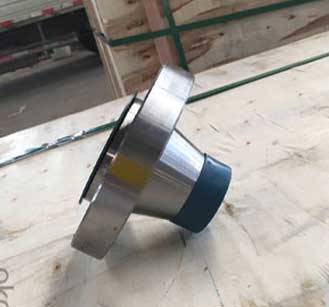

SA694 Gr F60 WNRF Flanges
| Chemical Composition | |
|---|---|
| Carbon [C] | ≤0.30 |
| Manganese [Mn] | ≤1.60 |
| Phosphorus [P] | ≤0.025 |
| Sulfur [S] | ≤0.025 |
| Silicon [Si] | 0.15-0.35 |
| Specification : | ASTM A694 F60 Flanges |
| Design For Size: | BS, PN, EN, ASA, ASME, DIN, JIS, ANSI |
| Flange Machining Equipment: | electric bevelling machine, Bending machine, Pushing Machine, Press machine, Sand-blasting machine etc |
| Size Chart : | 1/2″ (15 NB) To 48″ (1200NB) |
| Coating Flange Faces : | Cold and Hot Dip Galvanized, Zinc Plated, Yellow Transparent, Oil Black Paint, Anti-rust Paint |
| Dimensions Class: | 2000#, 3000#, 6000#, 9000# |
| Forged Type : | NPT (Threaded), BSPT, BSPP. |
| Pressure Rating Table: | Class 150 LBS, Class 300 LBS, Class 600 LBS, Class 900 LBS, Class 1500 LBS, Class 2500 LBS |
| Standards: | ASME B16.38 Flanges, EN-1092 Flanges, BS10 Flanges, DIN Flanges, PN Flanges, JIS Flanges, ISO Flanges, UNI Flanges, AWWA Flanges, MSS SP44 Flanges, ASME B16.5 Flanges, ASME B16.47 (Series A, Series B), GOST Flanges |
| Production Process: | Machined, Forged, Heat Treated |
| Application: | Natural Gas Industry Fabrication Industry Chemical Industry Nuclear Power Plant Water Pipeline Industry Oil And Gas Industry |
| Element | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Carbon Steel F60 | 515 | 415 | 20 % |
A694 CS Gr F60 Socket Weld Flanges
Grade F60 Carbon Steel Slip On Flanges
High Yield Carbon Steel F60 RTJ Flanges
Steel Grade F60 Raised Face Flanges
SA 694 F60 Blind Flanges
Carbon Steel A694 Grade F60 Flat Face Flanges
ASTM A694 Gr F60 Reducing Flanges
A694 F60 Weld Neck Flanges
Carbon Steel A694 F60 90 Deg Elbow
Carbon Steel ASME SA694 F60 Socket Weld Tee
ASME SA 694 F60 Threaded Union
ASTM A694 F60 Steel Threaded Hex Plug
| Curie temperature | 770 °C at 20 °C | Typical for Low Carbon Steel |
| Coefficient of thermal expansion | 1.32E-5 - 1.38E-5 1/K at 20 °C | Typical for Low CS |
| Max service temperature | 500 °C | Typical for CS |
| Melting point | 1480 - 1526 °C | Typical for Low CS |
| Temp. °C | ASTM A694 F60 Flanges Working Pressure Range | ||||||
|---|---|---|---|---|---|---|---|
| 150 | 300 | 400 | 600 | 900 | 1500 | 2500 | |
| -29 ~ 38 | 19.6 | 51.1 | 68.1 | 102.1 | 153.2 | 255.3 | 425.5 |
| 50 | 19.2 | 50.1 | 66.8 | 100.2 | 150.4 | 250.6 | 417.7 |
| 100 | 17.7 | 46.6 | 62.1 | 93.2 | 139.8 | 233.0 | 388.3 |
| 150 | 15.8 | 45.1 | 60.1 | 90.2 | 135.2 | 225.4 | 375.6 |
| 200 | 13.8 | 43.8 | 58.4 | 87.6 | 131.4 | 219.0 | 365.0 |
| 250 | 12.1 | 41.9 | 55.9 | 83.9 | 125.8 | 209.7 | 349.5 |
| 300 | 10.2 | 39.8 | 53.1 | 79.6 | 119.5 | 199.1 | 331.8 |
| 325 | 9.3 | 38.7 | 51.6 | 77.4 | 116.1 | 193.6 | 322.6 |
| 350 | 8.4 | 37.6 | 50.1 | 75.1 | 112.7 | 187.8 | 313.0 |
| 375 | 7.4 | 36.4 | 48.5 | 72.7 | 109.1 | 181.8 | 303.1 |
| 400 | 6.5 | 34.7 | 46.3 | 69.4 | 104.2 | 173.6 | 289.3 |
| 425 | 5.5 | 28.8 | 38.4 | 57.5 | 86.3 | 143.8 | 239.7 |
| 450 | 4.6 | 23.0 | 30.7 | 46.0 | 69.0 | 115.0 | 191.7 |
| 475 | 3.7 | 17.4 | 23.2 | 34.9 | 52.3 | 87.2 | 145.3 |
| 500 | 2.8 | 11.8 | 15.7 | 23.5 | 35.3 | 58.8 | 97.9 |
| 538 | 1.4 | 5.9 | 7.9 | 11.8 | 17.7 | 29.5 | 49.2 |
NPS |
Flanges (ID) (inch) |
Flanges (OD) (inch) |
||||
| 150# | 300# | 400# | 600# | 900# | ||
| 1/2 | 0.84 | 1.875 | 2.125 | 2.125 | 2.125 | 2.50 |
| 3/4 | 1.06 | 2.25 | 2.625 | 2.625 | 2.625 | 2.75 |
| 1 | 1.31 | 2.625 | 2.875 | 2.875 | 2.875 | 3.125 |
| 1 1/4 | 1.66 | 3 | 3.25 | 3.25 | 3.25 | 3.50 |
| 1 1/2 | 1.91 | 3.375 | 3.75 | 3.75 | 3.75 | 3.875 |
| 2 | 2.38 | 4.125 | 4.375 | 4.375 | 4.375 | 5.625 |
| 2 1/2 | 2.88 | 4.875 | 5.125 | 5.125 | 5.125 | 6.50 |
| 3 | 3.50 | 5.375 | 5.875 | 5.875 | 5.875 | 6.625 |
| 4 | 4.50 | 6.875 | 7.125 | 7.00 | 7.625 | 8.125 |
| 5 | 5.56 | 7.75 | 8.50 | 8.375 | 9.50 | 9.75 |
| 6 | 6.62 | 8.75 | 9.875 | 9.75 | 10.50 | 11.375 |
| 8 | 8.62 | 11 | 12.125 | 12.00 | 12.625 | 14.125 |
| 10 | 10.75 | 13.375 | 14.25 | 14.125 | 15.75 | 17.125 |
| 12 | 12.75 | 16.125 | 16.625 | 16.50 | 18.00 | 19.625 |
| Standard | Class | Di. | Bolt Circle Dia. | No. of Bolts | Bolt Size | Dia. of Bolt Hole |
|---|---|---|---|---|---|---|
| AS4087 | PN14 | 95 | 67 | 4 | M12 | 14 |
| 2129 Flange | Table C | 95 | 67 | 4 | 13 | 14 |
| Table D | 95 | 67 | 4 | 13 | 14 | |
| Table E | 95 | 67 | 4 | 13 | 14 | |
| Table F | 95 | 67 | 4 | 13 | 14 | |
| Table H | 114 | 83 | 4 | 16 | 17 | |
| Table J | 114 | 83 | 4 | 16 | 17 | |
| ASME B16.5 Flanges | ANSI 150 | 89 | 60 | 4 | 13 | 16 |
| ANSI 300 | 95 | 67 | 4 | 13 | 16 | |
| ANSI 600 | 95 | 67 | 4 | 13 | 16 | |
| ANSI 900 | 121 | 83 | 4 | 19 | 22 | |
| ANSI 1500 | 121 | 83 | 4 | 19 | 22 | |
| ISO 7005 (DIN) Flange | PN6 | 80 | 55 | 4 | M10 | 11 |
| PN10 | 95 | 65 | 4 | M12 | 14 | |
| PN16 | 95 | 65 | 4 | M12 | 14 | |
| PN20 | 90 | 60.5 | 4 | M14 | 16 | |
| PN25 | 95 | 65 | 4 | M12 | 14 | |
| PN40 | 95 | 65 | 4 | M12 | 14 |
